Positioning your projector18
Projection dimensions
Refer to "Dimensions" on page 93 for the center of lens dimensions of this projector
before calculating the appropriate position.
MX768
For example, If you are using the MX768 and a 200-inch screen, the projection distance is
7417 mm and with a vertical offset of 457 mm.
If you are using the MX768 and your measured projection distance is 5.5 m (5500 mm), the
closest match in the "Distance from screen (mm)" column is 5563 mm. Looking across this
row shows that a 150'' (about 3810 mm) screen is required.

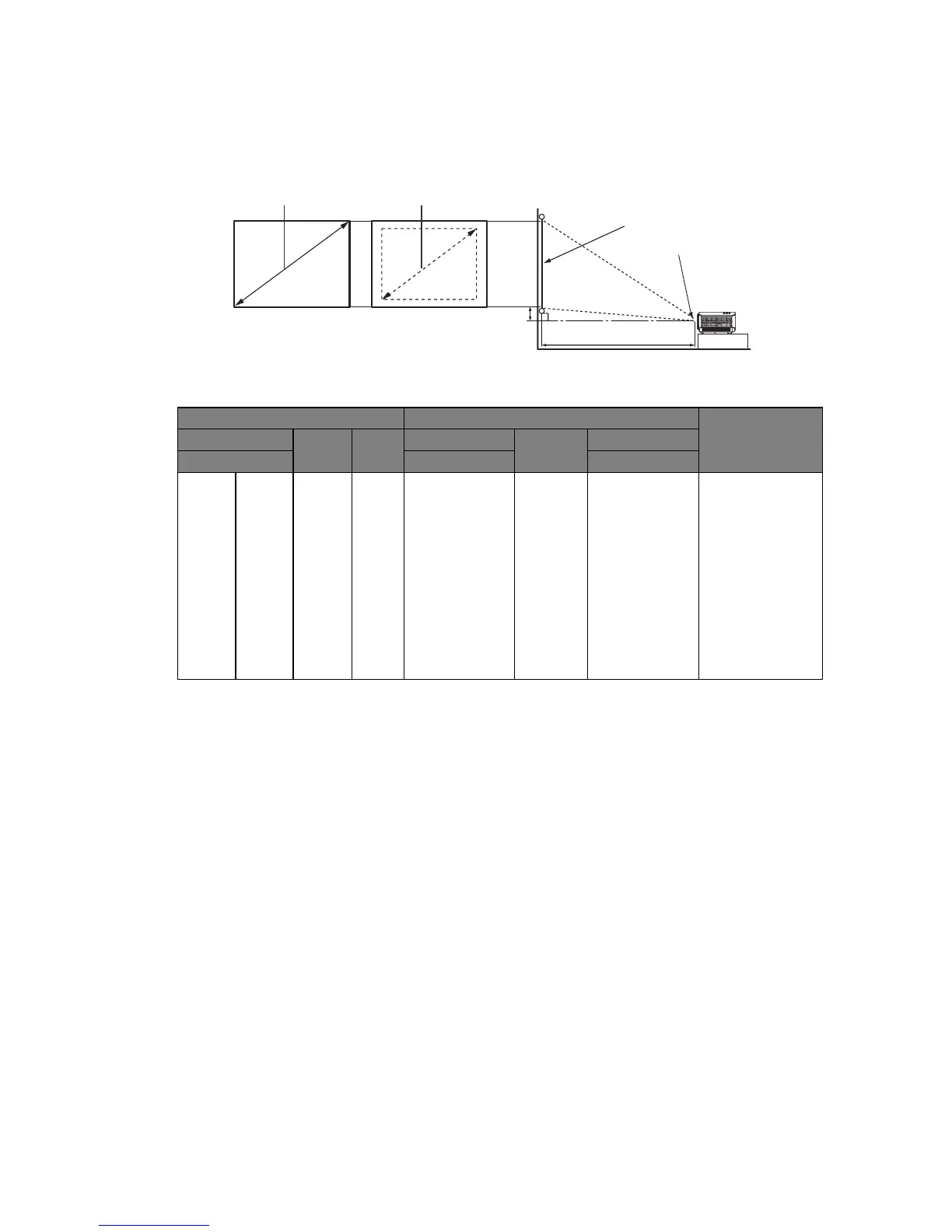

Screen size Distance from screen (mm) Vertical offset
(mm)
Diagonal W
(mm)
H
(mm)
Min length
Average
Max length
Inch mm (max. zoom) (min. zoom)
30 762 610 457 847 1113 1378 69
40 1016 813 610 1130 1483 1837 91
60 1524 1219 914 1695 2225 2755 137
80 2032 1626 1219 2260 2967 3674 183
100 2540 2032 1524 2824 3708 4592 229
120 3048 2438 1829 3389 4450 5511 274
150 3810 3048 2286 4237 5563 6888 343
200 5080 4064 3048 5649 7417 9185 457
250 6350 5080 3810 7061 9271 11481 572
300 7620 6096 4572 8473 11125 13777 686
Maximum zoom
Minimum zoom
Projection distance
Center of lens
Screen
Vertical offset
