FAULT status
Faults are signalled by:
Ø the FAULT LED (ON);
Ø the FAULT type LED (MAIN - LOW BATTERY - BATTERY FAULT -
GROUND - FUSES - LOGIC UNIT - ADDRESS - SAME ADDRESS);
Ø a FAULT message on the control panel and Repeater displays (see figure 2);
Ø an acoustic signal (0.5 sec. sound - 0.5 sec. pause) on the control panel
and Repeater buzzers;
Ø the Output Points programmed as FAULT Outputs;
Ø the FC200/COM Telecom Module ---- that when properly programmed will
call the programmed telephone numbers..
The FAULT message (see figure 2)
First FAULT This will show the Identifier (initials or abbreviation) of the first FAULT.
If the first FAULT is generated by a LOOP Device it will show:
Ø the number 1;
Ø the Device type (S = Sensor or M = Module);
Ø the Device address (01 through 99 or ZC = Conventional Zone).
If the first FAULT is generated by a NON-LOOP Device it will show:
Ø GEN. - a general FAULT (MAIN, LOW BATTERY etc.).
Last FAULT As above but for the most recent FAULT.
Total FAULTS The total number of FAULTS since the last RESET.
Up/Down move
Use the ↑ or ↓ key to scroll the Identifiers of all the FAULTS logged after
the last RESET.
Press ESC to access the logger and view the most recent FAULT (see the
"Logger" paragraph).
Silence Press the SILENCE button to force the Silenceable FAULT Outputs into
standby status (this will also silence the buzzers).

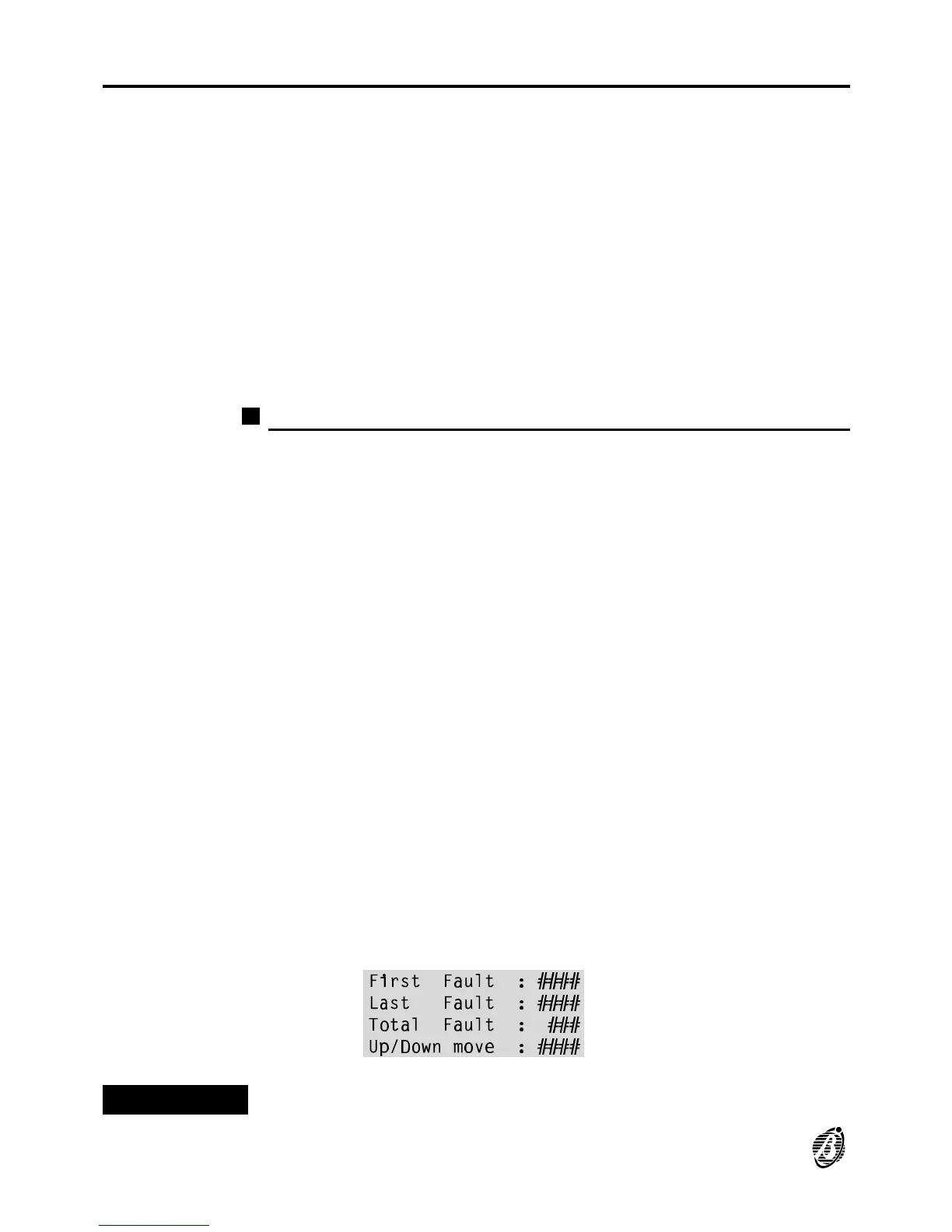

Figure 2
12 Analogue Fire Control Panel FireClass100
