Ø blinking on the ALARM and PREALARM LEDs (3 sec. ON - 1 sec. OFF);
Ø blinking on the LEDs associated to the Input Point Software Zone (3 sec.
ON - 1 sec. OFF);
Ø an intermittent sound (3 sec. sound - 1 sec. pause) on the fire control panel
and Repeater buzzers;
Ø the Output Points programmed as Prealarm Outputs;
Ø the FC200/COM Telecom Module ---- that when properly programmed will
call the programmed telephone numbers.
During the PREALARM status the User can SILENCE or RESET the sy-
stem, and also View the Logger.
ALARM status The ALARM status signals the activation of the programmed Output
Points, and will be generated by ALARM status on at least one Input Point.
The ALARM status is signalled by:
Ø the ALARM LED (ON);
Ø the LEDs associated to the Software Zones of the Input Points;
Ø the message (see figure 3) on the control panel and Repeater displays;
Ø an intermittent sound (0,2 sec. sound - 0,2 sec. pause) on the fire control
panel and Repeater buzzers;
Ø the Output Points programmed as Alarm Outputs;
Ø the FC200/COM Telecom Module ---- that when properly programmed will
call the programmed telephone numbers.

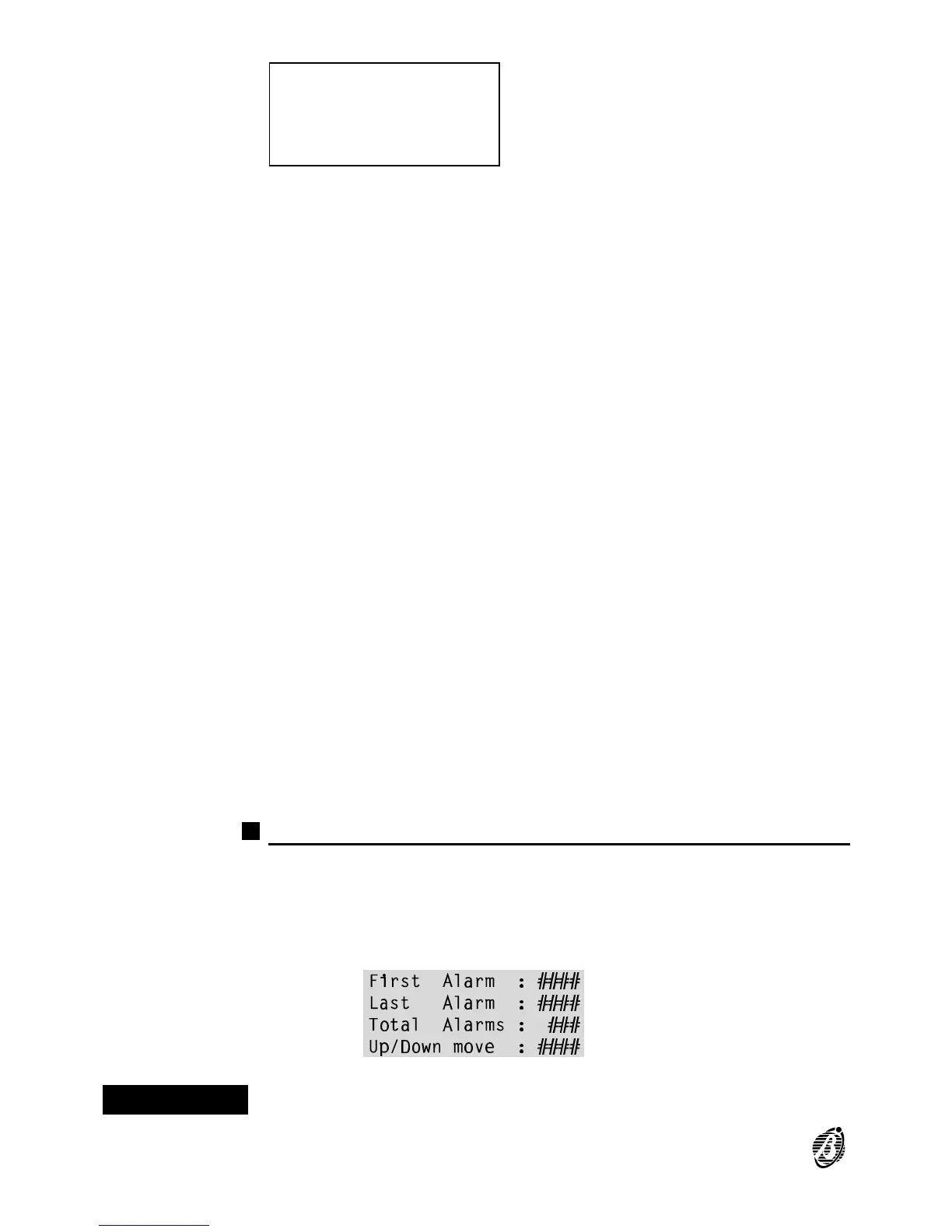

The ALARM message (see figure 3)
First Alarm This will the Identifier (initials or an abbreviation) of the first ALARM.
If the first ALARM is generated by a LOOP Device it will show:
Ø the number 1;
Panel
in
PREALARM
state !
Figure 3
14 Analogue Fire Control Panel FireClass100
