When servicing or replacing components that affect combustion, analyses and soot tests must be carried
out on the installation.

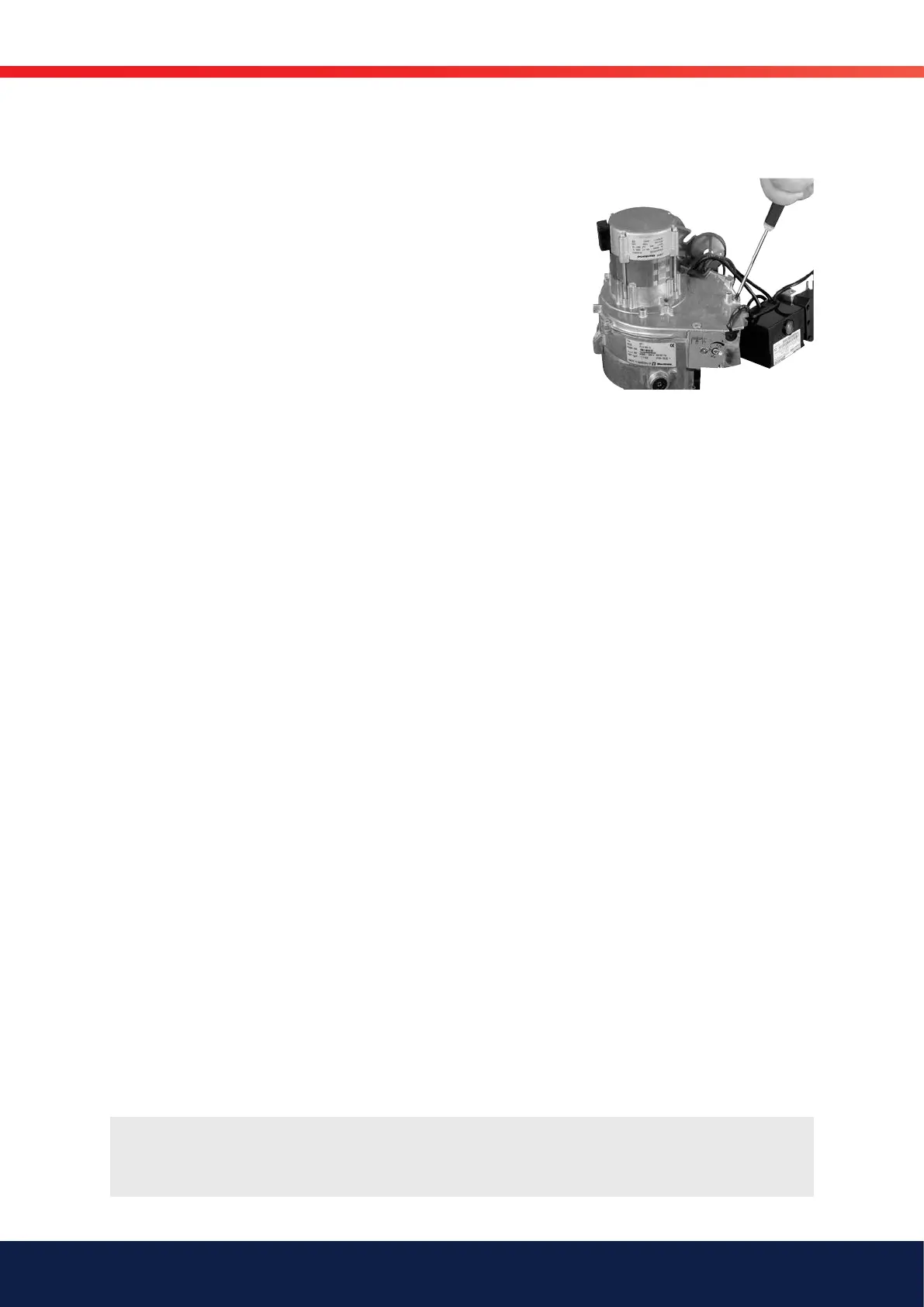

4.1.8.1 Replacement of complete electrical package
1. Switch off the main power and disconnect the 7-pole Euro plug from
the burner.
2. If so desired, service position 2 may be used.
3. Disconnect the electrical contact to the motor, damper motor and the
4-pole Euro plug to the second-stage thermostat.
4. Remove the cover of the 4-pole Euro plug to the second-stage
thermostat and remove it from its attachment.
5. Remove the electrical box retaining screw.
6. Remove the cable conduit entry to the ignition electrodes and the
preheater (where fitted) and remove the photocell cable from the
motor flange.
7. Install the new electrical package.
8. Place the cable conduit entry and the photocell cable in position.
9. Screw the electrical box in place.
10. Fit the 4-pole Euro plug to the second-stage thermostat in its
attachment and fit the cover to it.
11. Connect the motor cable, damper motor and the 4-pole Euro plug to
the second-stage thermostat.
12. Assemble the fan housing and burner front piece.
13. Connect the 7-pole Euro plug and turn on the mains power.
14. Start the burner and check the combustion.
4.1.8.2 Replacement of individual electrical components
1. Switch off the main power and disconnect the 7-pole Euro plug from
the burner.
2. If so desired, service position 2 may be used.
3. Remove the oil burner control.
4. Disconnect the wires to the components that are to be replaced.
5. Insert the new wires.
6. Install the oil burner control.
7. Assemble the fan housing and burner front piece.
8. Connect the 7-pole Euro plug and turn on the mains power.
9. Start the burner and check the combustion.
