Bentone BF1
General
3
4
5
7
89
10
6
2
1
Standard model
Solenoid valve
with cut-off
Gear set capacity
(see pump capacity curves)
Shaft rotation and nozzle location
C: Motor rotation
Oil flow connection point to the nozzle
on the left side (viewed from shaft end)
C
45
AT
2
Return plug
5. PUMP INSTRUCTIONS
5.1 Suntec AT2 45C
5.1.1 Technical data
Viscosity range: 2,0-12 mm
2
/s
Pressure range: 8-25 bar
Rated voltage of coil: 220/240V
50/60 Hz
Oil temperature: max 60°C
Exchange of filter

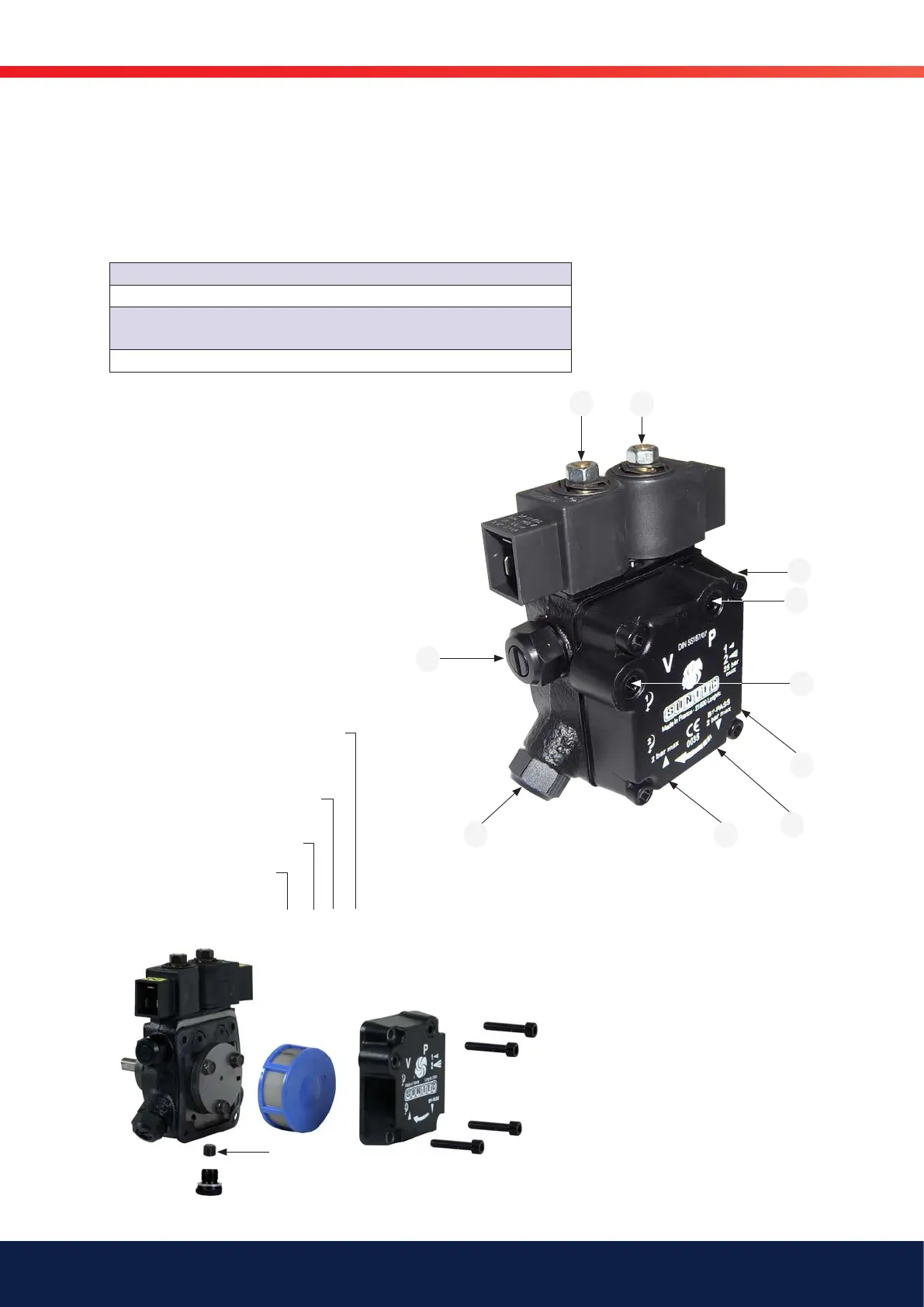

5.1.2 Components
1. Solenoid valve Stage 2
2. Solenoid valve Stage 1
3. Nozzle outlet G 1/8
4. Pressure gauge port G 1/8”
5. Vacuum gauge port G 1/8”
6. Pressure gauge port G 1/8”
(Pressure measurement)
7. Return line G 1/4”
and internal by-pass plug
8. Suction line G 1/4”
9. Pressure adjustment Stage 2
10. Pressure adjustment Stage 1
