18

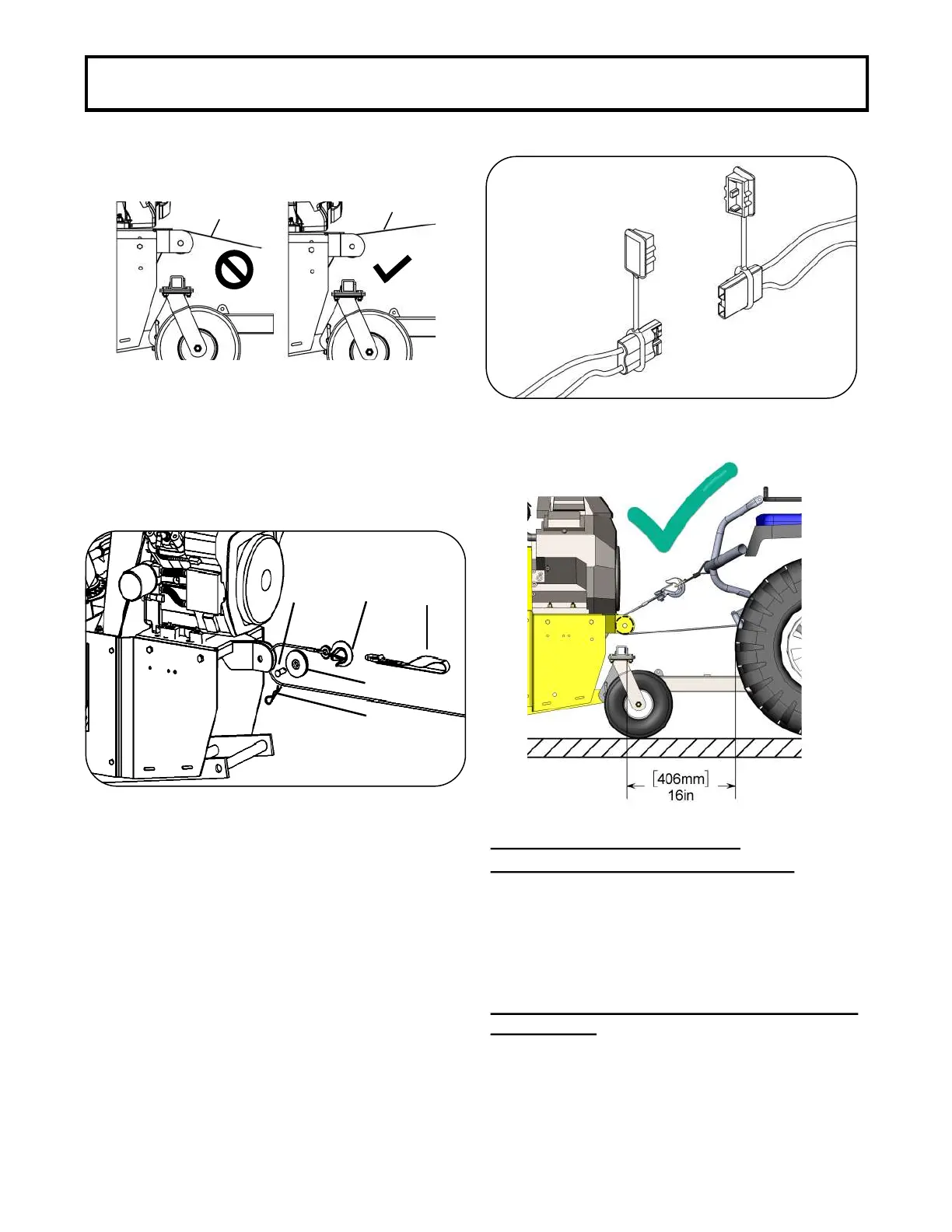

6. In the case the winch is not strong enough to lift
the snowblower or if the top of the pulley is higher
than the winch, it is possible to install the lift
system as follows:
Attach the lift strap (optional) to a well
anchored part of the vehicle. Secure the winch
hook in the lift strap. Place the winch
cable around the pulley . Secure the pulley
in place with a pin and a hair pin .
Some winches are very powerful. Using these
winches could cause breakage in the sub-frame. This
is caused by the operator continues to operate the
winch when the blower comes into contact with the
sub-frame during lifting. In addition, the angle at
which arrives winch and the amount of cable on the
winch, also have an influence .
We recommend:
• Stop the winch as soon as contact is made
between the blower and the chassis
• To buy and install the lift limit switch #700849
If your winch is a capacity greater than
2500lbs
If capacity is lower than 2500lbs, but you find
that the winch tries to twist the sub-frame
Make sure that the winch cable
does not pull downwards to prevent
damages of the engine support and the pivoting
wheels.
When the vehicle is advancing in a straight line,
make sure the wheels of the subframe do not come
into contact with the wheels of the vehicle.
When the snowblower is raised to its maximum,
make sure the snowblower engine does not come
into contact with the vehicle.
Verify and adjust the pressure of the tires of the
subframe at 50 psi.
The tire pressure must be even on both sides.
Wire assembly
7. Plug the electrical wiring of the snowblower.
