Berges ACP micro 3000 - Dimensional Data (Size I)

Berges electronic • D–51709 Marienheide-Rodt • Tel. 02264/17-0 • Fax 02264/17126
Operating manual 21.12.98
ACP 3000 — 0.37–15.0 04_GB
8

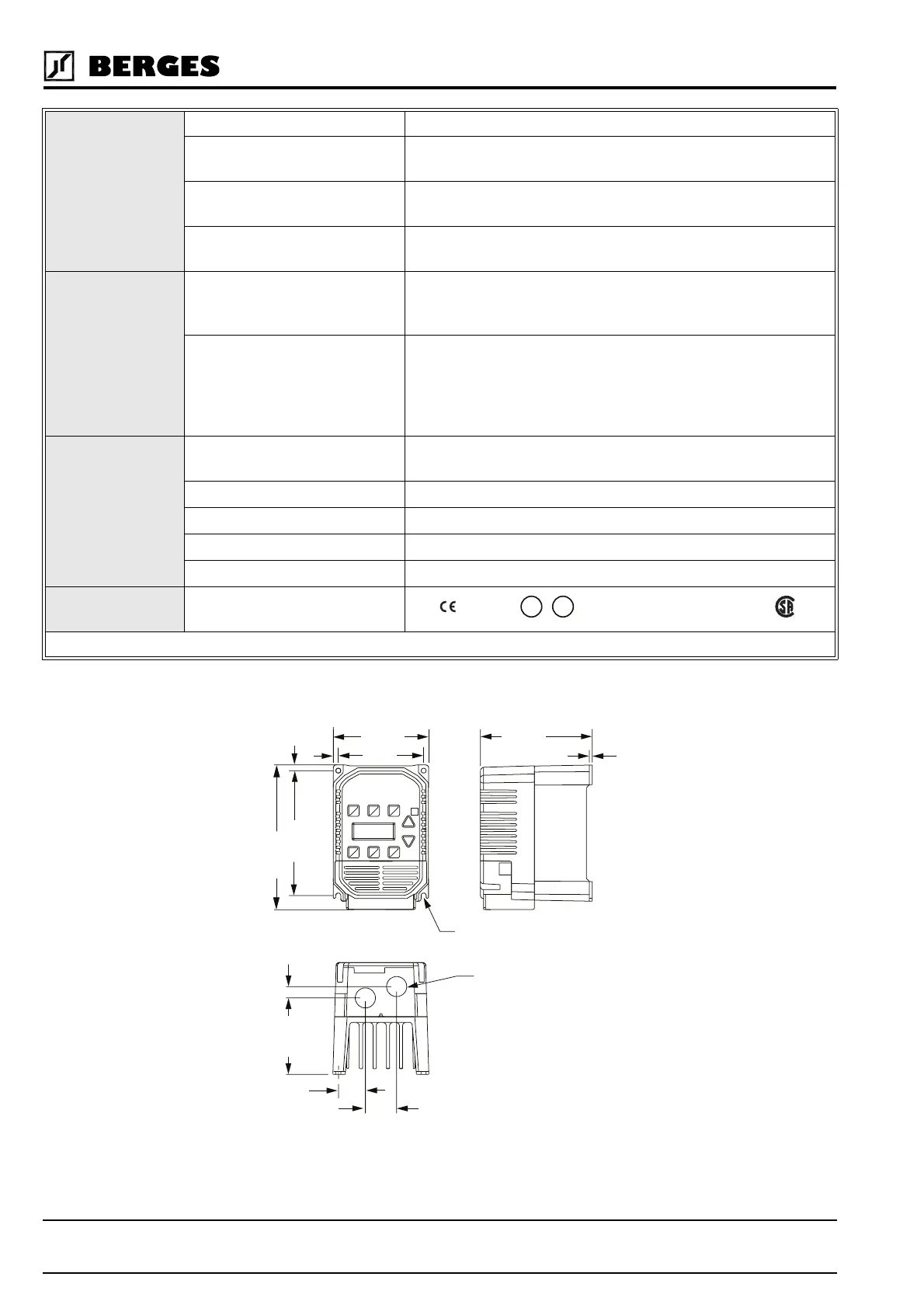

2.4 Dimensional Data (Size I)
Operating
Features
LED Indicators Red and Green for operation and fault annunciation
Keypad Display 6 digit, backlit LCD with special annunciators
and unit symbols
Auxiliary Relay Programmable analog output;
programmable status signalling relay
Programming Levels Level 1 – Operator
Level 2 – Engineer
Inputs/Outputs Inputs 6 Digital: Pull-up or pull-down logic
2 Analog: VIN1 Current or voltage;
VIN2 Voltage only
Outputs 2 Digital: 1 Open collector (internal or external power supply)
up to 24 VDC;
1 Relay (Form C)
2 Analog: MET1 (0 to 10 VDC);
MET2 (0/4 to 20 mA DC)
Ambient
Conditions
Operating Temperature 0 °C to +40 °C (IP 21 models)
0 °C to +50 °C (with detached cover)
Storage temperature -20 °C to +60 °C
Humidity 90% RH or less, non-condensing
Vibration 0.6 G Maximum
Elevation 1000 Meters (3,300 Feet) without derating
UL-/CSA-
Certifications
Agency Listings
Marked, UL/cUL listed, CSA-certified
Table 2.3
U
L
®
U
L
C
®
®
∅ 22
∅ 5.5
34
30
84
12
159
137
5
6
105
94
123
3
Size for devices:
ACP 3300-3 (230 V)
ACP 3300-5 (230 V)
ACP 3600-7 (400 V)
Weight: 1.4 kg
I
