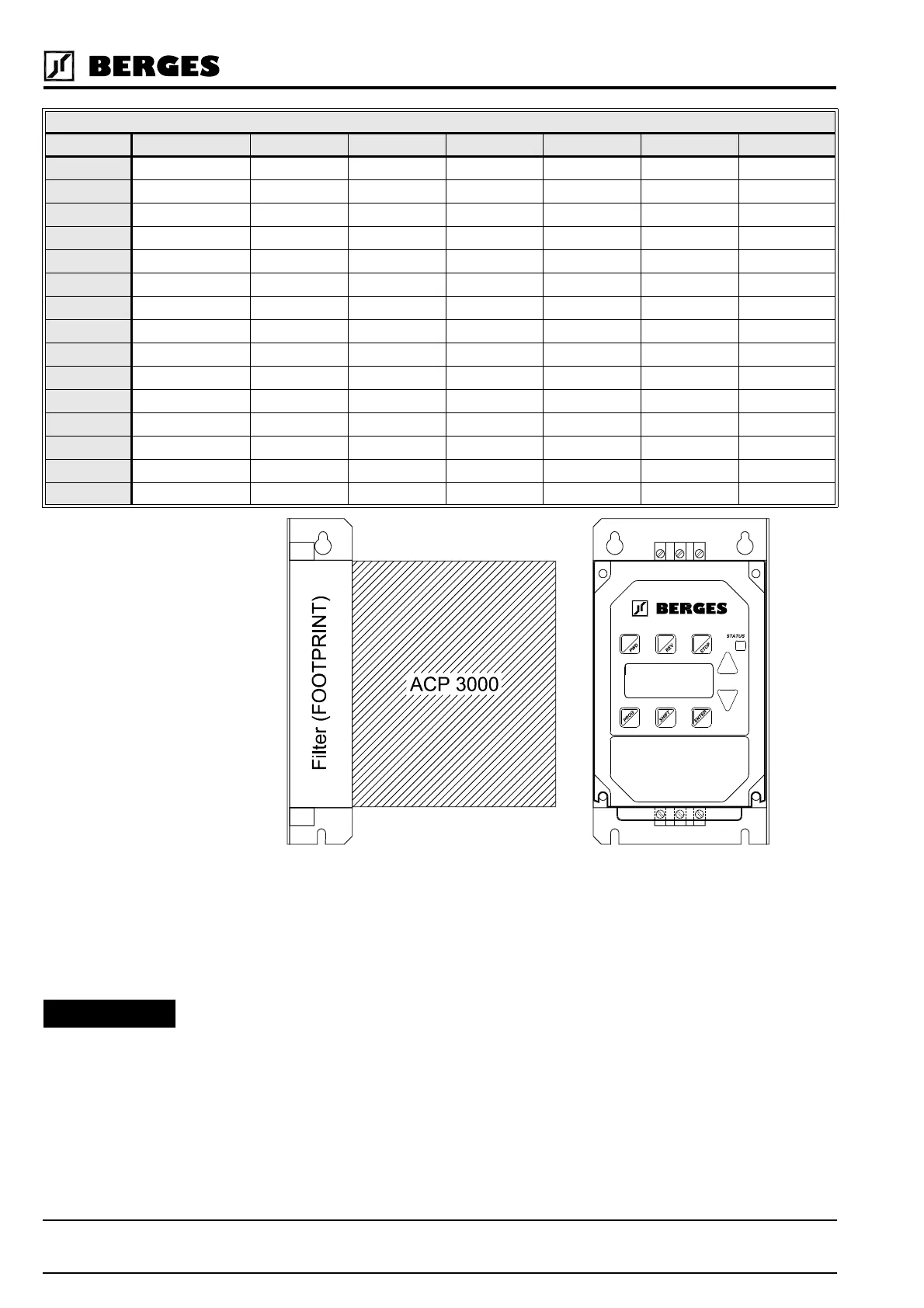

3.3.3 Filter Specifications

All BERGES line filters are provided in IP20 enclosures. They can operate over a temper-

ature range of -10 to +50 °C (-23 to +122 °F). The filters can be mounted parallel or per-

pendicular to the control panel. The filter is supplied with the correct mounting hardware for

mounting the inverter on top of the filter enclosure (Footprint).

The mains filters and chokes must be installed and connected in conformity with the rec-

ommendations given in chapters 3.3.1 (page 12), 3.3.4 (page 15) and 3.6.3 (page 22).

ACP 3000

DEVICE TYPE CHOKE ARTICLE NO. INPUT PHASES VOLTAGE (V) CURRENT (A) WEIGHT (kg) FOOTPRINT

ACP 3300-3 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3300-5 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3300-7 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3301-1 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3301-5 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3302-2 BV 20394/313 32501346 – 440 13 0.70 –

ACP 3600-7 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3601-5 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3602-2 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3603-0 BV 20394/307 32501345 – 440 7 0.25 –

ACP 3604-0 BV 20394/313 32501346 – 440 13 0.70 –

ACP 3605-5 BV 20394/313 32501346 – 440 13 0.70 –

ACP 3607-5 BV 20394/325 32501347 – 440 25 1.10 –

ACP 3611-0 BV 20394/325 32501347 – 440 25 1.10 –

ACP 3615-0 BV 20394/330 32501348 – 440 30 1.15 –
