For mains supplies with rated voltage exceeding 415 V the semi-lag fuses type “Bussmann
FRS-R” are recommended. The typical disconnection times are 150–250 sec. for 2 times
the overcurrent and 180–1500 msec. for 10 times the overcurrent.
3.6.3 Using Mains Filters
Special protective measures must be observed when using mains filters:
Owing to the leakage current involved (>3.5 mA), attention must be paid to EN 50178 when
using BERGES mains filters. One of the following protective measures must be taken:
• The mains filter must be connected separately by laying a second cable that is electri-
cally parallel with the PE conductor; this conductor must meet the requirements of IEC
364-5-543 on its own.
• The PE conductor must have a cross section of at least 10 mm
2
(refer to the following
diagrams).
• The PE conductor must be monitored by a facility that isolates the inverter from the
mains in the event of a fault (PE conductor monitoring).
The inverter must always be connected permanently (EN 50178) when using mains
filters (leakage current >3.5 mA).

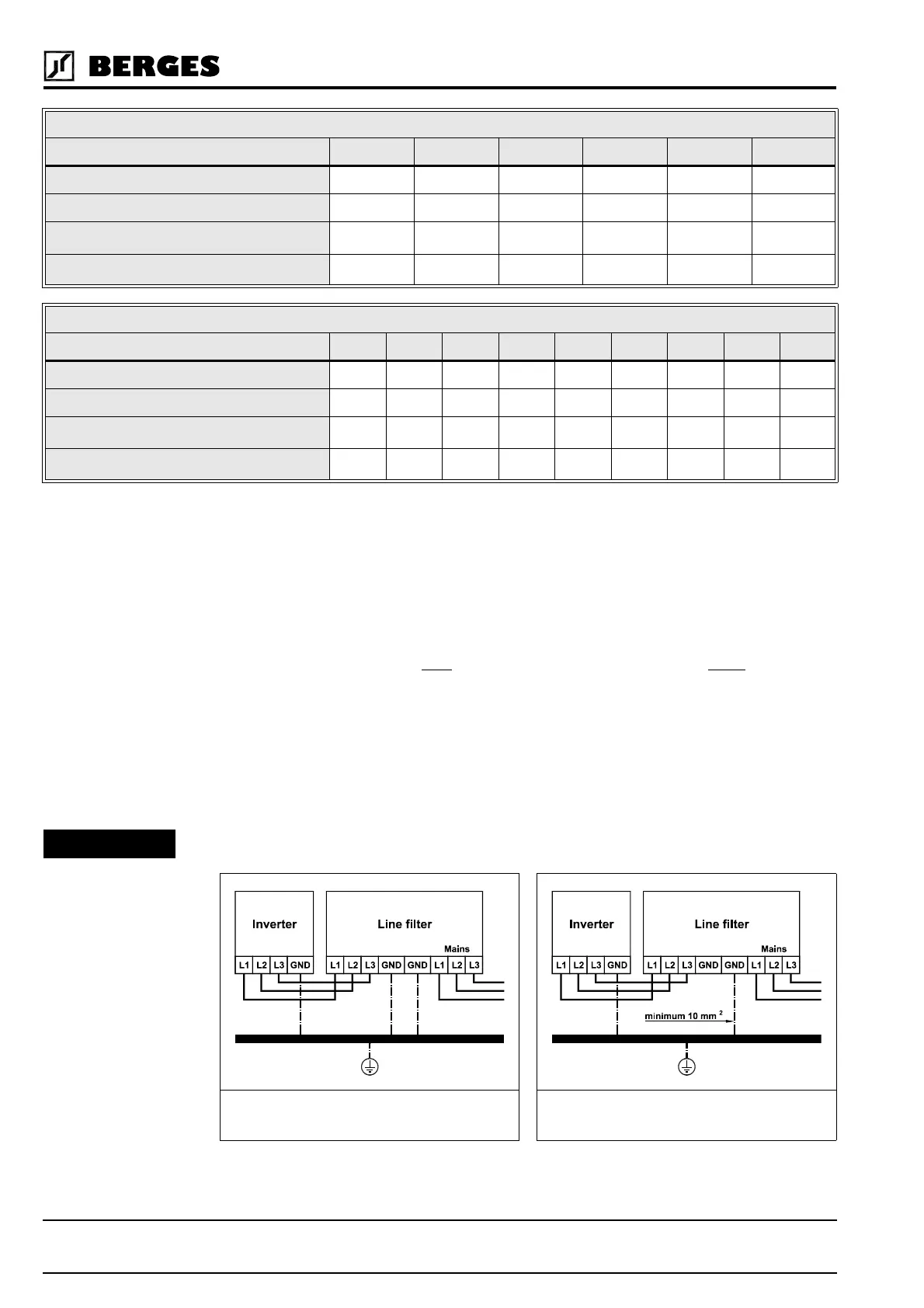

SUPPLY VOLTAGE 1 × 230 VAC
Type 3300-3 3300-5 3300-7 3301-1 3301-5 3302-2
Inverter power (kW) 0.37 0.55 0.75 1.1 1.5 2.2
Rated current, fuse (A) 4 6 6 10 10 16
Cable cross section, mains lead (mm
2
)
1.5 1.5 1.5 1.5 1.5 2.5
Cable cross section, motor lead (mm
2
)
1.5 1.5 1.5 1.5 1.5 1.5
SUPPLY VOLTAGE 3 × 400 VAC
Type 3600-7 3601-5 3602-2 3603-0 3604-0 3605-5 3607-5 3611-0 3615-0
Inverter power (kW) 0.75 1.5 2.2 3.0 4.0 5.5 7.5 11.0 15.0
Rated current, fuse (A) 2 4 6 6 10 16 16 25 32
Cable cross section, mains lead (mm
2
)
1.5 1.5 1.5 1.5 1.5 2.5 2.5 4 6
Cable cross section, motor lead (mm
2
)
1.5 1.5 1.5 1.5 1.5 1.5 2.5 4 6
Mains filter connection with a second
parallel PE conductor
Mains filter connection with at least
10 mm
2
PE conductor cross section
ATTENTION!
