8 Troubleshooting
8.1 Special Indications

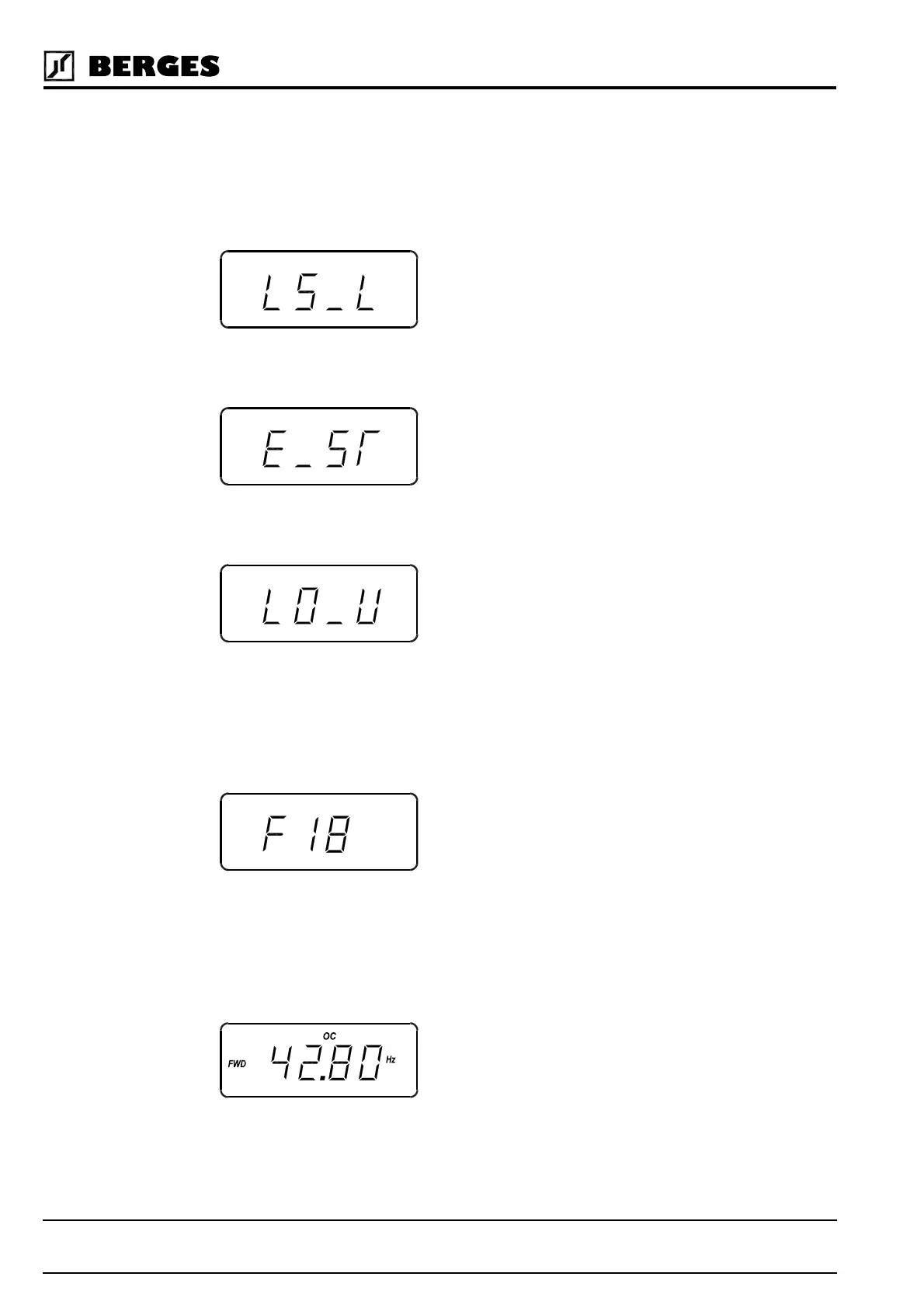

In addition to the standard operation and programming displays several special displays
may appear:
8.2 Fault Trip Indications
In the event of a fault trip, the STATUS indicator will begin to blink red (See section 4.6,
page 32 and the display will show the fault code and cause as shown in Figure 8.4.
Pressing the UP arrow before the fault is reset will display the status of the drive at the time
of the fault as shown in Figure 8.5. Note that more than one annunciator may be displayed
to better define the cause of the fault. Additional information concerning the drive status at
the time of the fault is available by pressing the PRG key and viewing parameters 12
through 17.
Line Start Lockout.
See
82-START
, page 48.
Figure 8.1
Emergency Stop.
See
82-START
, page 48.
Figure 8.2
Low Voltage.
AC line voltage is too low.
Figure 8.3
Figure 8.4
Figure 8.5
