IMPORTANT NOTE: THE SENSOR MUST ALWAYS BE COMPLETELY FULL OF LIQUID!
To ensure that the sensor is always completely filled with liquid, it is important to install it in the correct position
(
) and avoid all possible incorrect positions ( ).
We recommend installing the sensor on a vertical/sloped pipe with an upward flow direction (Fig. 19) to minimize
the wear and deposits in the sensor. Avoid the installation on vertical pipes with free exit (Fig. 20).
This installation secures the sensor full of liquid. This installation DOES NOT guarantee a
pipe full of liquid.

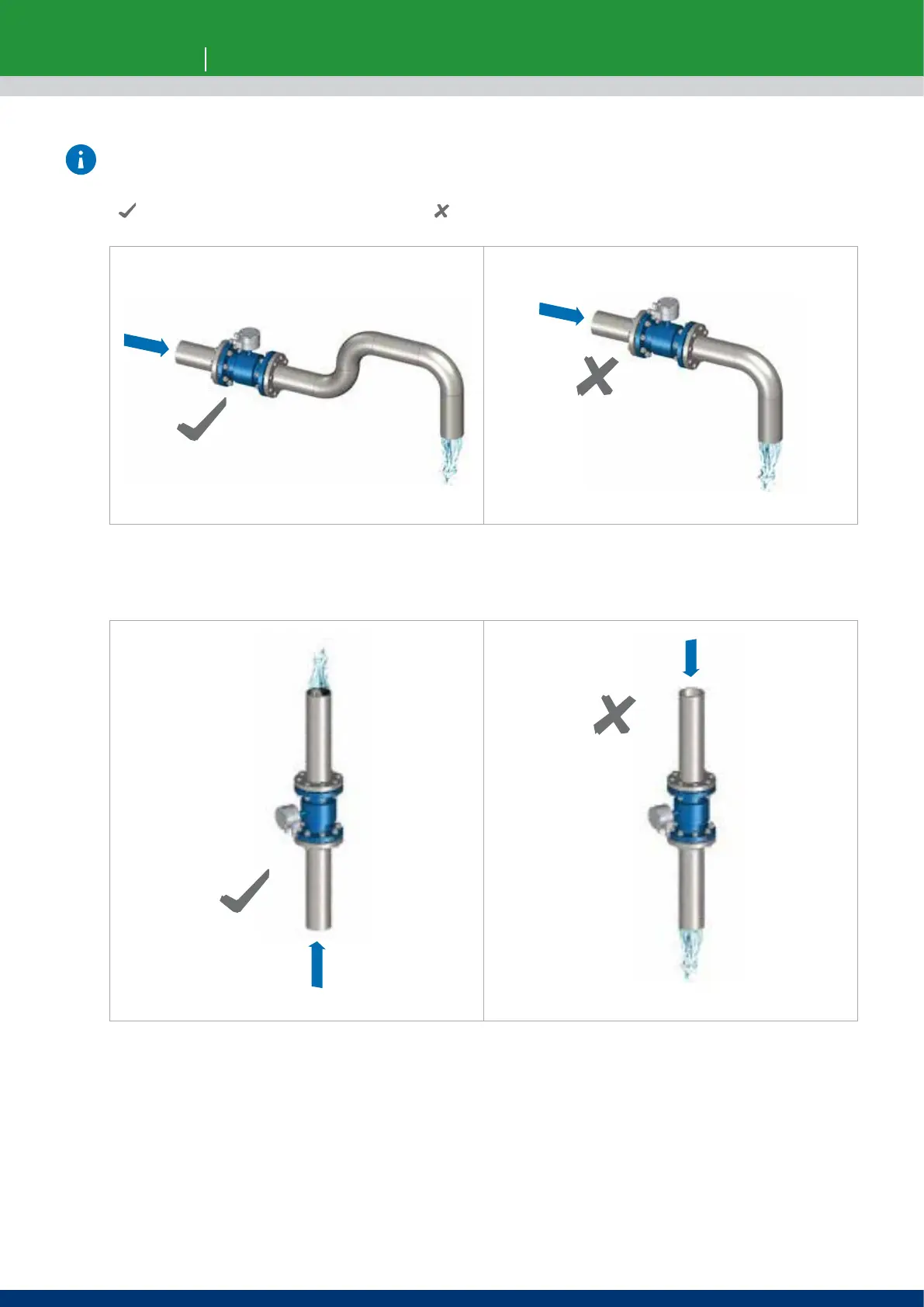

Fig. 17 Correct installation Fig. 18 Incorrect installation
Fig. 20 Incorrect position Fig. 20 Incorrect position
