4.5.2 Remote commands

The open and close commands are self-holding (pulse commands)
as a standard configuration.
To remove self-holding, remove wire to terminal 7.

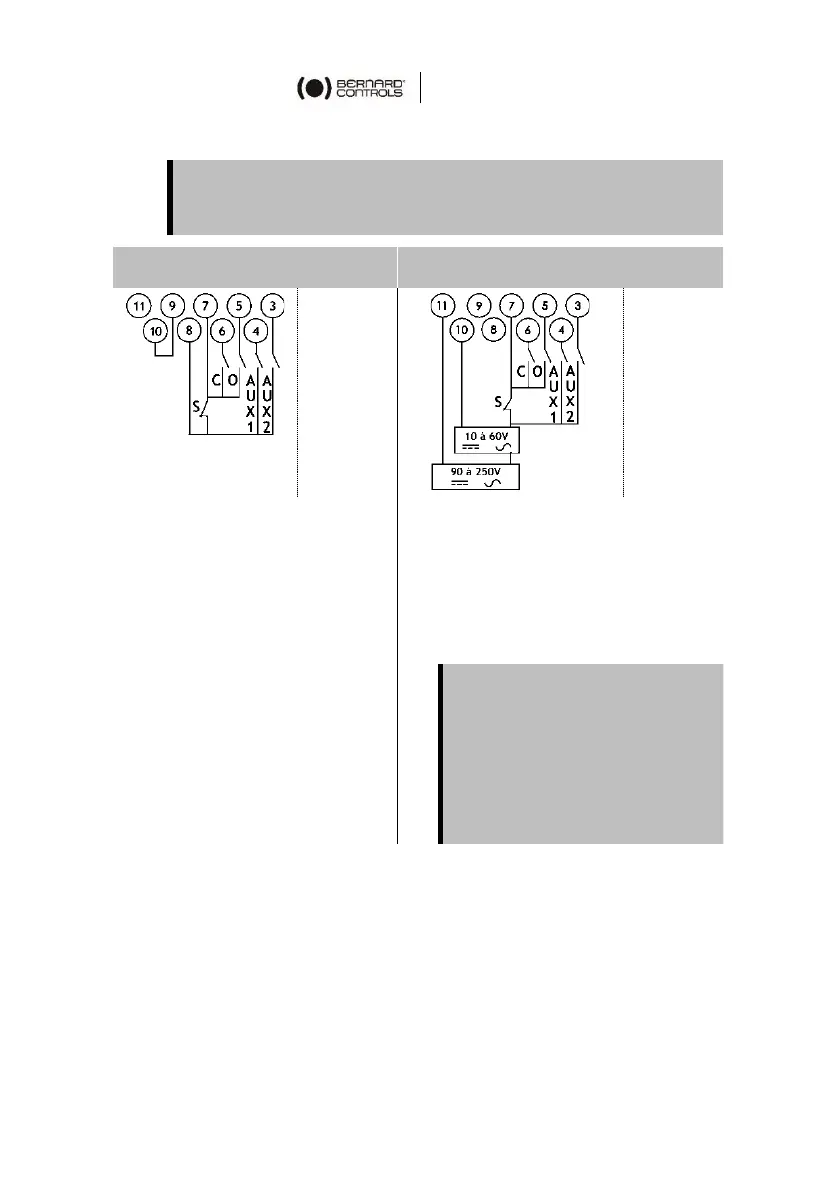

Dry contact control
Voltage control
S - Stop
C - Close
O - Open
S - Stop
C - Close
O - Open
A jumper must be fitted
across customer terminal 9-
10.
Remote commands can be used
either in AC or DC voltage:
 Use terminal 10 for voltage
from 10 to 60V
 Use terminal 11 for voltage
from 90 to 250V
!
It is imperative to comply with
the voltage ranges mentioned
above, otherwise components
will not function or will be
damaged. For AUX1 & AUX2
auxiliary commands, these
commands can be assigned to
specific functions (see §5.5.1).
