5.6 Setting the Analog Input/Output function (OPTION)
If you have an optional analog input/output board
or double analog input/output board, go to
Settings > Analog input/output to activate and
configure the different necessary functions.
5.6.1 Analog Input/Output - Activating the positioner
If present, the actuator can operate in positioner
mode using a proportional command such as a 4-20 mA analog signal.
How to activate the positioner function
1. From the Analog Input/Output menu, enter Positioner
Activation.

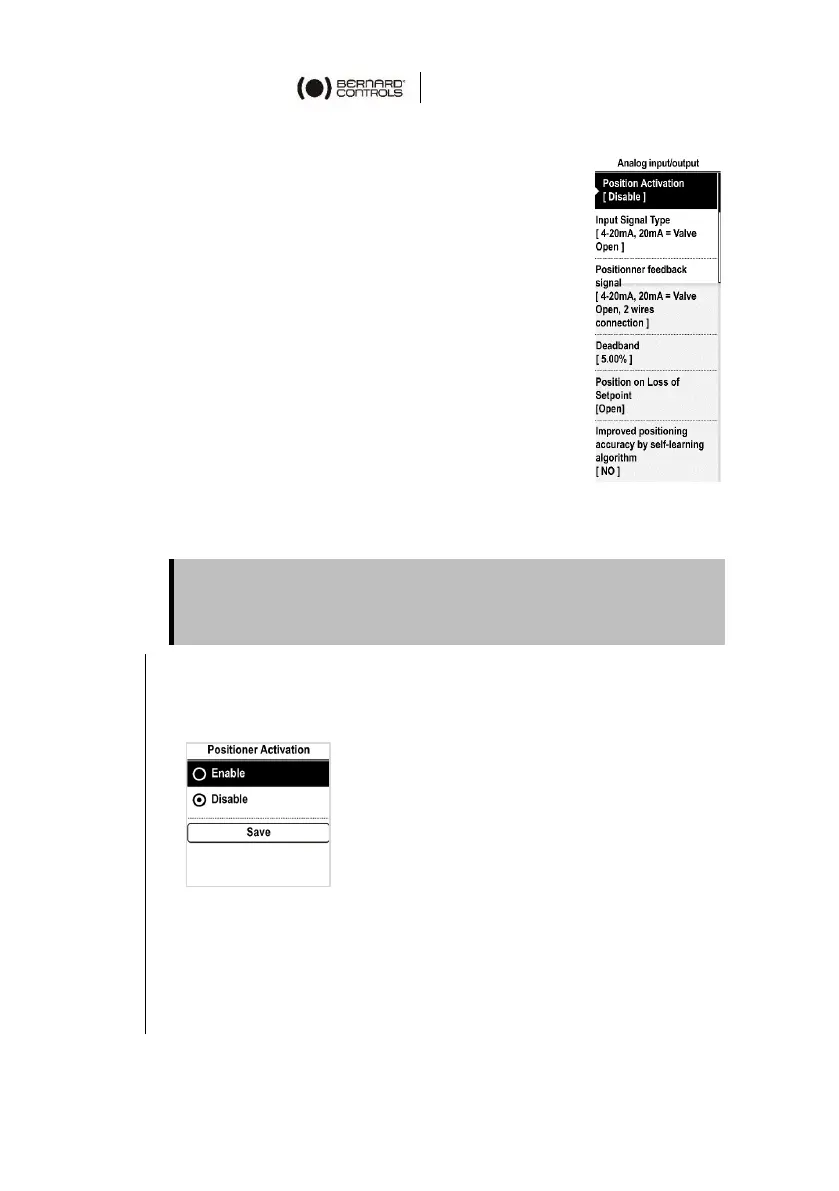

The following screen appears.
2. Select Enable and confirm with OK on the left knob.
3. Go to Save then validate with OK on the left knob.
The confirmation screen appears.
4. Select YES then validate with OK on the left knob.
The Analog Input/Output menu is then displayed.

If you are using an auxiliary remote command, the positioner
function is automatically activated or de-activated depending on
the auxiliary command.
