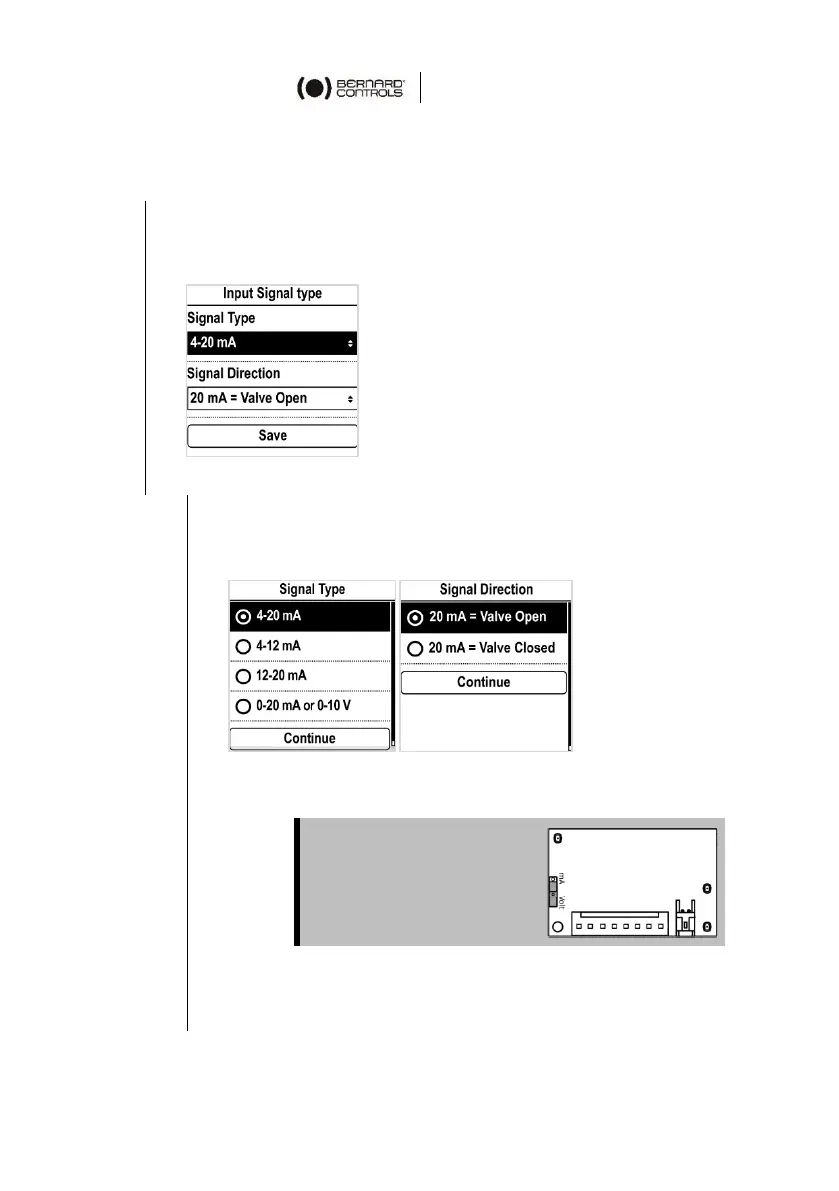

5.6.2 Setting the Analog Input/Output signal
How to set the Input Signal
1. From the Analog Input/Output menu, enter Input Signal
Type.
The following screen appears.
2. For the Signal Type and Signal Direction settings:
• Select the setting to adjust and validate with OK on the
left knob.
The corresponding setting screen appears.
• Select the desired option and validate with OK on the
left knob.
• The Continue button is highlighted, validate with OK on
the left knob.
• The display goes back to Input signal type screen.

If you choose 0-20mA or
0-10V, the switch on the
positioner board needs to
be switched from the mA
to the Volt position.
