5.7 Setting the Relays configuration
There are three signaling relays.
Relays 1 and 2 are non-customizable, and Relay 3 is customizable.
How to set the signaling relays configuration

The following procedure runs through the procedure for the
3 standard relays installed. Apply the same procedure for optional
relays.

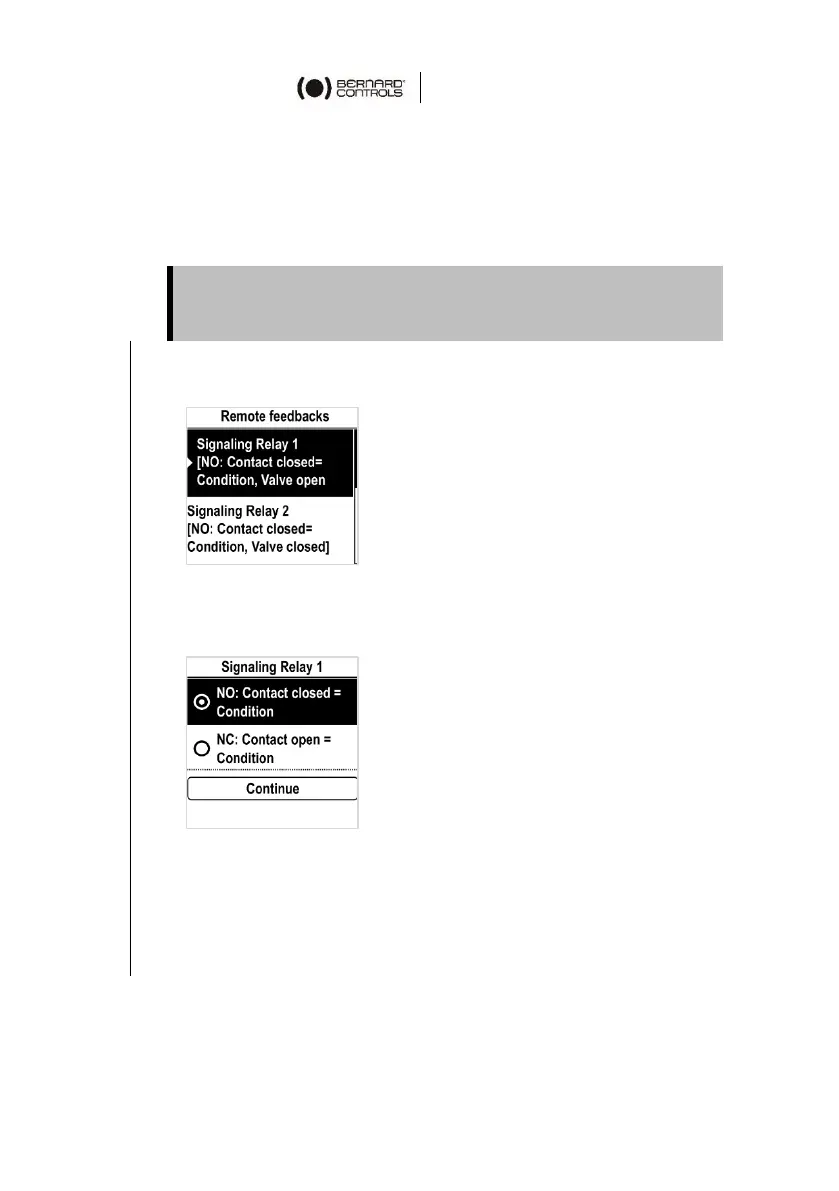

1. Navigate in the menu to Settings > Remote feedbacks.
The following screen appears.
2. To set a signaling relay, select it and validate with OK on the
left knob.
3. The following screen appears.
4. To set the condition, select the Contact closed or Contact
open option then validate with OK on the left knob.
5. Select Continue and validate with OK on the left knob.
6. For Signaling relay 1, the only option is Valve open.
For Signaling relay 2, the only option is Valve closed.
