For Signaling relay 3, select an option in the below list.

• Valve open

• Valve closed

• Torque limiter –

Opening direction

• Torque limiter – Closing

direction

• Actuator is opening

• Actuator is closing

• Actuator is running

• Intermediate position

indication

• OFF mode

• Local mode

• Remote mode

• Stopped in intermediate

position

• Motor Thermal Overload

• Jammed Valve

• Phase Loss

• Power ON

• Handwheel action

• Actuator controlled by

Fieldbus

• Overtravel

• Relay operated by

Fieldbus

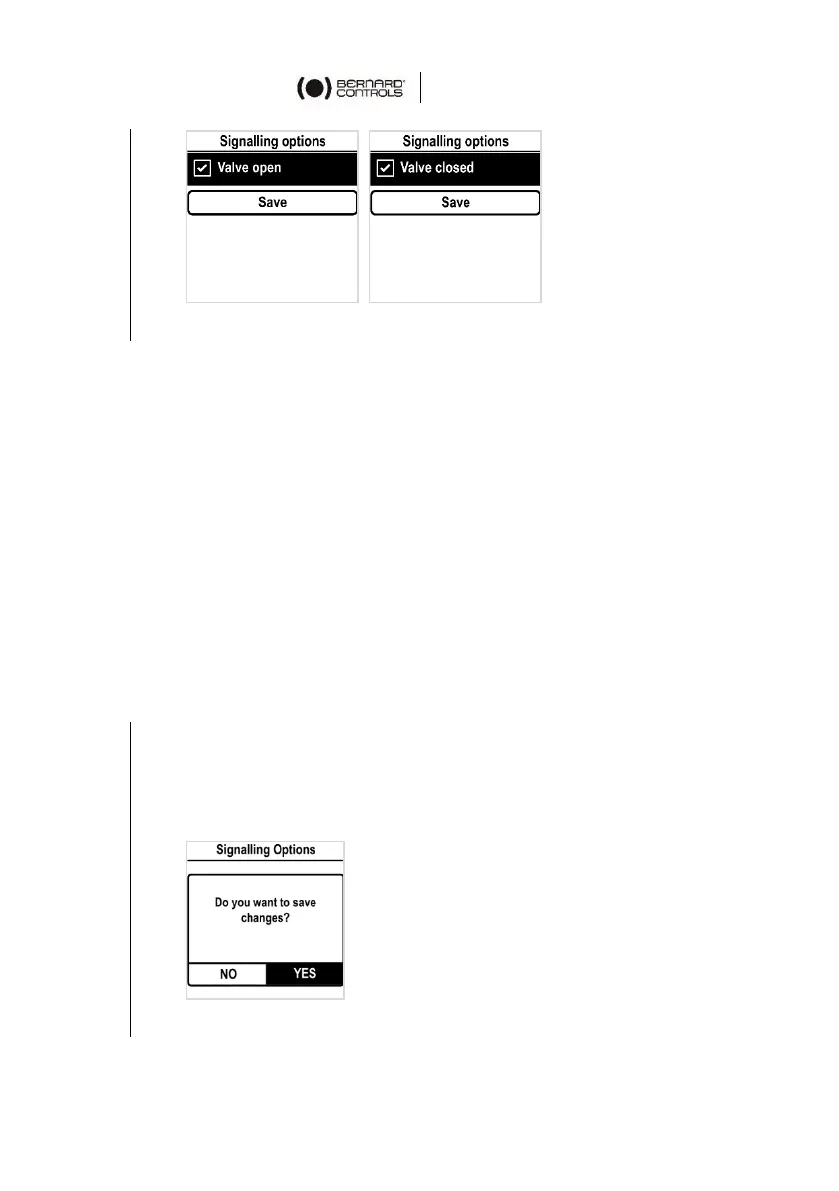

7. Several options can be selected by navigating to the option

and selecting each one with OK on the left knob.

8. Go to Save and validate with OK on the left knob.

The following screen appears.

9. Select YES and validate with OK on the left knob.
