When the last digit is validated, Save is highlighted.
3. Validate with OK on the left knob.
The confirmation screen appears.
4. Select YES then validate with OK on the left knob.
The Analog Input/Output menu is then displayed.
5.6.5 Analog Input/Output Fail-Safe position
When a 4-20 mA input signal is used, it is possible to set up a fail-
safe position if the input signal is lost.
This function is active in the standard configuration and the actuator
remains in its position if the input signal is lost.
How to set the Position on Loss of Setpoint
1. From Analog Input/Output menu, enter Position on Loss of
Setpoint.

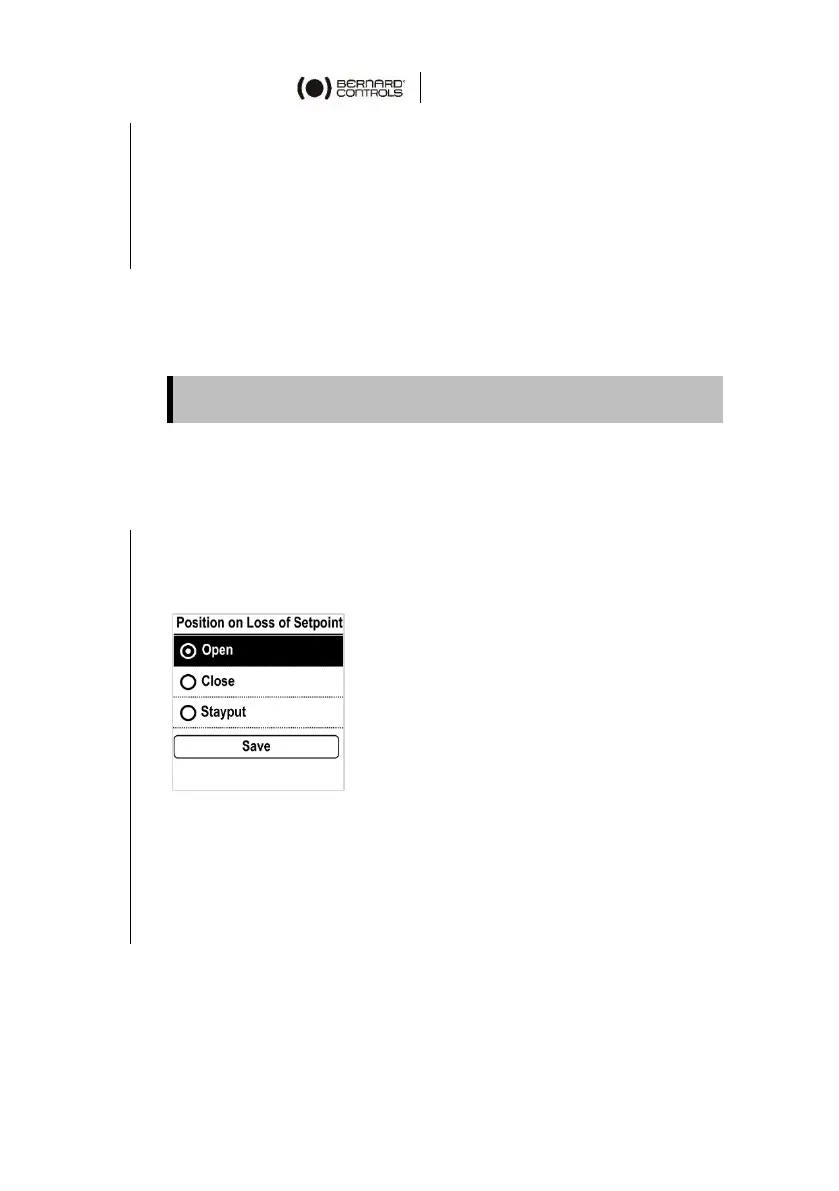

The following screen appears.
2. Select the desired value and validate with OK on the left knob.
3. Navigate to Save and validate with OK on the left knob.
The confirmation screen appears.
4. Select YES and validate with OK on the left knob.
The Analog Input/Output menu is then displayed.

This function cannot be used with 0-20 mA signals, as the
system cannot discern a lost signal from a 0-mA value.
