Better Packages 555e - Connector Plate Assembly

Rev 9 2022
31
Maintenance & Repair Connector Plate Assembly
Part Numbers
• E55502301
Tools Needed
• Philips head screwdriver
Procedure
1. Unplug Machine
2. Remove the water bole, and tank assembly
3. Remove le side cover (5 Philips screws) be
careful as the ribbons connecng the keypad can
be ripped easily.
4. Unplug keypad ribbons from controller board
(Figure 1)
5. Unplug power and power switch connectors
from the controller board
6. Remove 2 Philips screws holding connector plate
to frame (Figure 2)
7. Remove the connector plate
8. Place new connector plate
9. Screw in 2 Philips screws connecng connector
plate to frame
10. Plug the power and power switch into the
controller board
a. Power on le, power switch on
right
11. On le cover plug keypad ribbons back into
controller board
a. Be sure not to miss any pins as this will eect
the length selected
12. Reinstall le cover be sure not to pinch or drive a
screw through the keypad ribbons.
13. Replace water tank, brushes, and water bole

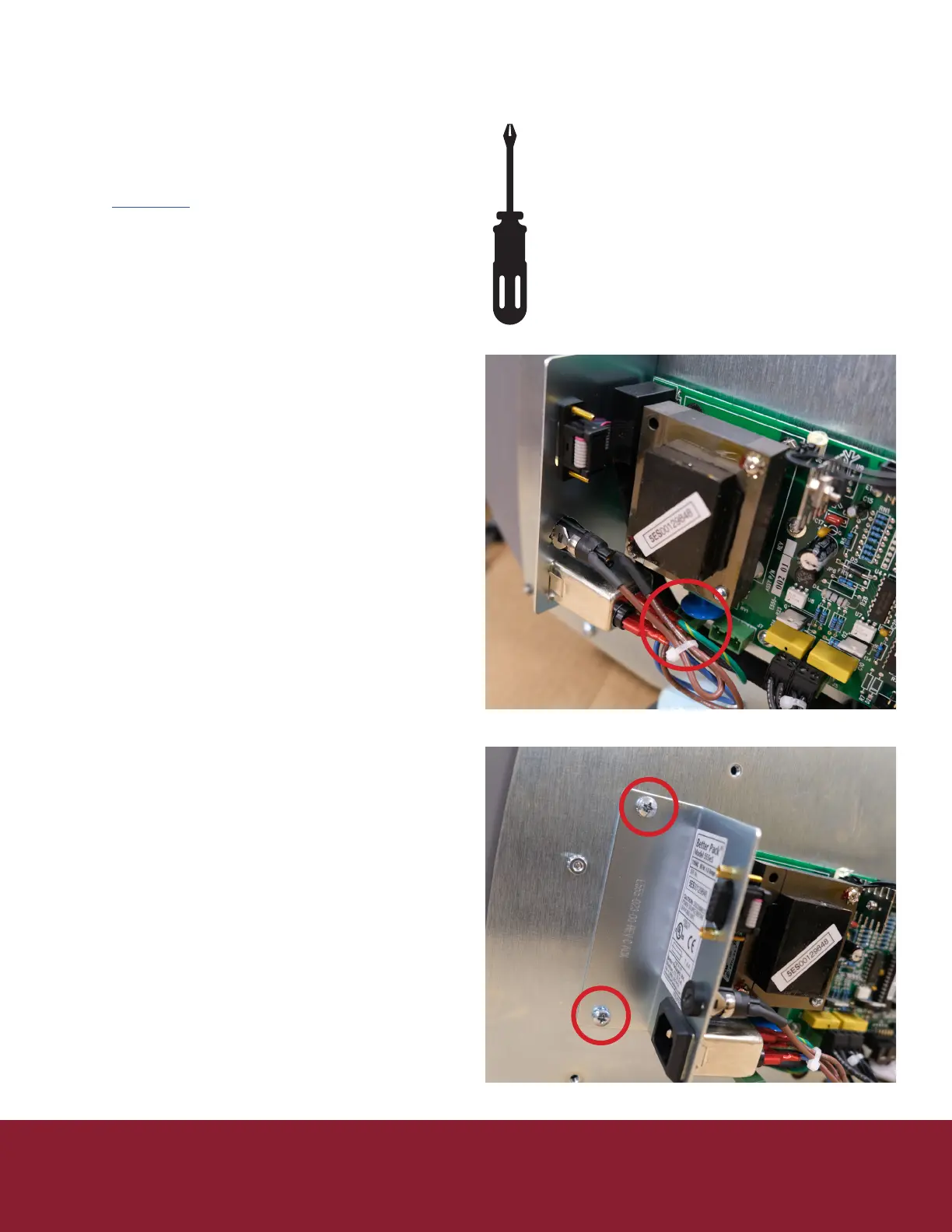

Figure 1
Figure 2
