Technical Specifications
70
Microphone Input
Phantom powering . . . . . . . . . . . . . . . . . . . . . . . +12 V
Wiring microphone connection . . . . . . . . . . . . . . 1 = Shield
2 = AF+ / phantom powering +12 V
3 = AF- / phantom powering +12 V
Frequency response rel. to 1 kHz. . . . . . . . . . . . . 80 Hz – 20 kHz (-3dB)
T.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1% at full modulation
Input sensitivity
rel. to full modulation . . . . . . . . . . . . . . . . . . . . . high: 11 mV (for dynamic microphone capsules)
low: 115 mV (for electret microphone capsules)
Unweighted S/N ratio
rel. to full modulation . . . . . . . . . . . . . . . . . . . . . 85 dB (unweighted) / 87 dB(A)
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-pin XLR, female
DT 394.SIS Headset
Microphone
Transducer type. . . . . . . . . . . . . . . . . . . . . . . . . . Electret condenser
Powering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . via integrated impedance transducer
voltage range 11 – 52 V
Polar pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cardioid
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 mV / PA
Output voltage while talking
at a distance of 5 cm . . . . . . . . . . . . . . . . . . . . . approx. 12 mV
Max. sound pressure level . . . . . . . . . . . . . . . . . . 122 dB SPL
Headphone
System impedance . . . . . . . . . . . . . . . . . . . . . . . 40 Ω
Nominal sound pressure level
(1 mW at 1 kHz) . . . . . . . . . . . . . . . . . . . . . . . . . 94 dB SPL
Nominal power handling. . . . . . . . . . . . . . . . . . . 100 mW, corresponds to 114 dB SPL
Headband pressure . . . . . . . . . . . . . . . . . . . . . . . 1.5 N
Weight without cable and connector . . . . . . . . . 154 g
Weight with cable and connector . . . . . . . . . . . . 218 g
SIS 12x Control Unit
Power supply voltage . . . . . . . . . . . . . . . . . . . . . 10 – 240 VAC, 50/60 Hz
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x 6.3 A, slow blow
Power consumption . . . . . . . . . . . . . . . . . . . . . . 18 W
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5" touch screen, 256-colour display
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Width: 483 mm (19")
Depth: 310 mm
Height: 132 mm (3HU)
Weight (SIS 121) . . . . . . . . . . . . . . . . . . . . . . . . . 5.75 kg
Operating temperature range . . . . . . . . . . . . . . . +5º to +40ºC (at < 90 % humidity)
Storage temperature range . . . . . . . . . . . . . . . . . -20º to+80ºC (at < 90 % humidity)
Outputs
Original Through . . . . . . . . . . . . . . . . . . . . . . . . . XLR male, 0 dB gain, min. impedance 300 Ω
Ext.Language Through . . . . . . . . . . . . . . . . . . . . XLR male, 0 dB gain, min. impedance 300 Ω

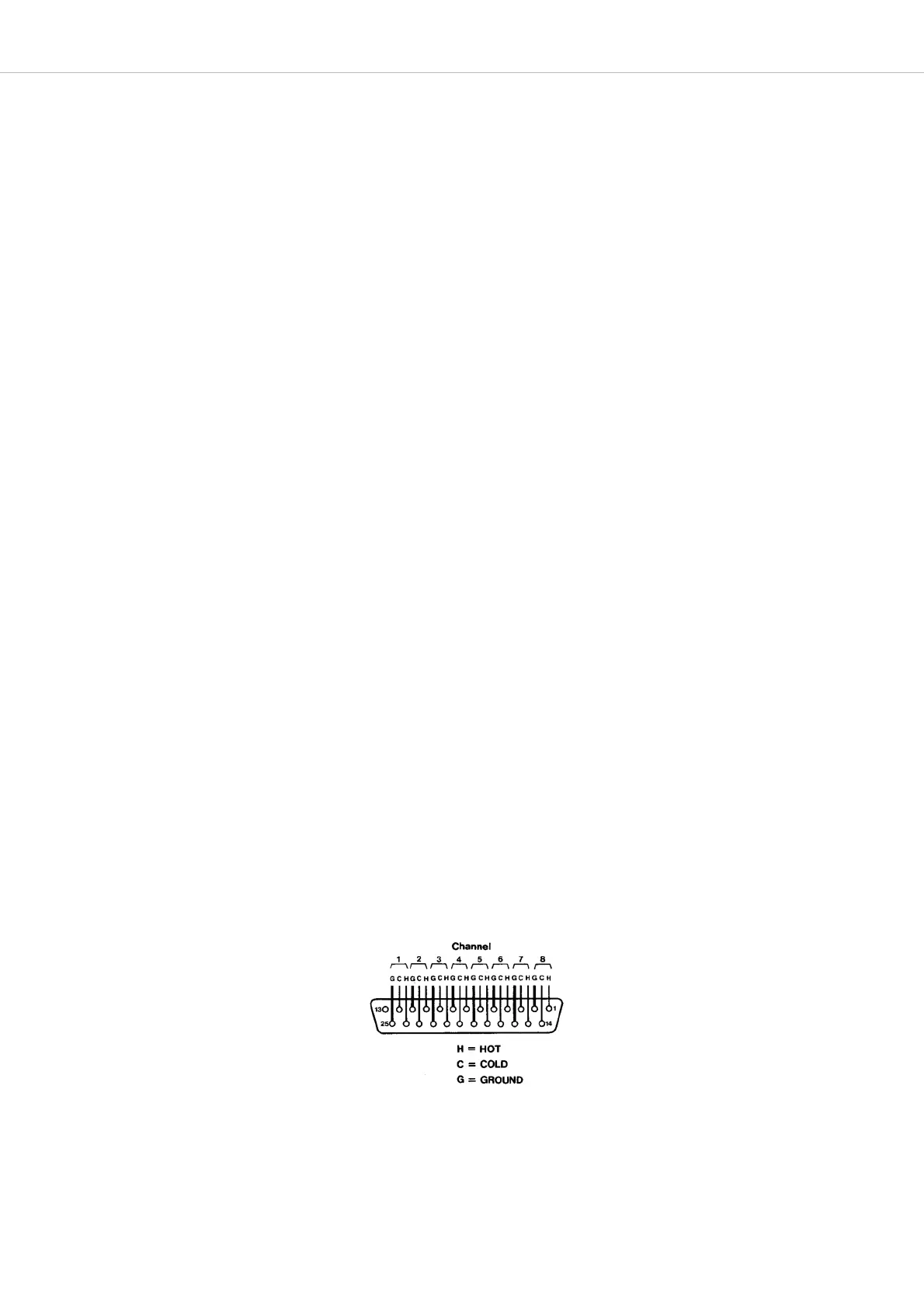

to MCW-D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 pin Sub-D (Tascam wiring)
balanced connection with appropriate level for MCW-D
Language Output XLR
Frequency response rel. to 1 kHz. . . . . . . . . . . . . 50 Hz – 20 kHz (-3dB)
T.H.D. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.5% at full modulation
Max. output level . . . . . . . . . . . . . . . . . . . . . . . . + 8dB
Unweighted S/N ratio
rel. to full modulation . . . . . . . . . . . . . . . . . . . . . 106 dB (unweighted) / 110 dB(A)
Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-pin XLR, male
