BIFFI ALGAS User Manual

39
MAN 604A Rev. 5
Layouts and Sectional Drawings
Section 7: Layouts and Sectional Drawings
June 2020
Installation, Operation and Maintenance Manual
NOTE:
* Recommended spare parts

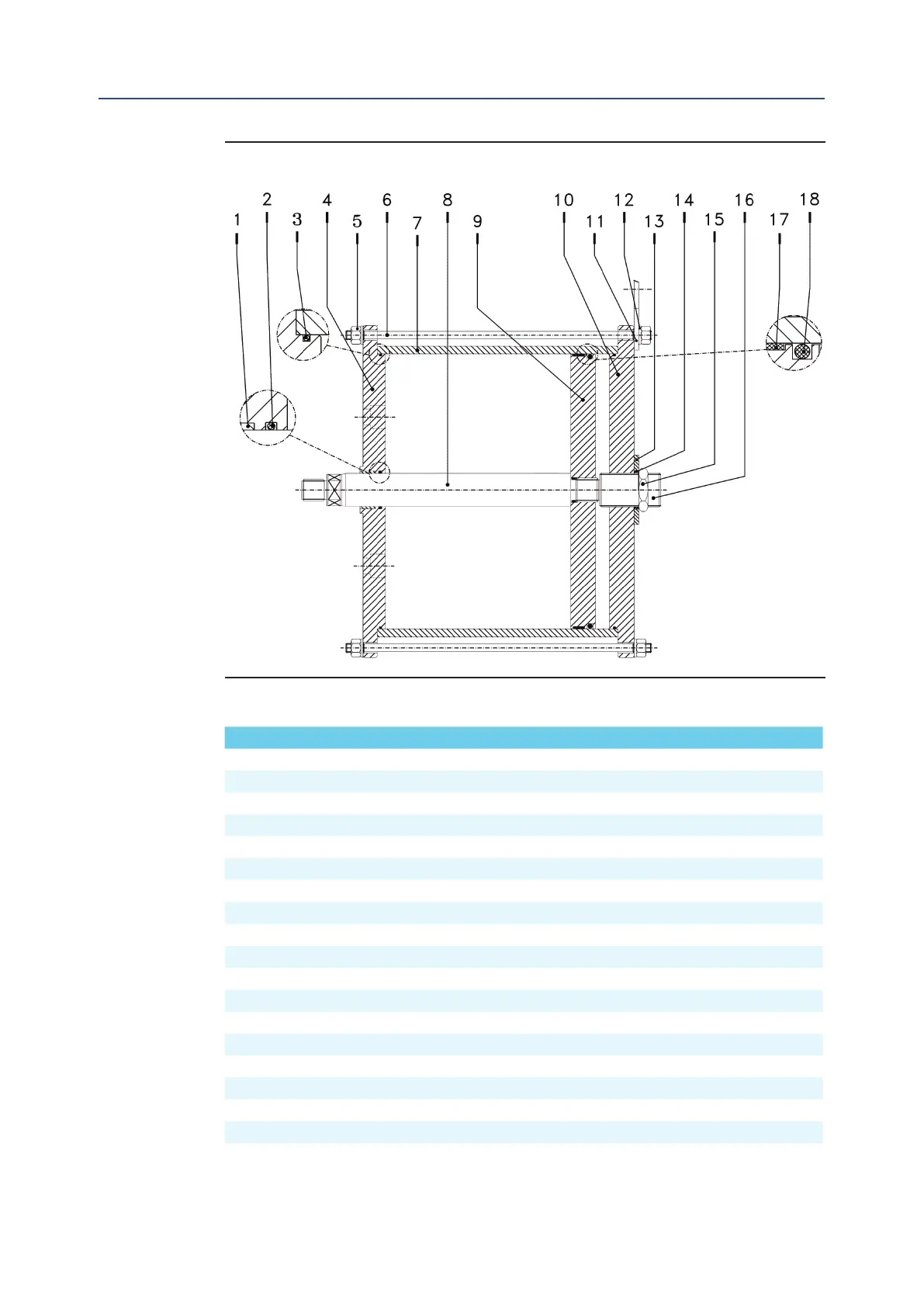

Figure 25 Pneumatic cylinder
Table 21. Parts list
Item Qty Description Material
1 1 Piston rod bushing Steel + bronze + PTFE
2 1 O-ring * NBR
3 2 O-ring * NBR
4 1 Head ange Carbon steel
5 12 Nut Carbon steel
6 6 Tie rod Alloy steel
7 1 Cylinder tube Carbon steel
8 1 Piston rod Alloy steel
9 1 Piston Carbon steel
10 1 End ange Carbon steel
11 1 Liftting eyelet Carbon steel
12 2 Spring washer Carbon steel
13 1 Washer Carbon steel
14 1 Sealing washer * PVC
15 1 Nut Carbon steel
16 1 Stop setting screw Carbon steel
17 1 Guide sliding ring for piston * PTFE + graphite
18 1 O-ring * NBR
