Layouts and Sectional Drawings
Section 7: Layouts and Sectional Drawings

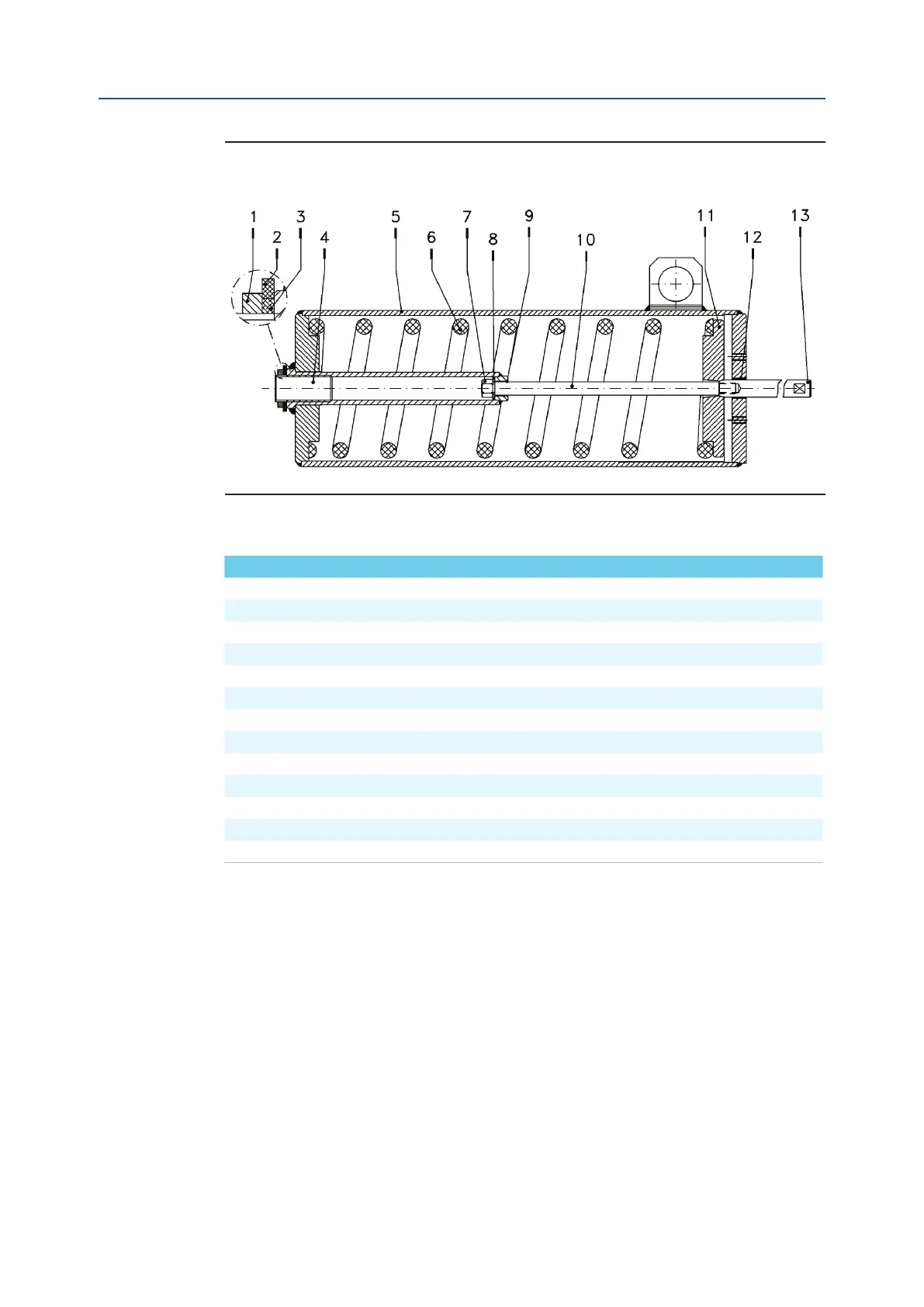

Figure 26 Spring cartridge
Table 22. Parts list
Item Qty Description Material
1 1 Nut Carbon steel
2 1 Washer Carbon steel
3 1 Sealing washer * PVC
4 1 Stop setting screw Carbon steel
5 1 Spring container Carbon steel
6 1 Spring Carbon steel
7 1 Nut Carbon steel
8 1 Shoulder washer Alloy steel
9 1 Rod bushing Steel + bronze + PTFE
10 1 Guide rod Alloy steel (chromium plated)
11 1 Spring thrust ange Carbon steel
12 1 Rod bushing Steel + bronze + PTFE
13 1 Container rod Alloy steel (chromium plated)
June 2020
Installation, Operation and Maintenance Manual
NOTE:
* Recommended spare parts
