BIGTREETECH MMB CAN V1.0 User Manual
6
Interface Introduction

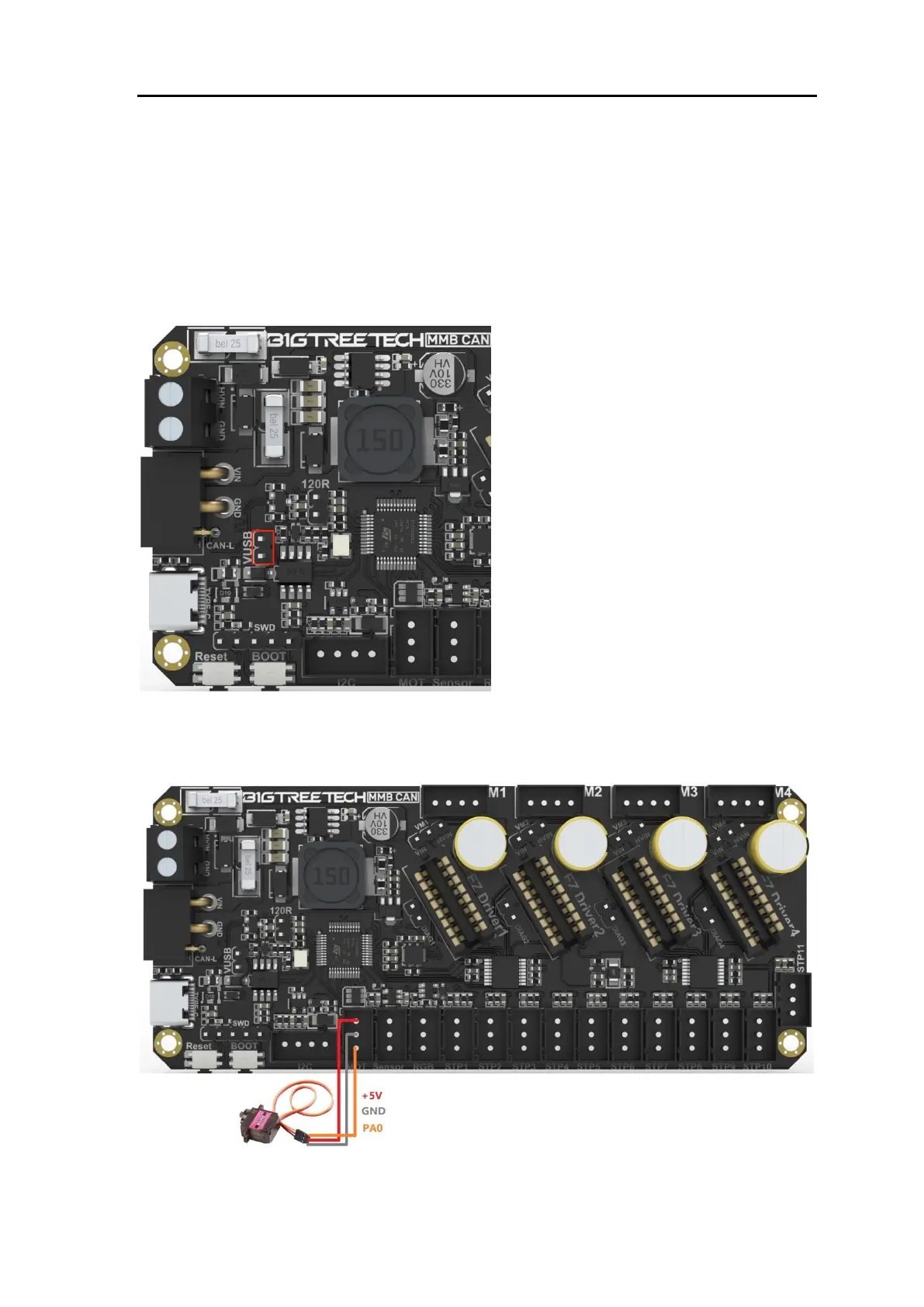

USB Power Supply
After the board is powered on, the power indicator light will turn on, indicating that
the power supply is normal. The VUSB label on the board is the power selection
terminal, and a jumper is needed to short VUSB only when using USB to power
the board.
Servo Wiring
