from your ISP. You need to activate the VC to take effect. For PVCs management, you can use ATM
QoS to setup each PVC traffic line's priority.
Virtual Circuit: VPI (Virtual Path Identifier) and VCI (Virtual Channel Identifier) define a virtual
circuit.

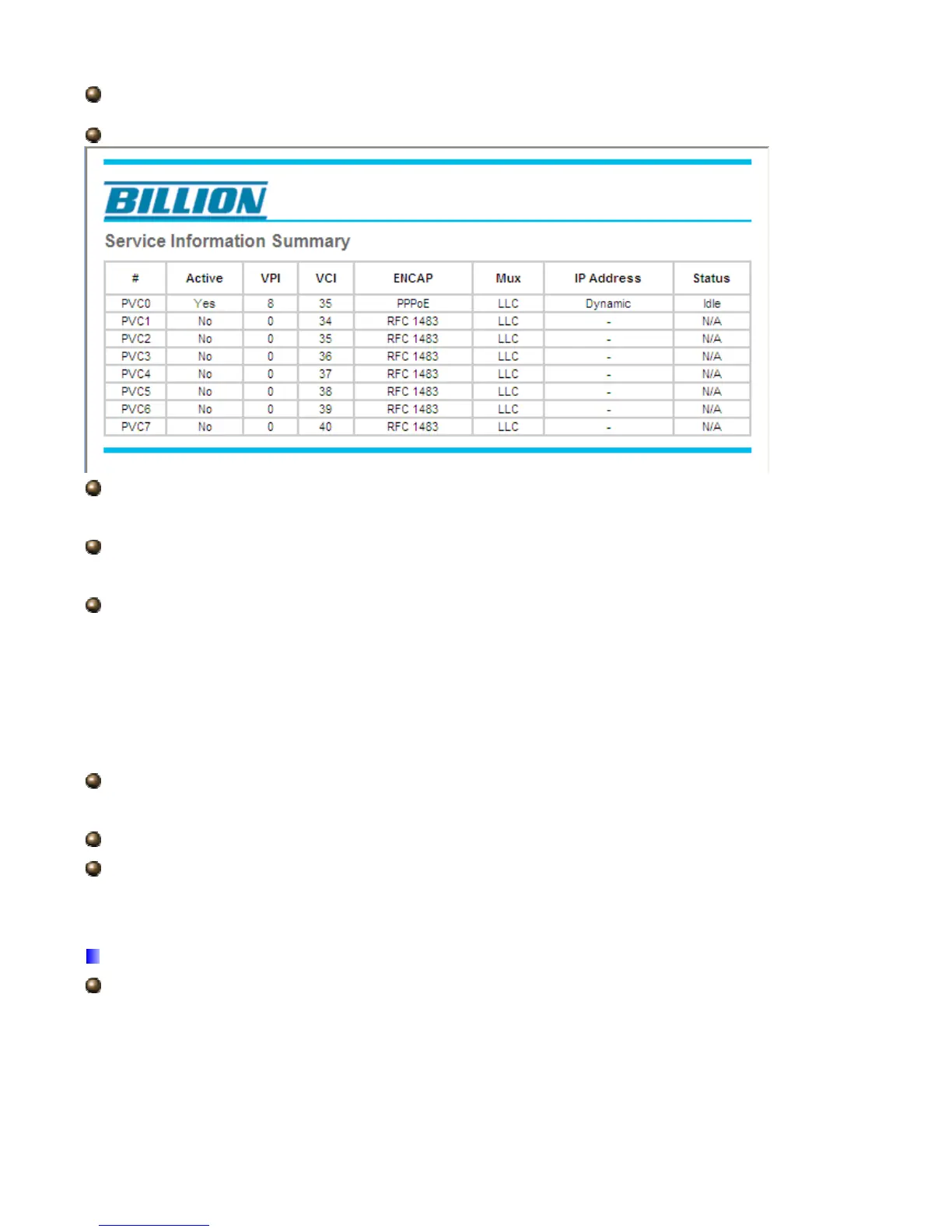

PVC Summary:
VPI: The valid range for the VPI is 0 to 255. Enter the VPI assigned to you. This field may already be
configured.
VCI: The valid range for the VCI is 1 to 65535. Enter the VCI assigned to you. This field may already
be configured.
ATM QoS: Select the Quality of Service types for this Virtual Circuit. The ATM QoS types include
CBR (Constant Bit Rate), VBR (Variable Bit Rate) and UBR (Unspecified Bit Rate). These QoS types
are all controlled by the parameters specified below, including PCR, SCR and MBS.
Select CBR to specify fixed (always-on) bandwidth for voice or data traffic. Select UBR for applications
that are non-time sensitive, such as e-mail. Select VBR for burst traffic and bandwidth sharing with
other applications.
PCR: Divide the DSL line rate (bps) by 424 (the size of an ATM cell) to find the Peak Cell Rate
(PCR). This is the maximum rate at which the sender can send cells.
SCR: The Sustain Cell Rate (SCR) sets the average cell rate (long-term) that can be transmitted.
MBS: Maximum Burst Size (MBS) refers to the maximum number of cells that can be sent at the
peak rate. Type the MBS, which is less than 65535
Encapsulation:
ISP: Select the encapsulation type your ISP uses from the Encapsulation list.
Choices vary depending on what you select in the Mode field.
Dynamic IP: Select this option if your ISP provides you an IP address automatically. This option is
typically used for Cable services. Please enter the Dynamic IP information accordingly.
Static IP: Select this option to set static IP information. You will need to enter in the Connection type,
IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP address entered
in the fields must be in the appropriate IP form, which is four IP octets separated by a dot (x.x.x.x). The
34
