Repair work at the humidifying and dehumidifying system
9.1.7 Piping of the humidification module
A
B
C
D
E F
G
H
I

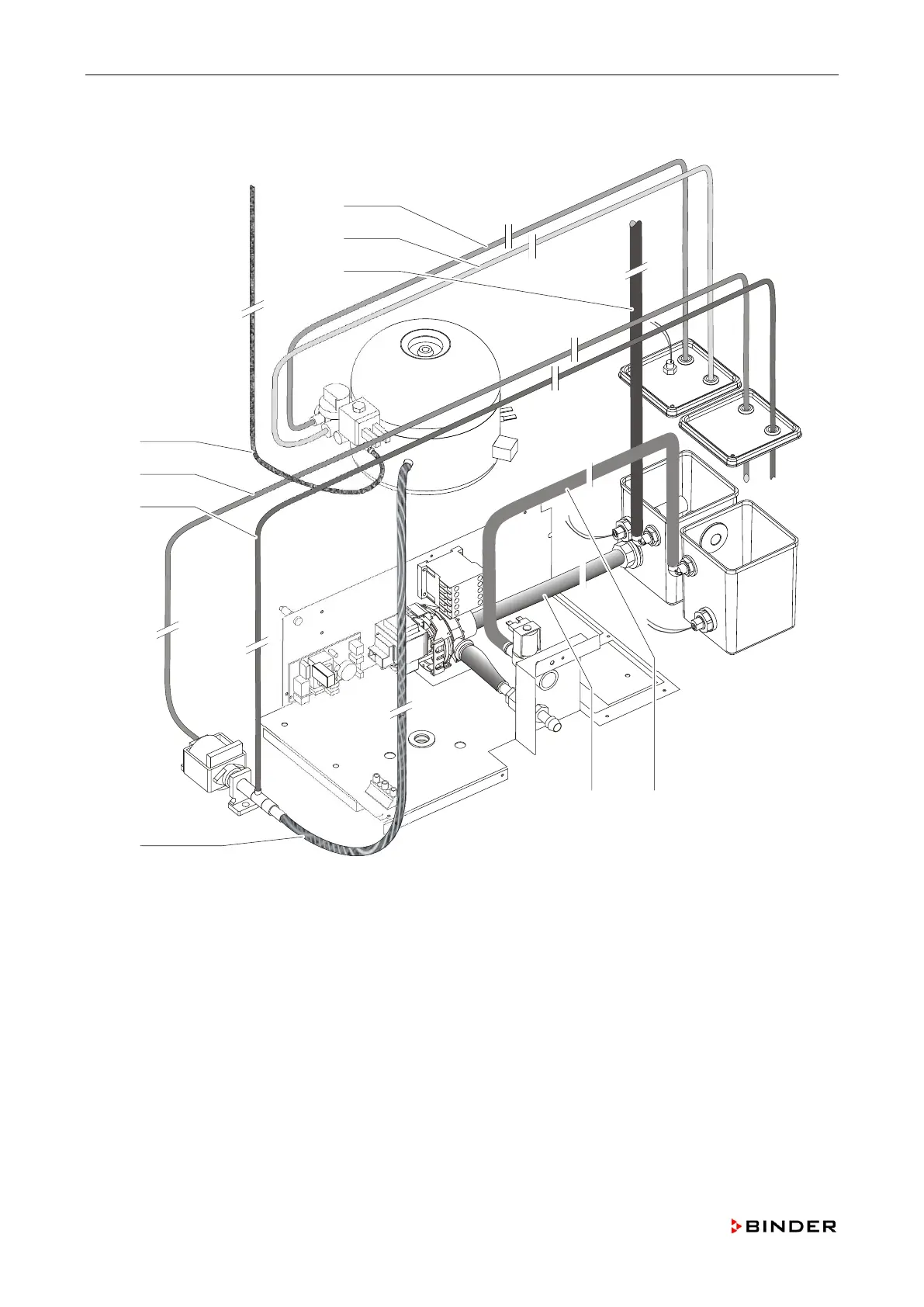

Figure 50: Piping of the humidification module
A
Steam hose (tissue) (1200 mm / 47.24 in)
B
Suction hose for water pump (800 mm / 31.49 in)
C
Air relief hose of reflux valve (700 mm / 27.56 in)
D
Pressure hose with metal braiding
E
Wastewater hose of evacuation pump (130 mm / 5.12 in)
F
Freshwater inlet hose (450 mm / 17.72 in)
G
Pressure compensation hose to outlet tank (720 mm / 28.35 in)
H
Pressure compensation hose to outlet tank (730 mm / 28.74 in)
I
Condensate outlet hose ½" outer chamber
Hose clamp, 8-12 mm / 0.31 x 0.47 in
Hose clamp, 12-20 mm / 0.47 x 0.79
Hose clamp, 20-32 mm / 0.79 x 1.26 in
