Binder KBF 240 - Setting the Door Heating Correction

Calibrating and adjusting the temperature and humidity control

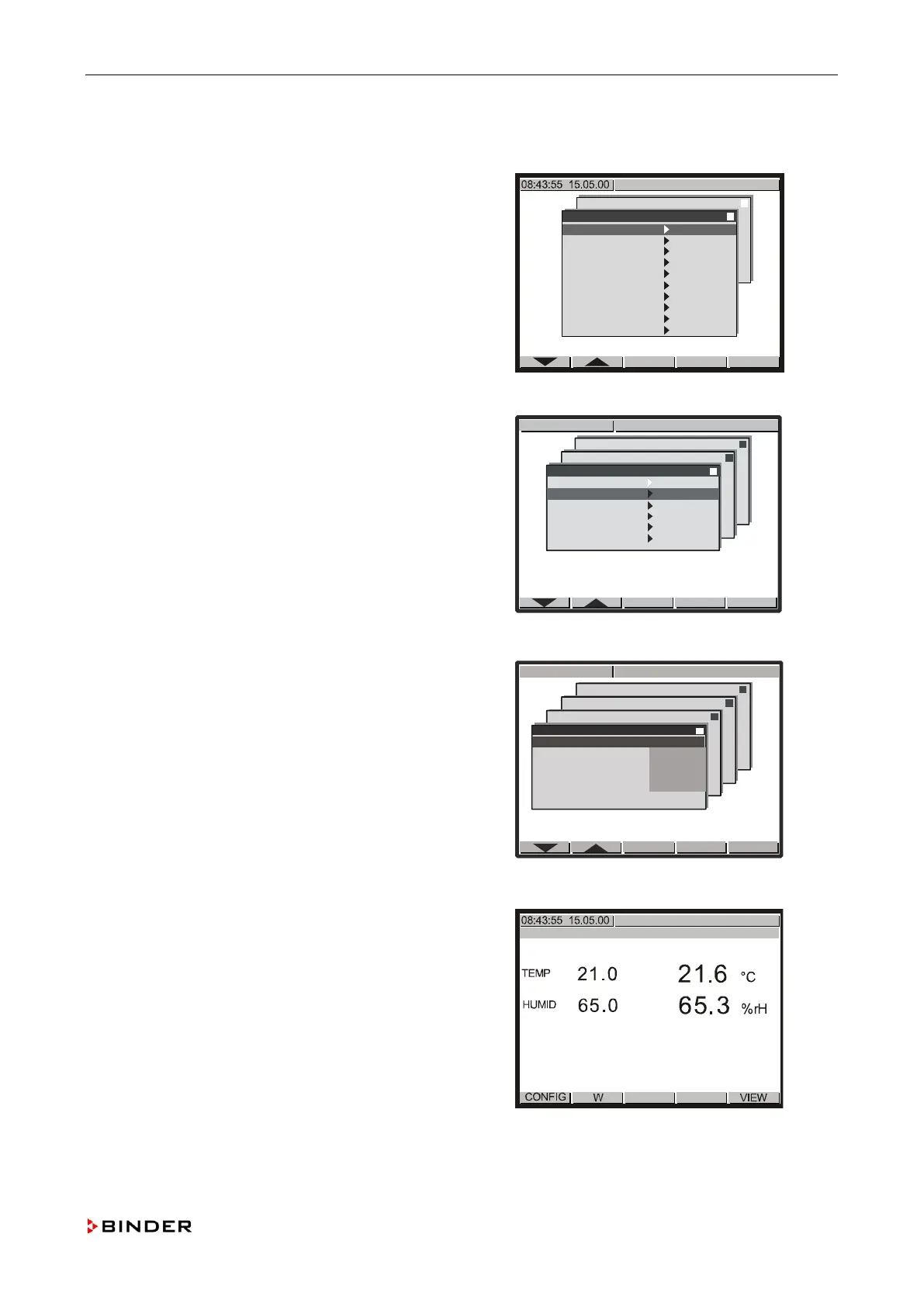

11.4 Setting the door heating correction
1. Enter the menu “Inp.Val. correct.“
(see steps 1 to 0, chap. 11.3.1).
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level
Inp.Val. correct.
Analogue Inputs
Analogue Outputs
Bin. Inputs
Bin. Outputs
Anal. Inp. mTRON
Anal. Out. mTRON
Bin. Inp. mTRON
Bin. Out. mTRON
Memory Display

↓
Use the buttons  or  to select the menu item
„
Analogue Input 2” and confirm with <ENTER>.
Konfiguration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service-Ebene

Meßwertkorrektur
Eingang Kanal 1
Eingang Kanal 2
Eingang Kanal 3
Eingang Kanal 4
Eingang Kanal 5
Überwachungsregler

08:43:55 15.05.00
↓
Use the buttons  or  to select a menu item and confirm
with <Enter>.
For each menu item a submenu will be
opened.
Use the buttons
, , and  to key in the values
d
escribed below and confirm with <ENTER>.
State: On
Start value X: 10.0
Start value W: 8.5
End value X: 90.0.
End value W: 88.5
Konfiguration 2
Analogue inputs
Analogue outputs
Limit comper a
tors
Donor
-
functions
Controller
Service Level

Service-Ebene

Meßwertkorrektur
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

Eingang Kanal 2
Status Ein
Anfangswert Ist + 10.0
Anfangswert Soll + 8.5
Endwert Ist + 90.0
Endwert Soll + 88.5

08:43:55 15.05.00
↓
Push <EXIT> four times to return to the basic display.
W
X

Service Manual KBF (E5.2) 04-2015 129
