Calibrating and adjusting the temperature and humidity control
Use the buttons  or  to select a menu item and confirm
with <ENTER>.
For each menu item a submenu will be
opened.
Use the buttons
, , and  to key in the values de-
scribed below and confirm with <ENTER>.
State: On
Start value X: 0.0
Start value W: 0.0
End value X: Value of “Safety controller“/“1.” (e.g.
+22.7) (step 0, chap. 11.3.2)
End value W: Value of reference measuring in-
strument (e.g. +21.6) (step 0, chap. 11.3.2).
Configuration 2
Analogue inputs
Analogue outputs
Limit comperators
Donor-functions
Controller
Service Level

Service Level

Inp.Val. correct.
Analogue input 1
Analogue input 2
Analogue input 3
Analogue input 4
Analogue input 5
Safety controller

Safety controller
State On
Start Value X + 0.0
Start Value W + 0.0
End Value X + 22.7
End Value W + 21.6

↓

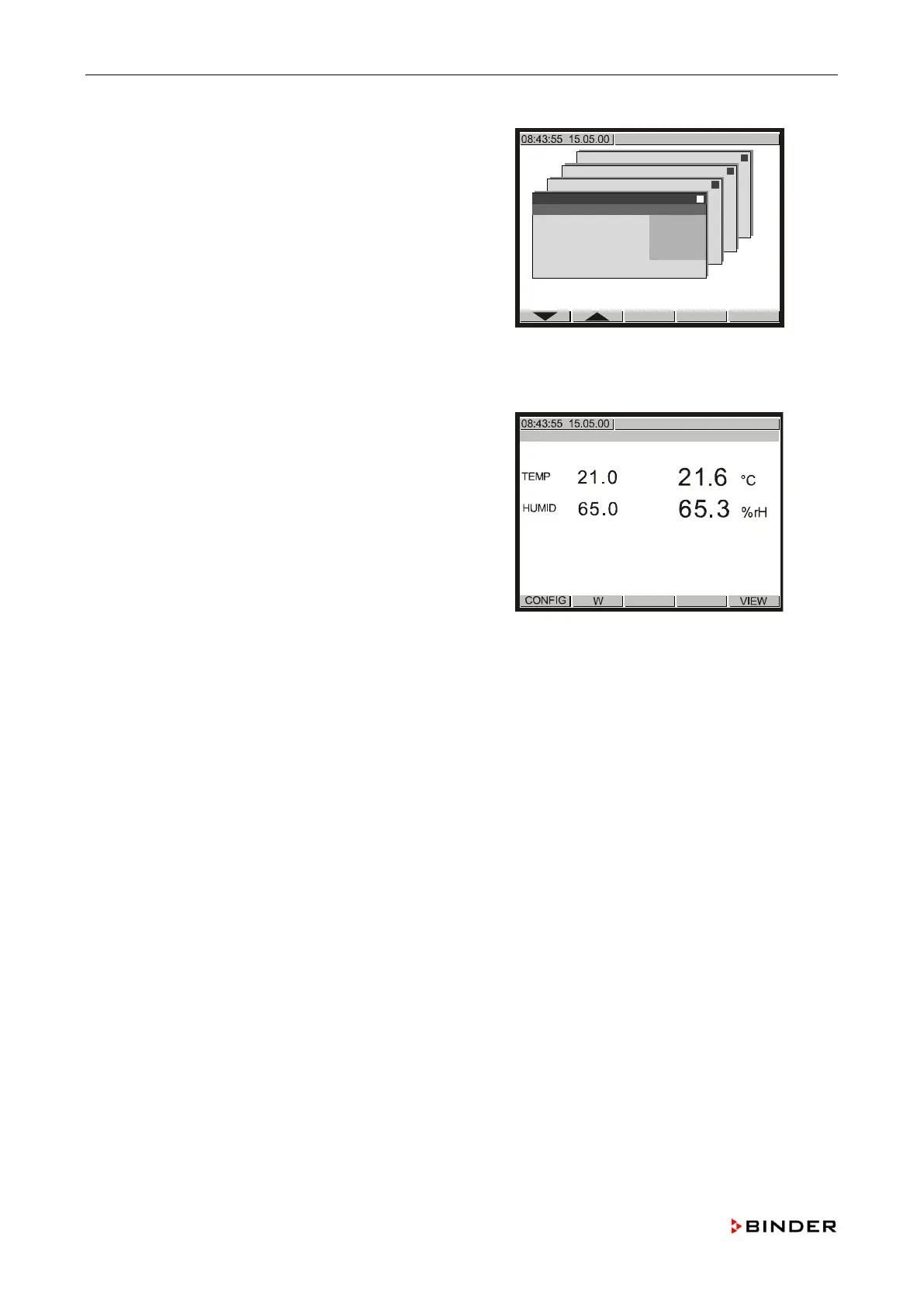

Push <EXIT> four times to return to the basic display.
The corrected
value appears on the controller display
after 5 seconds.
Compare the displayed temperature values of the
controller display and the reference measuring
instrument. The devi
ation must be less than the
confidence criteria
.
W X

