8.6 Components of the electric mounting plate (standard)
A B
I
J
K
L
M
N
O
P
C
D
E
F
F EGH
X50 X120 X90 X140 X70 X100 X80
X40
X60
X20

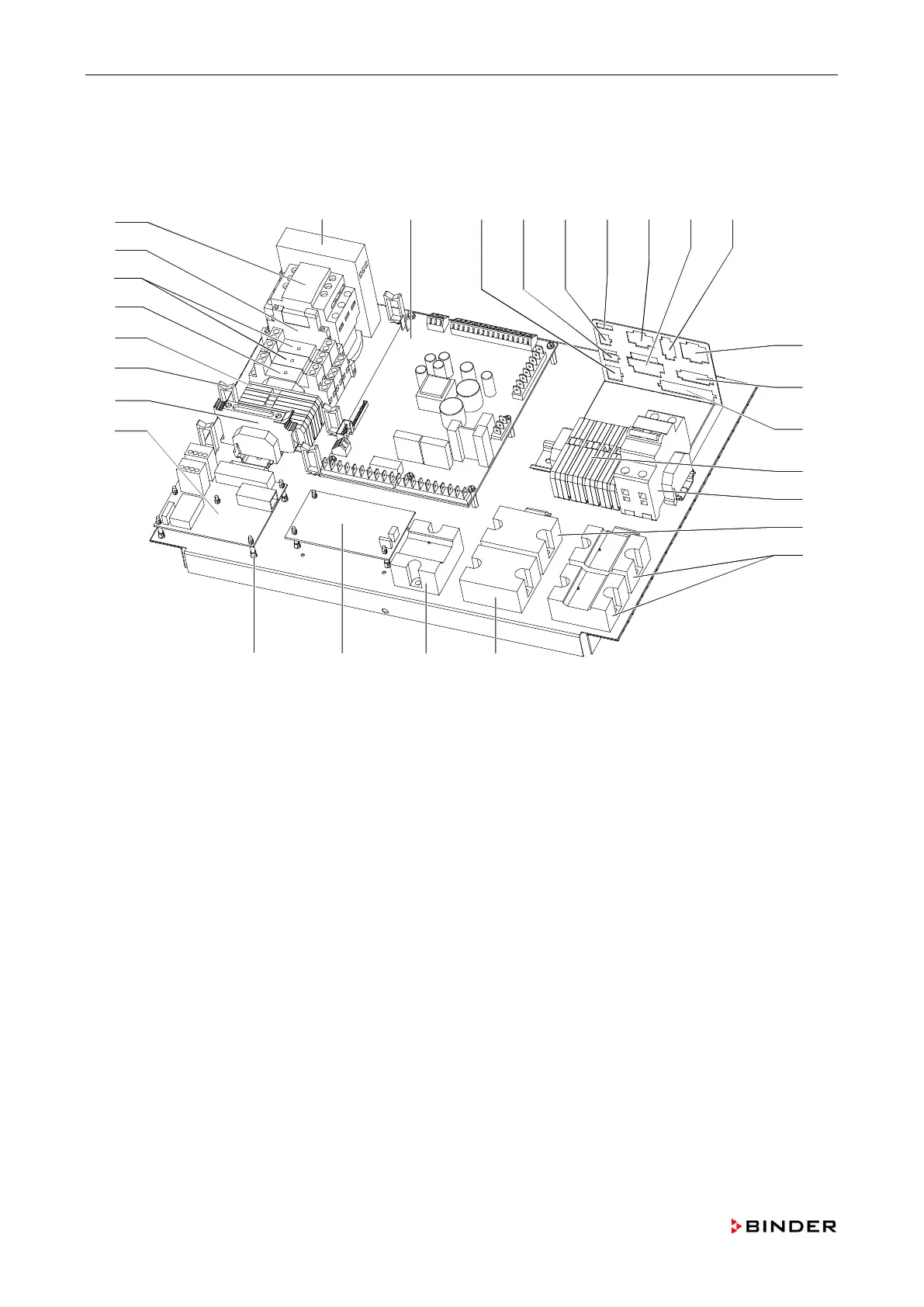

Figure 38: Components of the electric mounting plate (standard)
A Slow-release time relay
B Controller MB1 I/O board 115/230 V AC
C 4-wire through terminals
D Miniature circuit breaker 2-pol. B16 A
E Solid state relay (1S / 3 A) 24 VDC
F Solid state relay (1S / 25 A) 280 VAC
G Humidity sensor board
H Board spacer 15.9 mm / 0.625 in
I Converter RS422 / Ethernet
J Fuse terminal 6.3x32 mm
K Cable clamp, white 35 mm / 1.38 in
L 4-wire through terminals
M Relay (2 W / 5 A) 230 VAC + relay socket
N Relay (2W / 8A) 24 VDC
O Solid state relay (1S/2 A) 24 VDC + socket
P Power contactor (3H/1S/1Ö) 24 VDC
