Binder KBF 240 - Replacing the Glass Door Gasket

Repair work at the inner and outer chamber
7.3 Replacing the glass door gasket
Spare parts:
Glass door gasket KBF 115, (order no. 6005-0204)
Glass door gasket KBF 240, (order no. 6005-0149)
Glass door gasket KBF 720, (2x),(order no. 6005-0198)
Intermediate door gasket KBF 720, (order no. 6005-0192)
1. Remove the gasket (B) from the glass door (A).
2. Mount the new gasket on the glass door. Mind the recesses (C) for the hinges and the turn-lock fastener.
3. Check whether the glass door gasket sits close to the inner chamber. Otherwise you need to adjust the
door (see chap. 7.1).
4.
C
A B
C
C
5. A
6. Glass door
B
Glass door gasket
C
Recesses

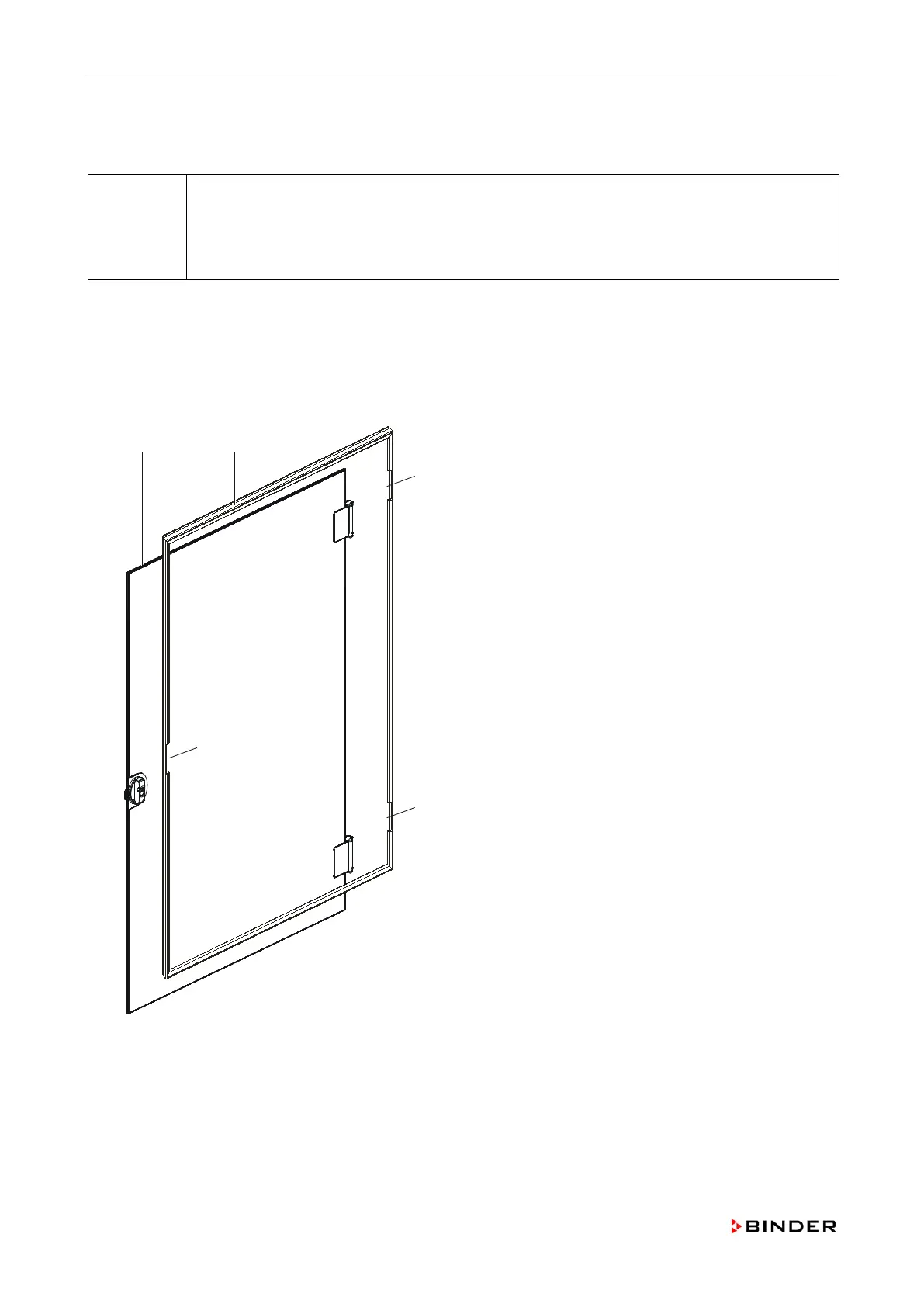

Figure
19: Replacing the glass door gasket
