Binder KBF 240 - Page 47

Repair work at the outer door
T (°C) 0 1 2 3 4 5 6 7 8 9 10
-10
96.086
96.478
96.870
97.262
97.653
98.045
98.436
98.827
99.218
99.609
100.000
0
100.000
100.391
100.781
101.172
101.562
101.953
102.343
102.733
103.123
103.513
103.902
10
103.902
104.292
104.681
105.071
105.460
105.849
106.238
106.627
107.016
107.404
107.793
20
107.793
108.181
108.570
108.958
109.346
109.734
110.122
110.509
110.897
111.284
111.672
30
111.672
112.059
112.446
112.833
113.220
113.607
113.994
114.380
114.767
115.153
115.539
40
115.539
115.925
116.311
116.697
117.083
117.469
117.854
118.240
118.625
119.010
119.395
50
119.395
119.780
120.165
120.550
120.934
121.319
121.703
122.087
122.471
122.855
123.239
60
123.239
123.623
124.007
124.390
124.774
125.157
125.540
125.923
126.306
126.689
127.072
70
127.072
127.454
127.837
128.219
128.602
128.984
129.366
129.748
130.130
130.511
130.893
80
130.893
131.274
131.656
132.037
132.418
132.799
133.180
133.561
133.941
134.322
134.702
90
134.702
135.083
135.463
135.843
136.223
136.603
136.982
137.362
137.741
138.121
138.500
100
138.500
138.879
139.258
139.637
140.016
140.395
140.773
141.152
141.530
141.908
142.286
Table 1: Temperature – resistances table of temperature sensor Pt100
A
C
F
E
B
D

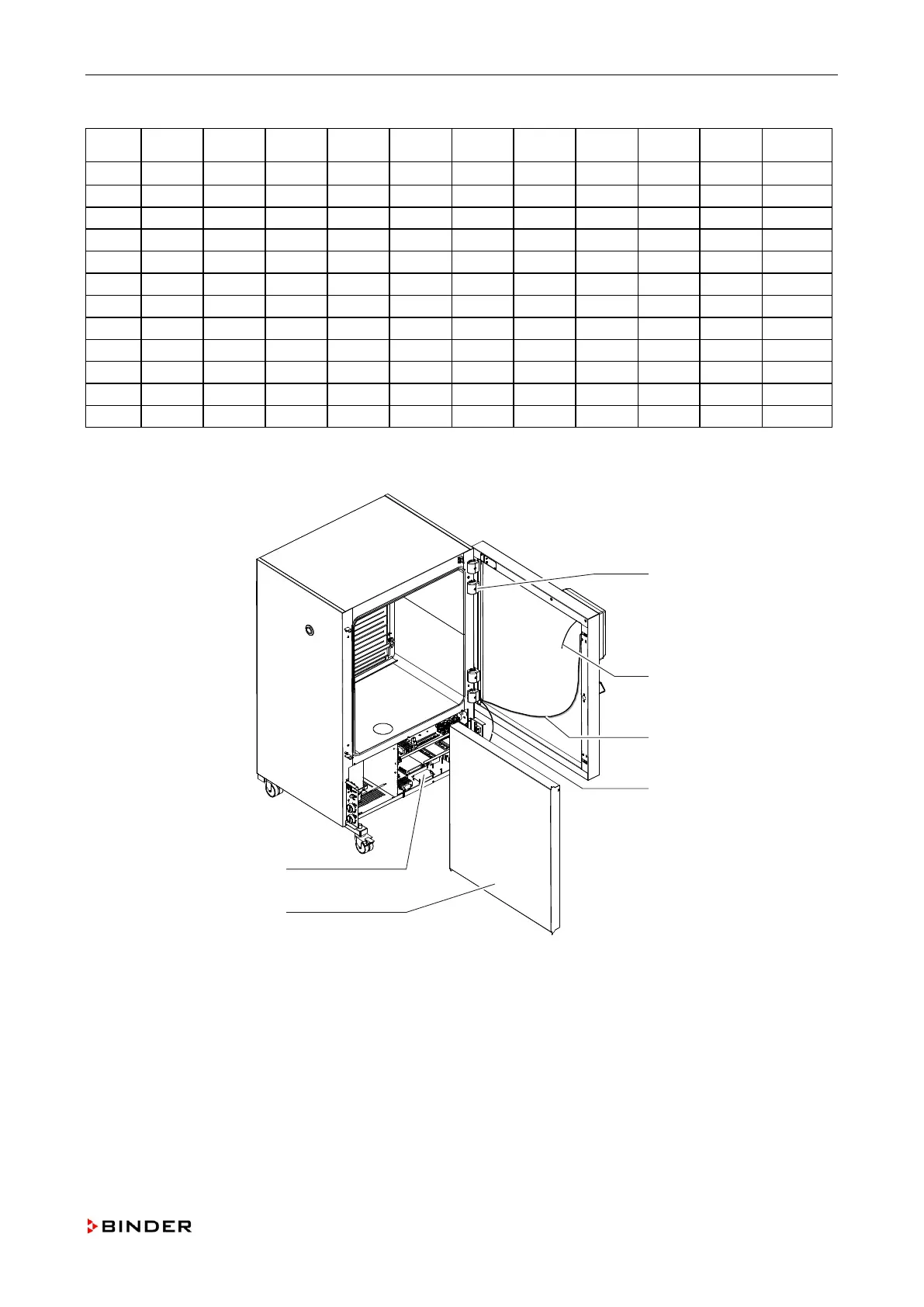

Figure 11: Checking and replacing the interior side of the outer door
A Electric mounting plate
B Interior side of the outer door
C Door hinge with cover
D Grounding cable
E Wires of triangle instrument box
F Cable for door heat conductor and temperature sensor
Service Manual KBF (E5.2) 04-2015 47
