1.3.4 ECG Waveform Display Mode with RESP

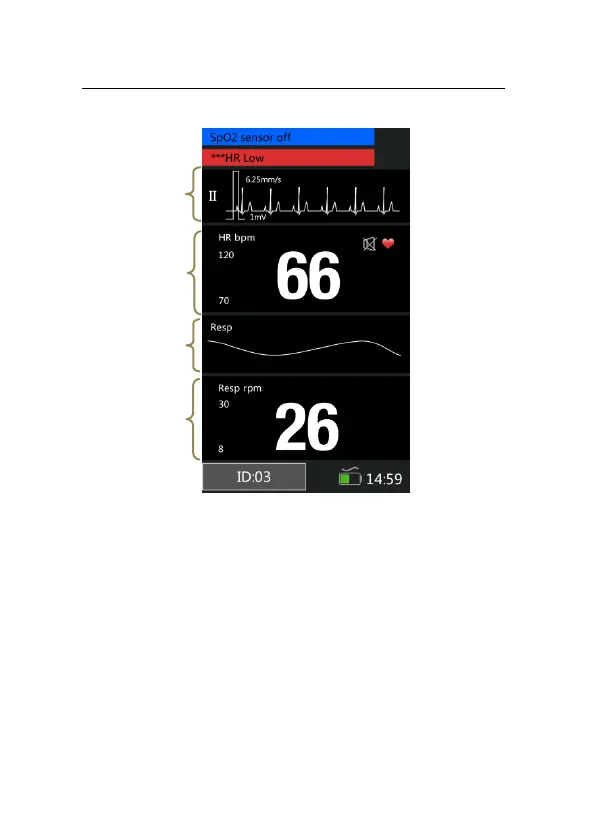

Fig 1-7 ECG Display Mode with RESP
1. ECG waveform display area: Waveform shown in the area
is current ECG waveform.
2. HR parameter area: The values shown in the area are
current HR value and its upper and lower alarm limits.
3. Resp waveform area: Resp waveform is shown in the
area.
4. Resp parameter area: The current Resp and its high and
low alarm limits are shown in the area.
2
1
3
4
