Multi-Purpose Thruline Wattmeter RF Power Analyst
27
Parts List
This section contains an illustrated list of all authorized replacement parts for
the 4391A RF power Analyst. Parts are grouped into major assemblies and sub-
assemblies.

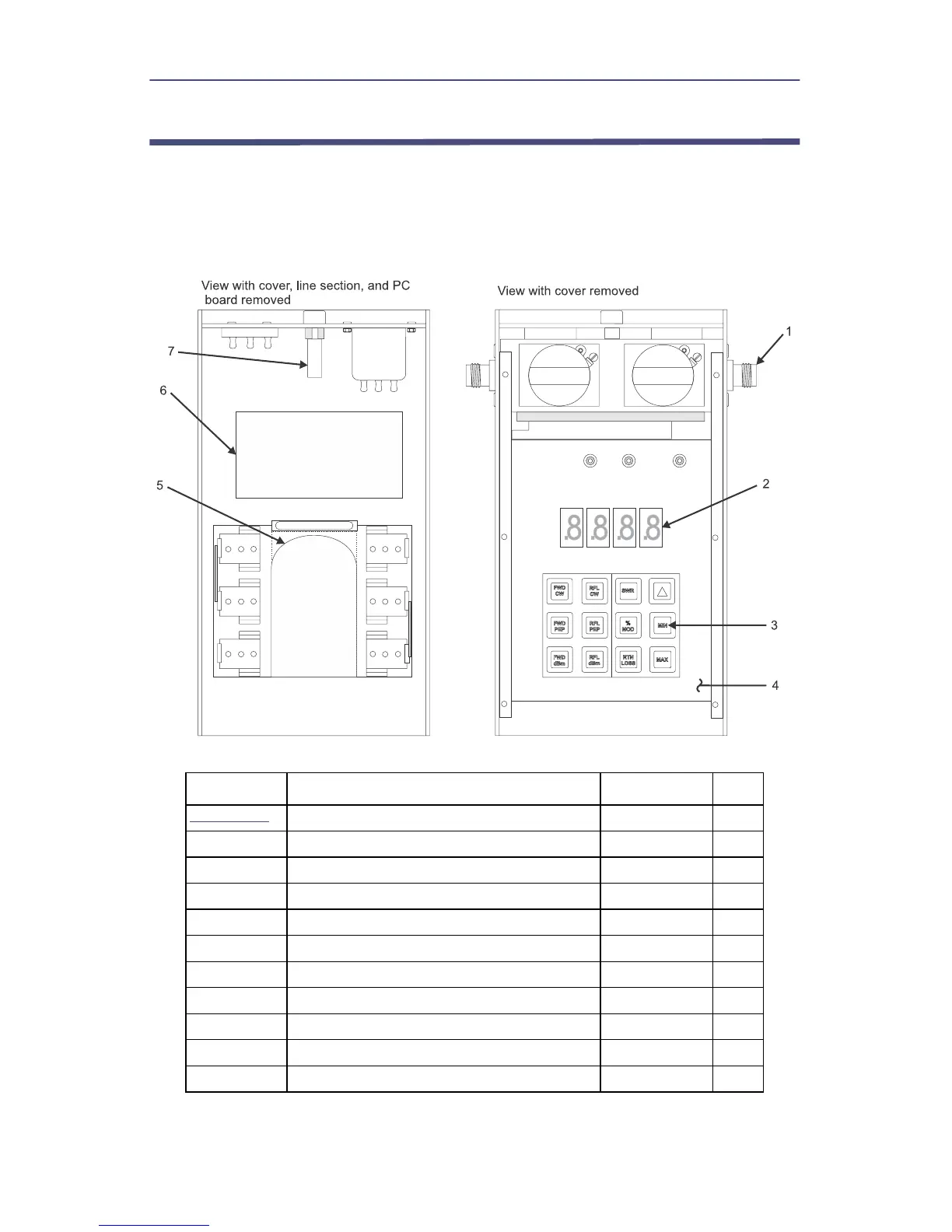

Figure 24 Parts Drawing
Item No. Description Part No. Qty
Figure 24
1 Connector, QC F-N 4240-062
2
2 LED display, (DS1 - DS4) 5-1337
4
3 Keyboard legend 4386-012
1
4 PC board, Main, assembly 4391C007
1
5 Velcro strap 5-1958
1
6 PC board assy (includes rectifier circuit) 4391B041
1
7 Fuse, Slo-Blo, IEC 1/8 amp 5A2257-7
1
N/S Battery (rechargeable) “C” cell 5A1230
6
N/S Dust plug 3610-031
2
N/S Cable, power cord, 115V / 230V 4421-055
1
N/S = not shown in figure
