Bitzer KT-230-2 User Manual

KT-230-210
Reciprocating compressors for transcrit-
ical CO
2
applications
4PTE(U)-6(L)K ..
4KTE(U)-10(L)K
4JTE(U)-10(L)K ..
4CTE(U)-30(L)K
6FTE(U)-35(L)K ..
6CTE(U)-50(L)K
Capacity regulator (Y3-1 and Y3-2) Options:
CRII-1
or CRII-1 and CRII-2
Options:
CRII-1
or CRII-1 and CRII-2
Options:
CRII-1
or CRII-1 and CRII-2
Tab.2: CM-RC-01: Peripheral devices available for compressors for transcritical CO
2
applications

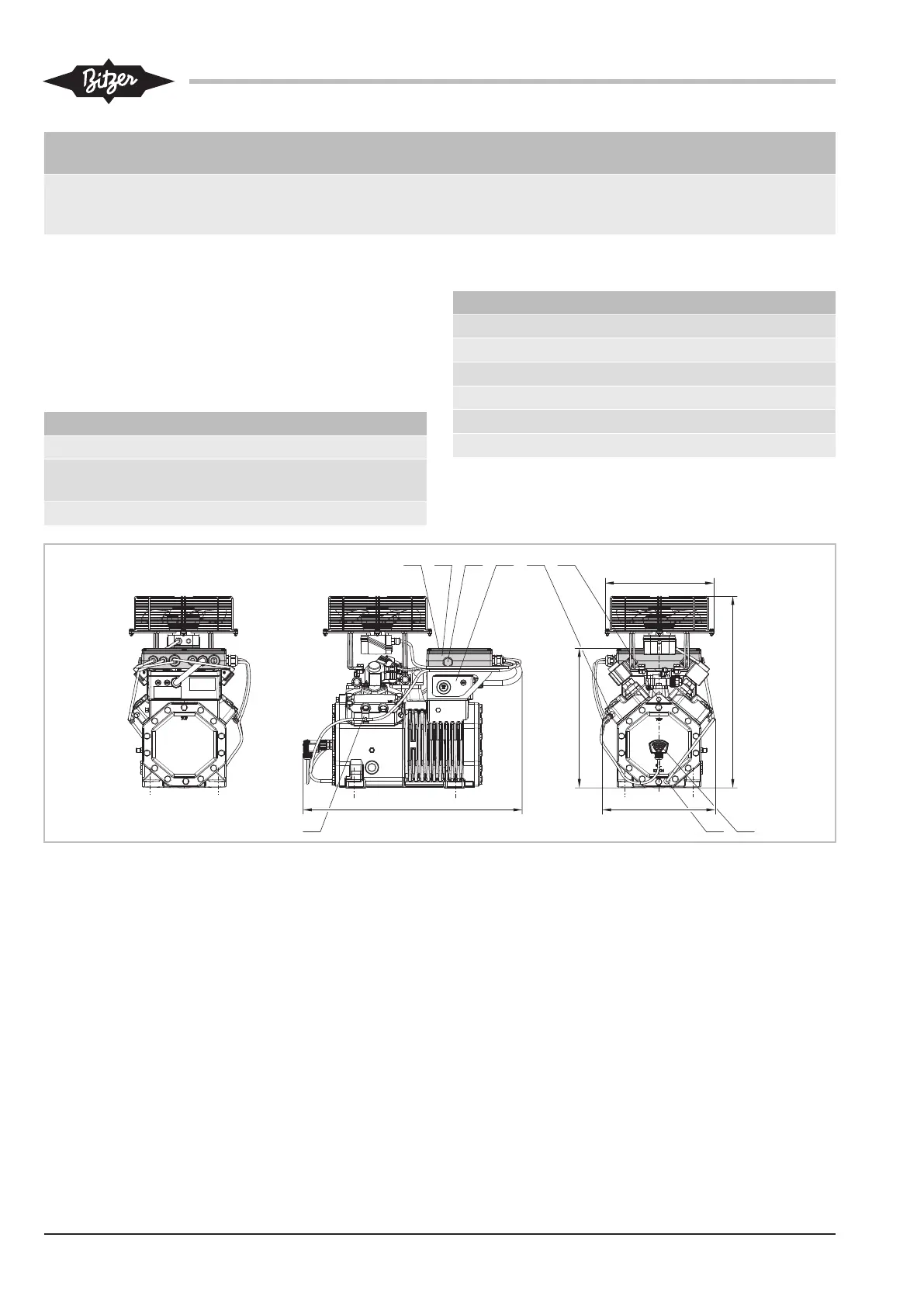

4.5 Dimensional drawings
These dimensional drawings show the maximum con-
figuration of the respective compressor series with CM-
RC-01 with all possible peripheral devices in variant
"A" (all possible capacity regulators).
Connection positions
1 Discharge gas temperature sensor
2 Connection position for high-pressure
switch
3 Cable holders
Connection positions
4 Oil heater
5 Oil monitoring
A Terminal box cover
B Module housing
C LED sight glass
D Terminal box
4.5.1 Dimensional drawings for compressors for
standard refrigerants with CM-RC-01
326
554
315
402
633
2
543
1DCBA
Fig.1: 4FES-3(Y) .. 4BES-9(Y) with CM-RC-01
