BIXOLON SRP-350plusIII Driver Manual

SRP-350plusIII
Rev. 1.02
- 37 -

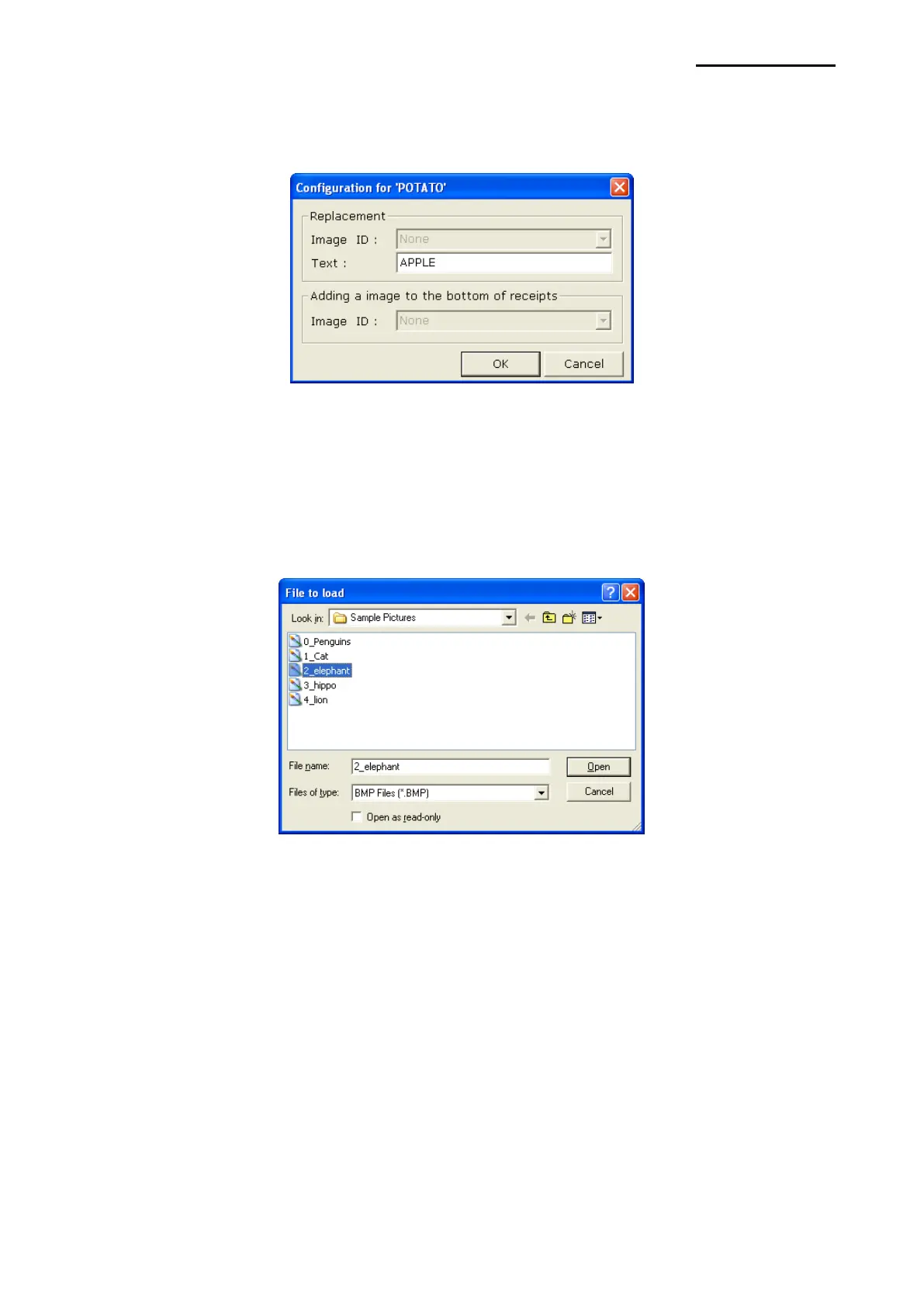

4) Click Configuration to enter a text, which is used to replace the selected Text-Key with
the text entered. For example, if you enter “APPLE” in the text box as below, the Text-
key, “POTATO” can be replaced with “APPLE”.
▶ How to replace Text-Key with a graphic image and to add it to the bottom of receipts.
1) This utility can also replace the selected Text-Key with a graphic image instead of texts
and can add a graphic image to the bottom of receipts. It is necessary to add images to
the image list.
2) Click Add New Image to browse for an image to add to the list.
3) Enter a unique name to be added, adjust the brightness, select a dithering type, and
then click OK. Repeat 2 to 3 step to add up to as much as you want.

BIXOLON SRP-350plusIII Specifications

General

Type	POS printer
Character size	24 x 24 mm
Print technology	Direct thermal
Maximum resolution	180 x 180 DPI
Product color	Gray
Maximum roll diameter	83 mm
Supported paper width	80/58 mm
Maximum printing width	72 mm
Printing media thickness	50 - 80 µm
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	10 - 80 %
USB port	Yes
Serial interface type	RS-232
USB 2.0 ports quantity	1
Connectivity technology	Wired
Wi-Fi	No
Built-in barcodes	1D, 2D, CODABAR (NW-7), Code 39, Code 93, Code-128 Codabar Library, Data Matrix, EAN13, EAN8, ITF, ITF-14, ITF-25, Micro QR Code, QR Code, UPC-A, UPC-E
Autocutter durability	1.8 million cuts
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	146 mm
Width	145 mm
Height	204 mm
