Example 2: Generating a Ramp
a) Make sure that the voltage and current of the Presets have been set first.
In this example, we use Preset A = 5V, Preset B = 10V
b) Press and hold the Menu button (~4 seconds).
c) Using the voltage knob, navigate to the “dudt SEt” option (transient mode).
d) Press the VOLTAGE KNOB to enter the transient mode.
e) Set these parameters with the following values:
Func A=0 sec. Displays “FUNCA 0000”. Step size for Preset A.
Func b=15 sec. Displays “FUNCN 0015”. Step size for Preset B.
ΔV a-b = Displays “rUN A _ b”. This step selects the first step.
Δt a-b = 5 sec: Displays “A_b_0005”. This step sets the transition time from A to B to 5
seconds.
Run t = 3 cycles: Displays “runt 0003”. Set the sequence to run 3 times.
f) In each option, make sure to press the Voltage Knob to enter the values. Press the Menu
Key to exit this Menu.
g) To generate the waveform, push the “Shift” key and then press the “Output on” button.
h) Press the OUTPUT ON button to turn the output off (backlight should be off, too).
i) To stop the cycle running, push the “Shift” key and then press “Output on” button.

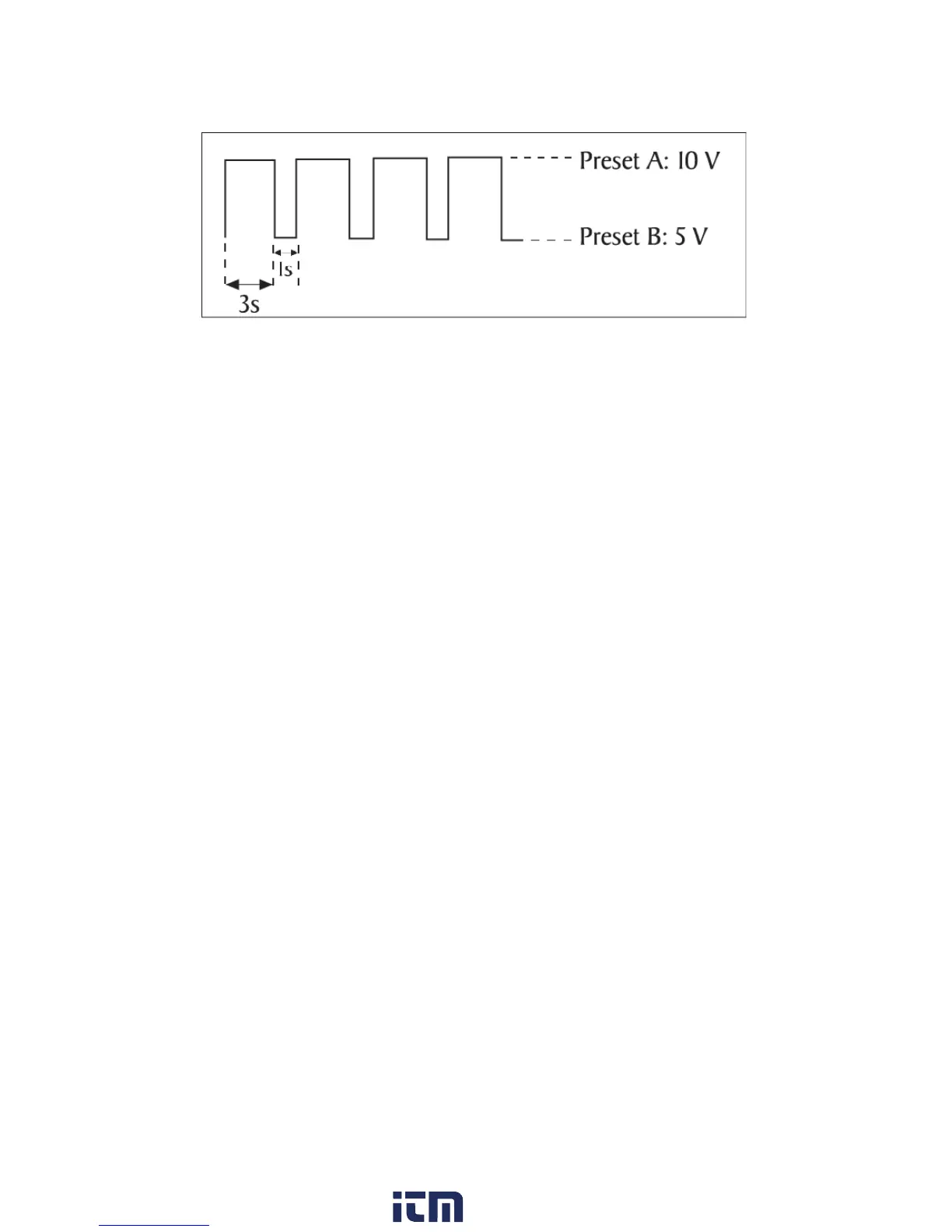

Figure 11 - Sequence Mode: Example 1
Figure 12 – Sequence Mode: Example 1
