3.6 9115/B-AT Automotive Test Functions
The 9115/B-AT power supply has a unique automotive testing feature built-in that allows the
user to run stress tests based on the DIN 40839 and ISO 16750-2:2012(E) standards. The
functions have the ability to test 12 volt and 24 volt systems. For details on the DIN 40839 and
ISO 16750-2:2012(E) standards, please see www.din.de (DIN standards) and www.iso.org (ISO
standards).
DIN 40839 Parameters
The DIN40839 function simulates a test pulse based on the DIN 40839 standard. The standard
pulse shape and parameters are shown below:

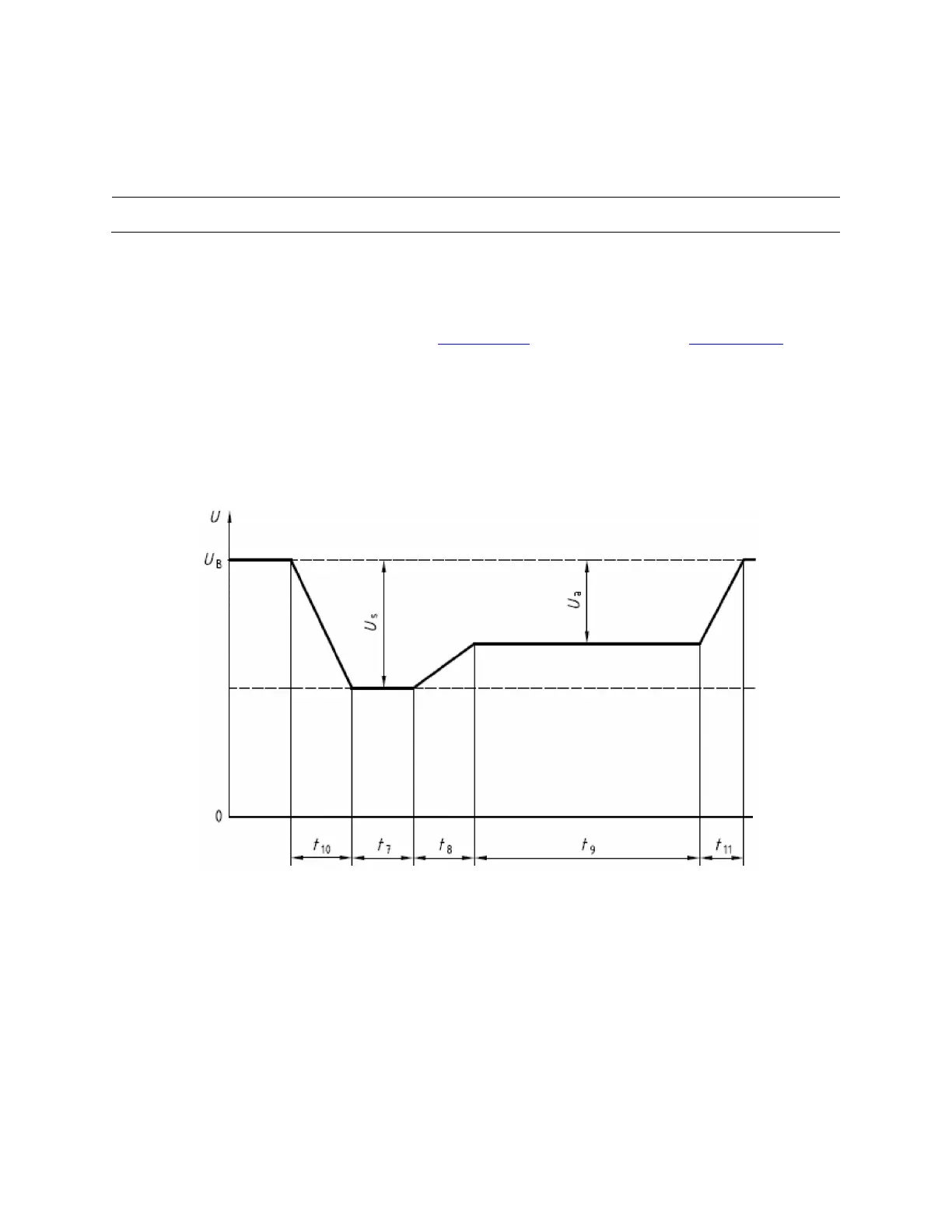

Figure 3.8 – Test Pulse waveform (DIN 40839)
Note: This functionality is only available on model 9115/B-AT
