52

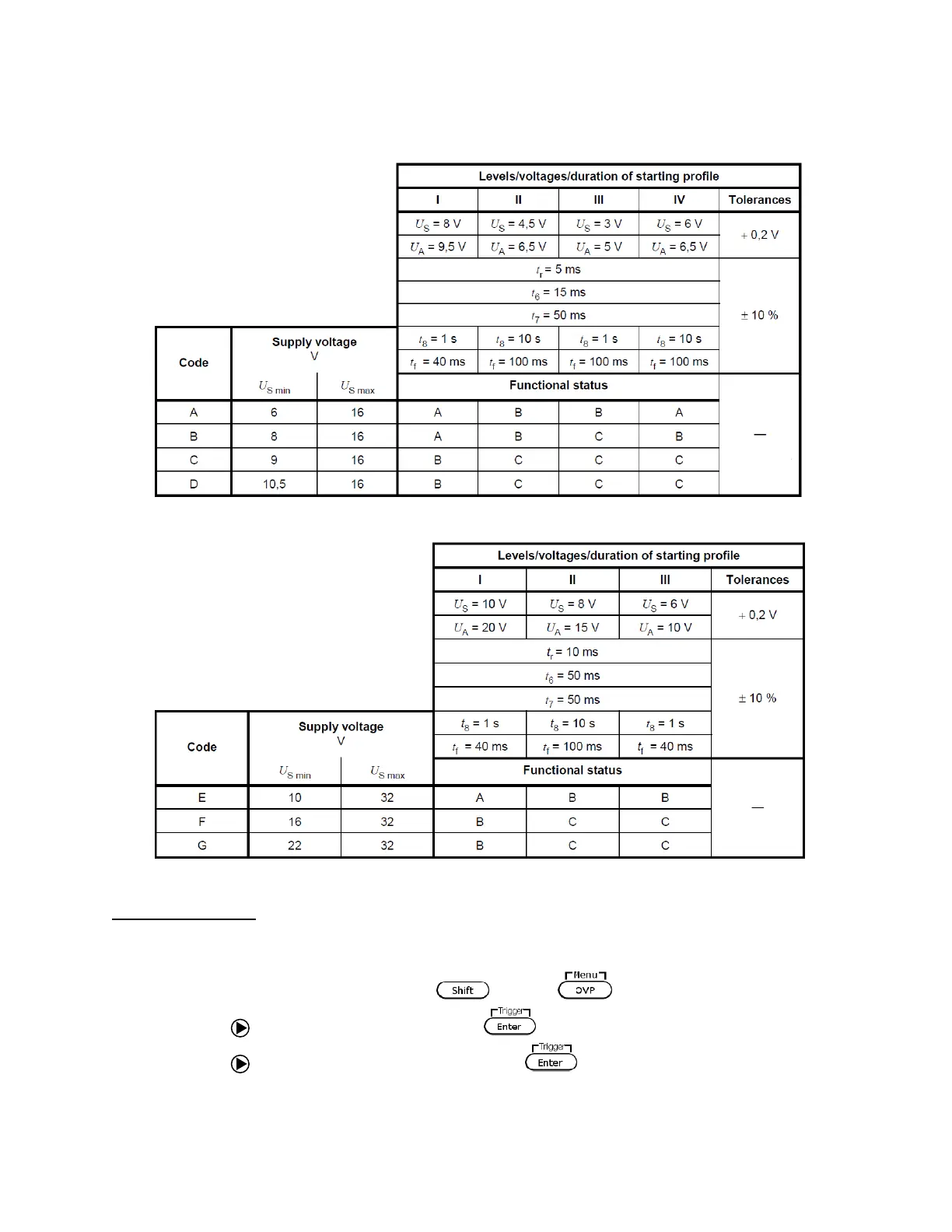

Table 3.5 – Starting profile values for 12 V system devices
Table 3.6 – Starting profile values for 24 V system devices
Short voltage drop
Follow the steps below to set up the ISO16750-2:2012(E) for Short voltage drop function:
1. Access the main menu by pressing and the .
2. Use the key to select FUNC. and press .
3. Use the key to select ISO16750-2 and press . The screen below will display:
To Next Page
