Configure Frequency
This section does not apply to noise or DC waveforms.
Press the Frequency/Period softkey to toggle between the Frequency and Period settings. The
option selected will be highlighted in blue. The current value for the waveform’s frequency or
period is now highlighted on the Waveform Parameters display section of the screen.
The adjustable frequency range is different for each model and for each type of waveforms.
See the specifications sheet section for the adjustable ranges.
Follow the steps below to configure the frequency or period of the output:
1. After selecting the waveform shape, press the Frequency/Period menu option.
2. The cursor position will now highlight the first digit of the frequency parameter display.

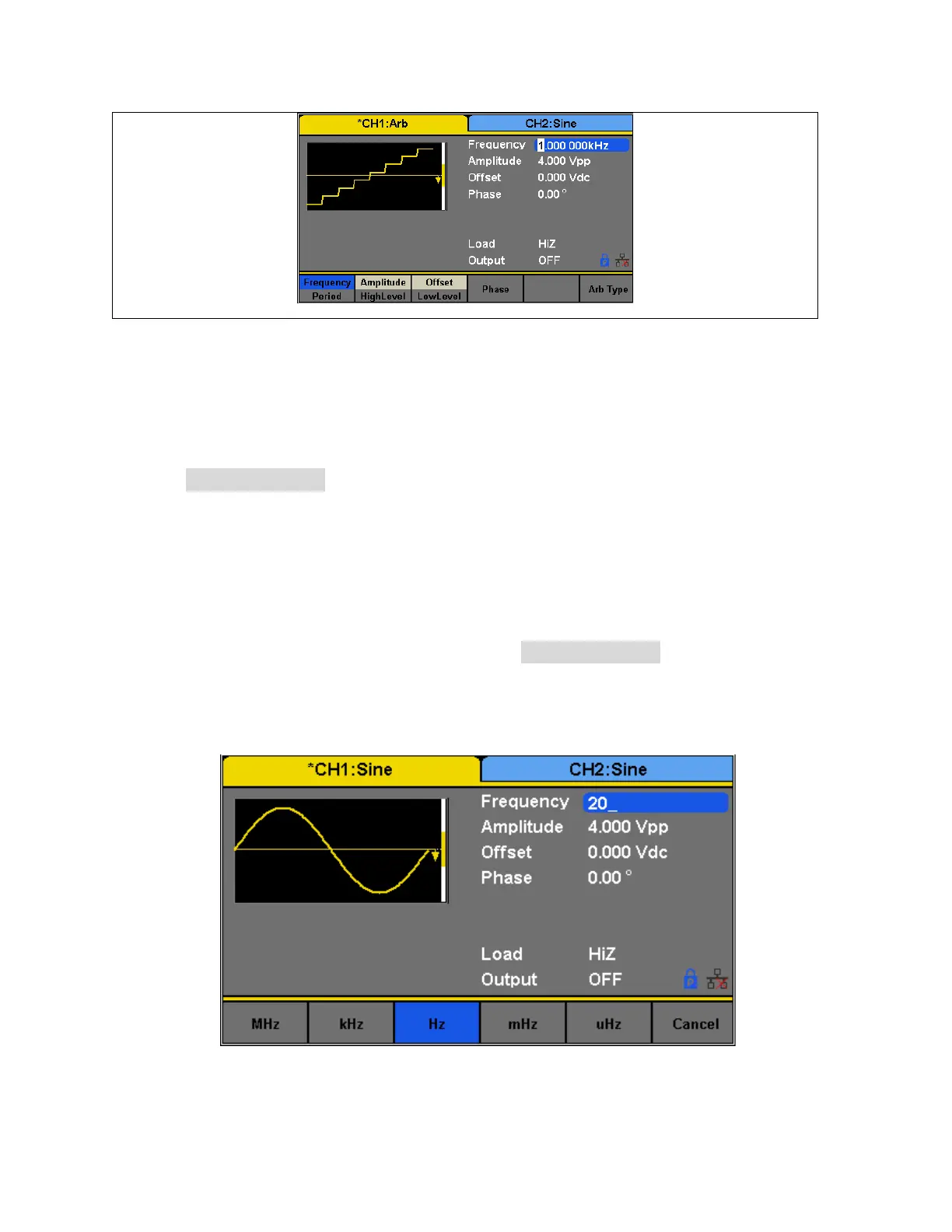

3. Use the rotary knob or the numeric keypad to change the frequency. If numeric keypad
is used, the following screen will be displayed after entering a numeric value:
