Follow the steps below to configure the pulse width or duty cycle.
1. Press the Waveforms button.
2. Press the Pulse softkey.
3. Select PulWidth softkey for pulse width adjustment or DutyCycle for duty cycle
adjustment.
4. The cursor position will now highlight the first digit of the width or duty parameter
display.
5. Use the rotary knob or the numeric keypad to change the width or the duty.
After entering the numeric value, use the menu function keys to select s, ms, us, or ns
for pulse width or select percent (%) unit for duty cycle.
Configure Rise/Fall Edge: Pulse Waveform
Follow the below steps to setup rise and fall time.
1. Press the Waveforms button.
2. Press the Pulse softkey.

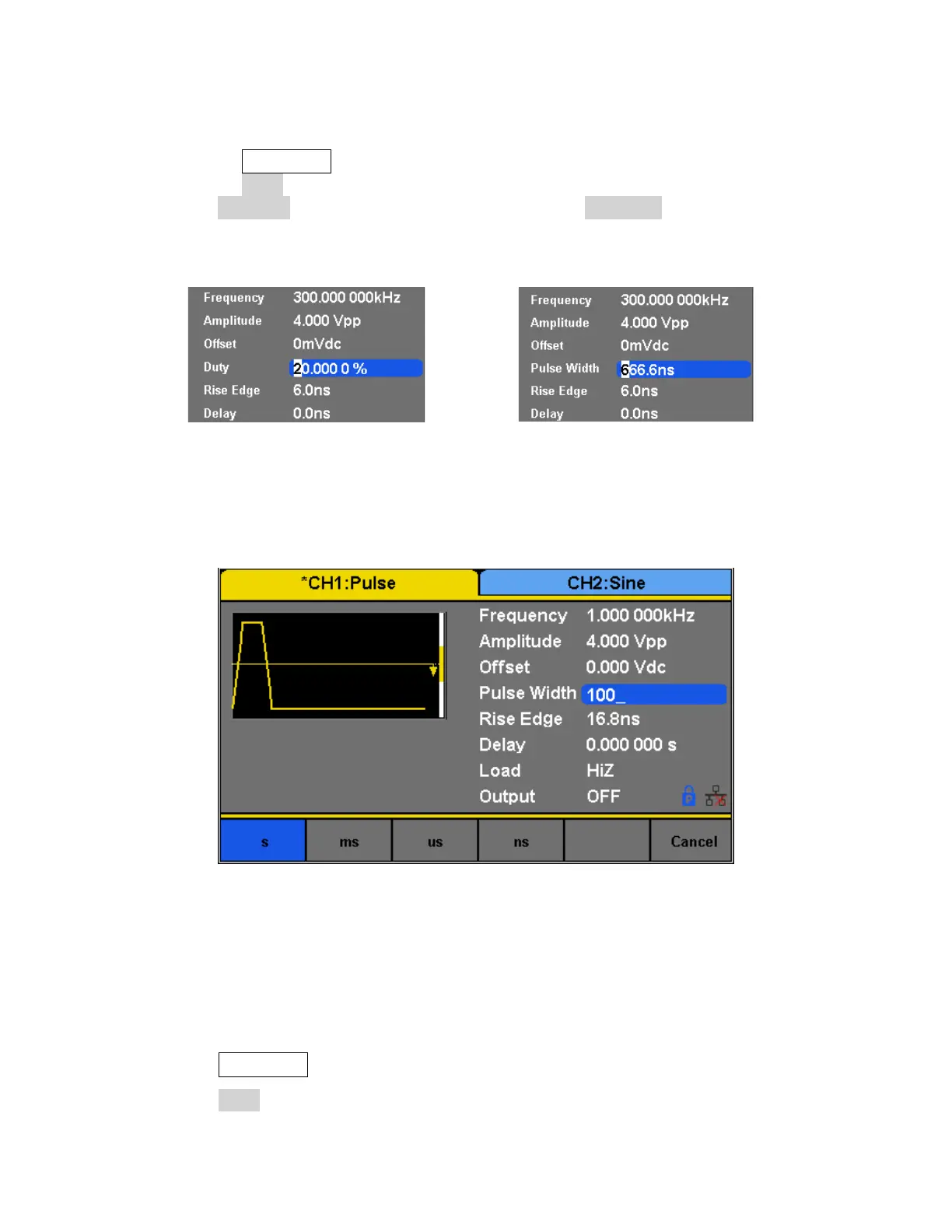

Figure 13 - Pulse Width or Duty Cycle
Figure 14 - Pulse Width
