BK Precision BK4053B User Manual

39
Item Menu
Function
Type
Set the harmonic type to “odd”, “ever” or “all”.
Order
Set the order of the harmonic.
Harmonic
Ampl
Set the amplitude of the harmonic.
Harmonic
Phase
Set the phase of the harmonic.
Return
Return to the sine parameters menu.
To Select the Harmonic Type
The 4050B can output odd harmonics, ever harmonics and user-defined orders of harmonics.
1. Press TYPE TO SELECT THE DESIRED HARMONIC TYPE.
2. Press Even, and the instrument will output fundamental waveform and even harmonics.
3. Press Odd, and the instrument will output fundamental waveform and odd harmonics.
4. Press All, and the instrument will output the fundamental waveform and all the user-defined
orders of harmonics.
To Set the Harmonic Order

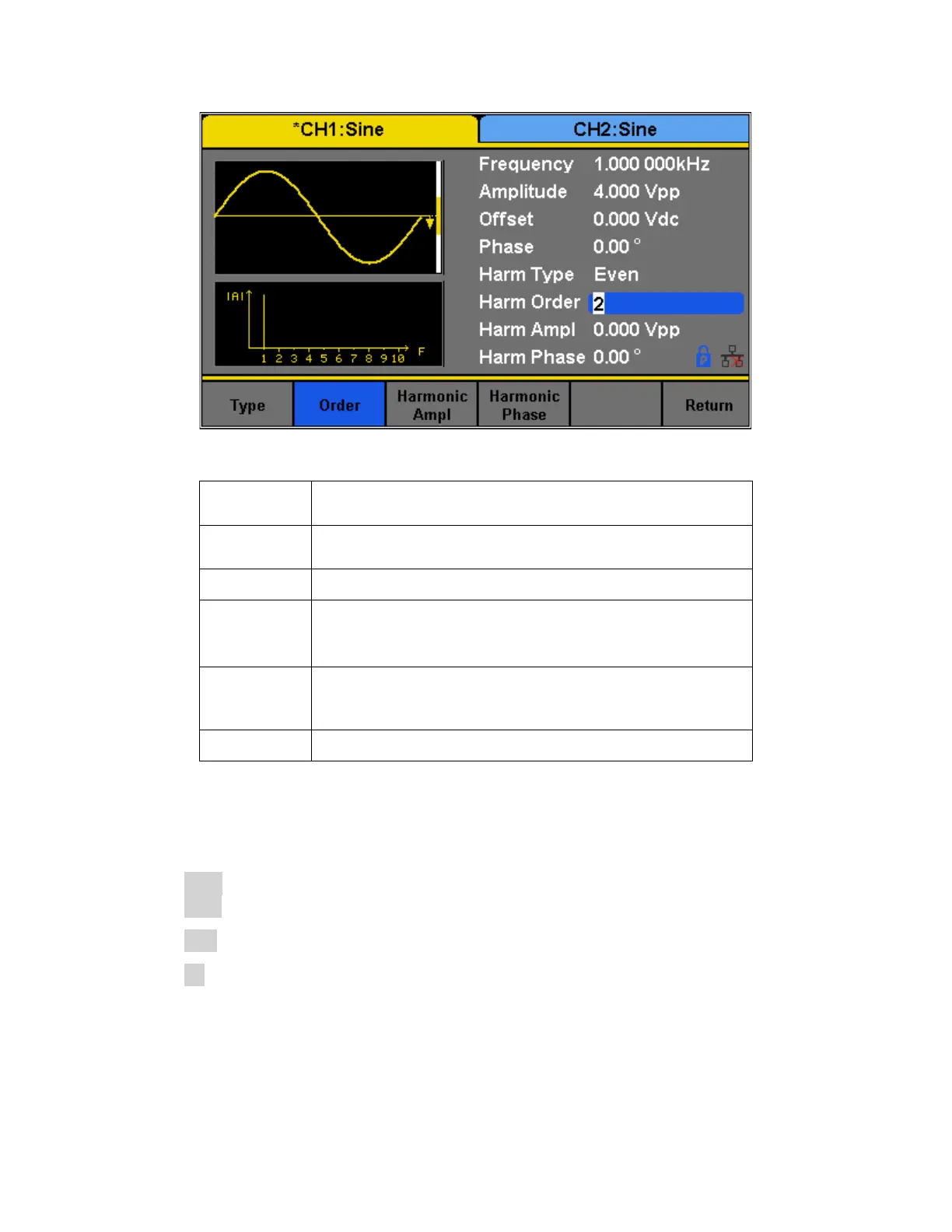

Figure 27 - Harmonic Generator
Table 6 - Harmonics Generator Menu
