CHAPTER 8: OSD FUNCTIONS
Absolute mouse:
This feature can be used to enable interoperability with KM switches with built-in “Glide & Switch” capability such as ServSwitchTC
and Freedom. For normal usage, where mouse is directly connected to Receiver, then the Default or Basic options should be used.
OSD option:

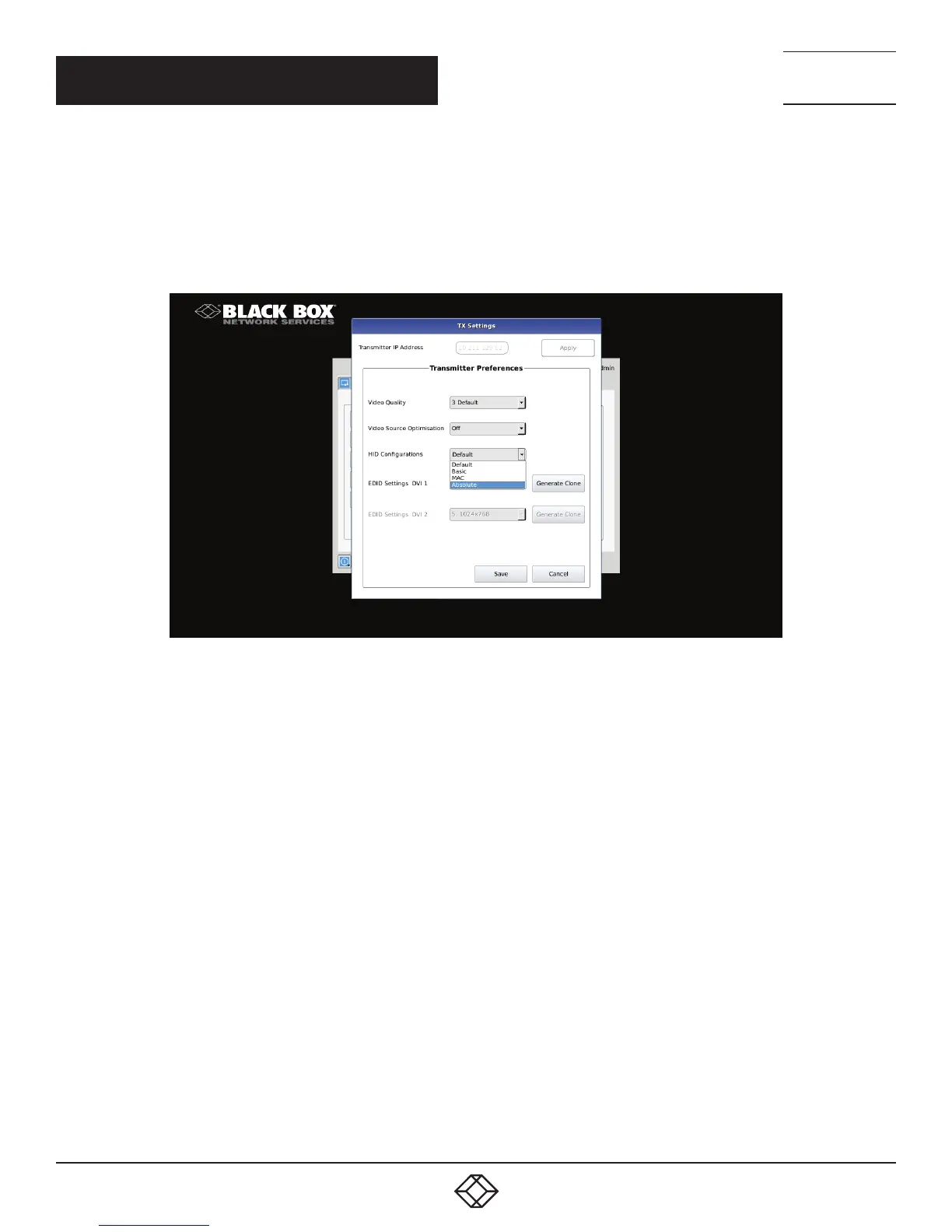

FIGURE 8-22. ABSOLUTE MOUSE OSD OPTION
Video Source Optimization
The transmitter can be configured to handle different applications by changing the way it handles the video signal if it natively
has embedded noise (i.e. from a VGA to DVI converter). You can choose to use “DVI optimized”, “VGA high performance”, “VGA
optimized”, or “VGA low bandwidth” settings. You may change these options to get the best performance out of the transmitter.
EDID Settings
The transmitter can support native EDID options such as “1920x1080”, “1920x1200”, “1680x1050”, “1280x1024”, “1024x768”, or
you can choose to use the remote monitor EDID by clicking on the Generate Clone button which will copy the remote EDID to the
transmitter. The computer may need to be restarted in order for the settings to work. If you find that changing the EDID settings
makes the remote monitor blank out, you may need to select a different option to make it work.
Transmitter Network Settings
The administrator can click the Network Settings button to edit the Transmitter Network Settings.
To change the IP address settings for a Transmitter, the administrator can enter the new IP address, subnet mask, and gateway, and
then click on the Apply button.
