CHAPTER 8: OSD FUNCTIONS

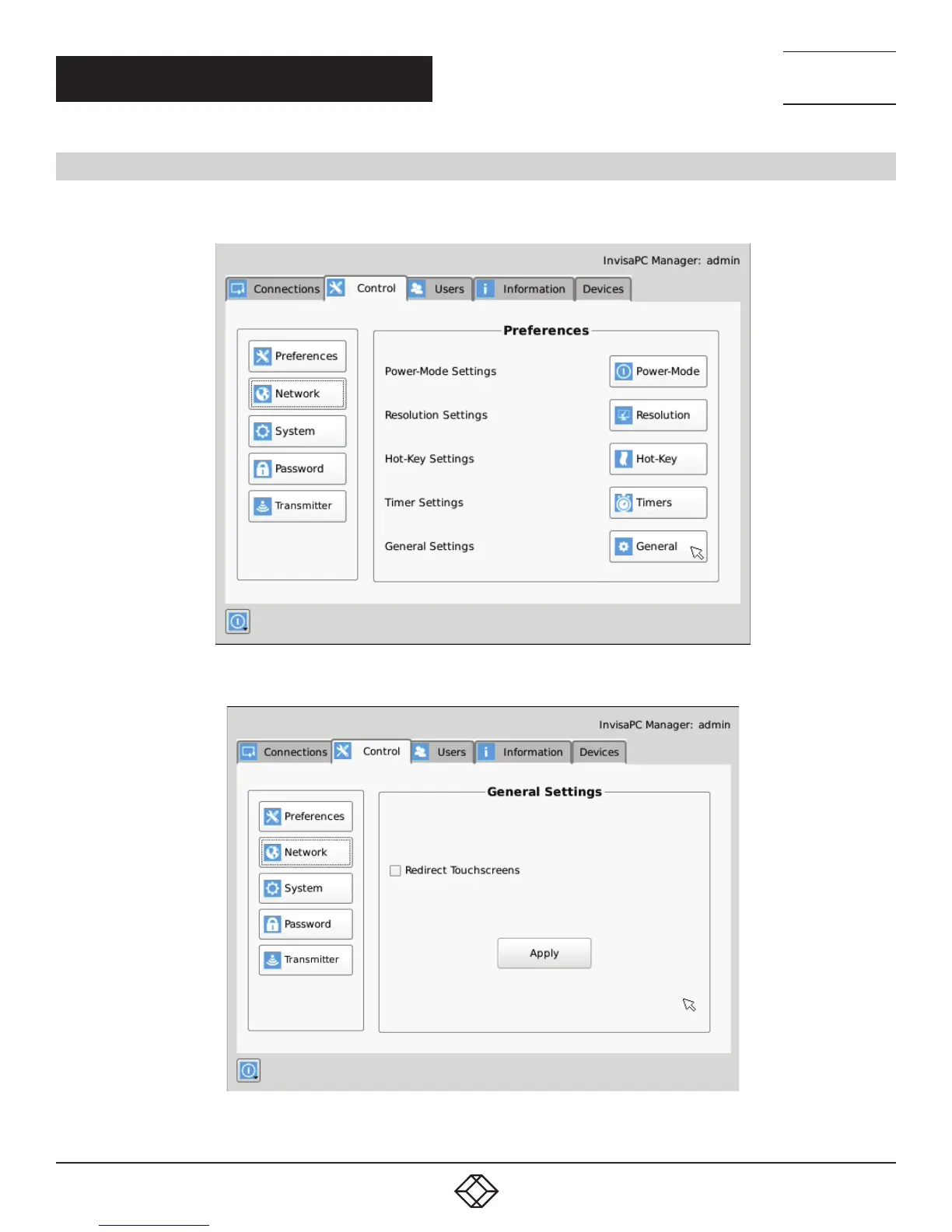

8.6 CONTROL TAB
The Control Tab on the OSD enables an administrator to change the configuration of the Emerald SE system. The Control Tab is
shown in Figure 8-8.
FIGURE 8-8. CONTROL TAB
FIGURE 8-9. GENERAL SETTINGS
