CHAPTER 8: OSD FUNCTIONS
There are five functions that can be accessed on this tab:
1. Preferences – allows users to change preference settings for:
i. Power-Mode Settings – allows changing of the power mode configuration.
ii. Resolution Settings – allows change of preferred resolution for OSD screens and Virtual connections.
iii. Hot-Key Settings – allows changing of the active hot-key for keyboard short-cuts.
iv. Timer Settings – allows setting of pre-emption timer and various inactivity timers
v. General Settings - used to redirect touch screens
2. Network – allows administrator to change network parameters for the Emerald SE Receiver or Manager.
3. System – allows upgrading of unit firmware, reset unit to factory defaults, and to save/restore unit configuration to a USB drive.
4. Password – change the administrator or user password.
5. Transmitter – allows changing of Transmitter parameters.
8.6.1 PREFERENCES
Resolution
The Resolution button allows an administrator or power user to set the preferred resolution for the RDP Connection and for the
OSD. By default, both the RDP Resolution and the OSD Resolution are set to Auto.
The RDP Connection Resolution allows the resolution to be changed for an RDP connection, (i.e. defines the resolution that the
virtual desktop will be accessed with). If the preferred resolution is not supported, the Receiver will use the next highest resolution
supported by both monitor and Receiver.
The OSD Resolution is set to Auto by default, but can be changed to the available OSD resolutions if the user wants to set
a specific resolution. This setting has no effect when connecting to an Emerald SE Transmitter.
Click Apply button to save the change.

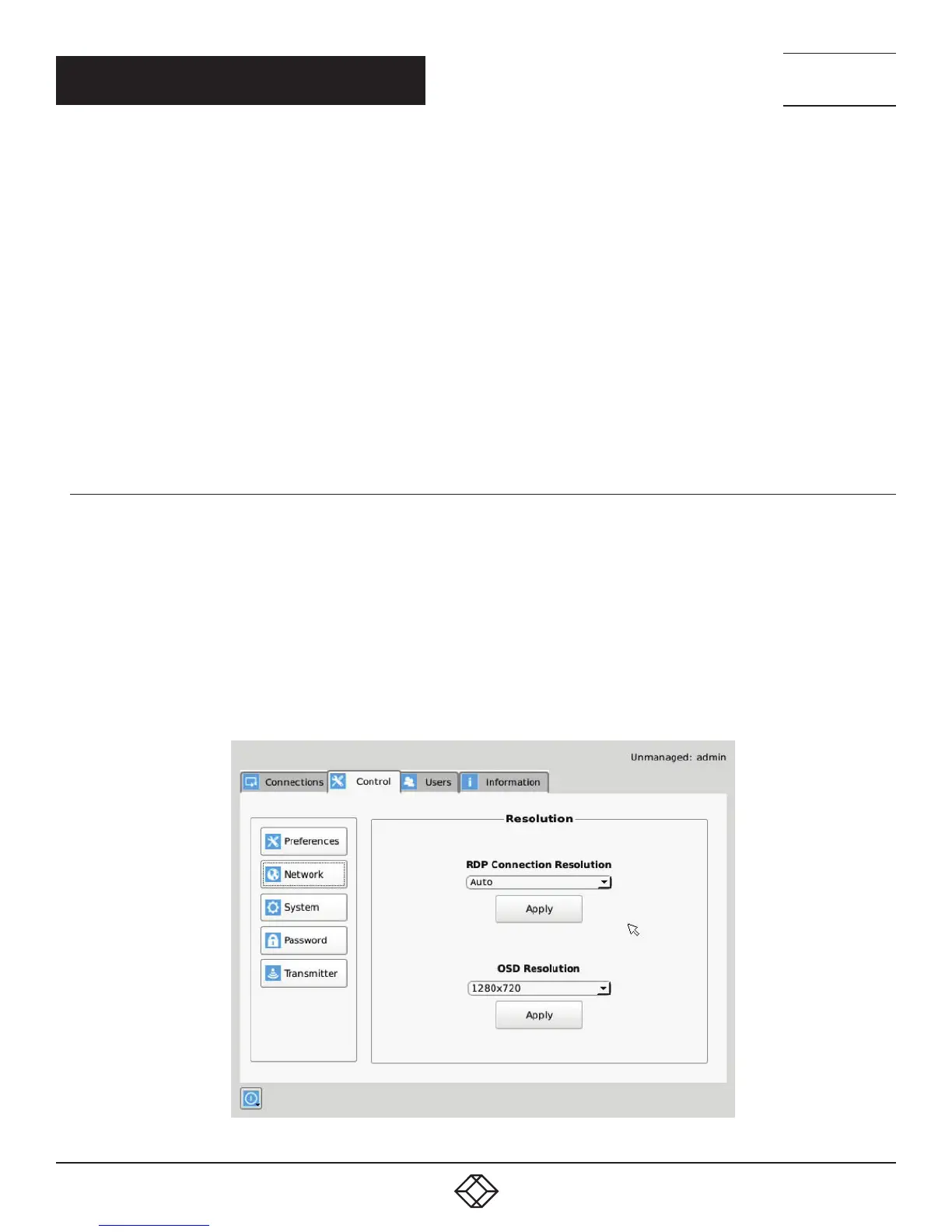

FIGURE 8-10. RESOLUTION SCREEN
