CHAPTER 5: INSTALL ATION
5.6 CONNECT THE EMERALD SE TRANSMITTER
Before connecting the Emerald SE Transmitter to the remote workstation, ensure that the resolution and the refresh rate of the
remote workstation are supported by the Emerald SE system. Set the screen resolution and refresh rate of the remote workstation.
Unsupported settings will cause blank or distorted video at the Receiver.
The recommended sequence to connect the Transmitter is:
1. Turn off the remote workstation.
2. The Emerald SE Transmitter has one USB connector. Connect it to a corresponding USB port on the remote workstation.
3. Connect the video connector(s) on the Emerald SE Transmitter to the appropriately labeled port on the workstation(s) using the
DVI cable(s).
4. Connect one end of the UTP cable to the Emerald SE Transmitter’s RJ-45 connector and turn on the workstation.
5. Route the other end of the UTP cable to the location you have chosen for the Emerald SE Receiver. If necessary, you can extend
the UTP cable via an Ethernet switch (subject to normal Ethernet cabling practices).
6. Plug the external power supply’s 2.5-mm connector into the DC power jack on the rear of the Emerald SE Transmitter.
7. Connect the detachable power cord to the power supply.
8. Plug the power cord into an appropriate wall outlet. The transmitter powers on automatically.
9. Turn on power for the remote workstation.
NOTE: Use only the power supply provided by Black Box.
1

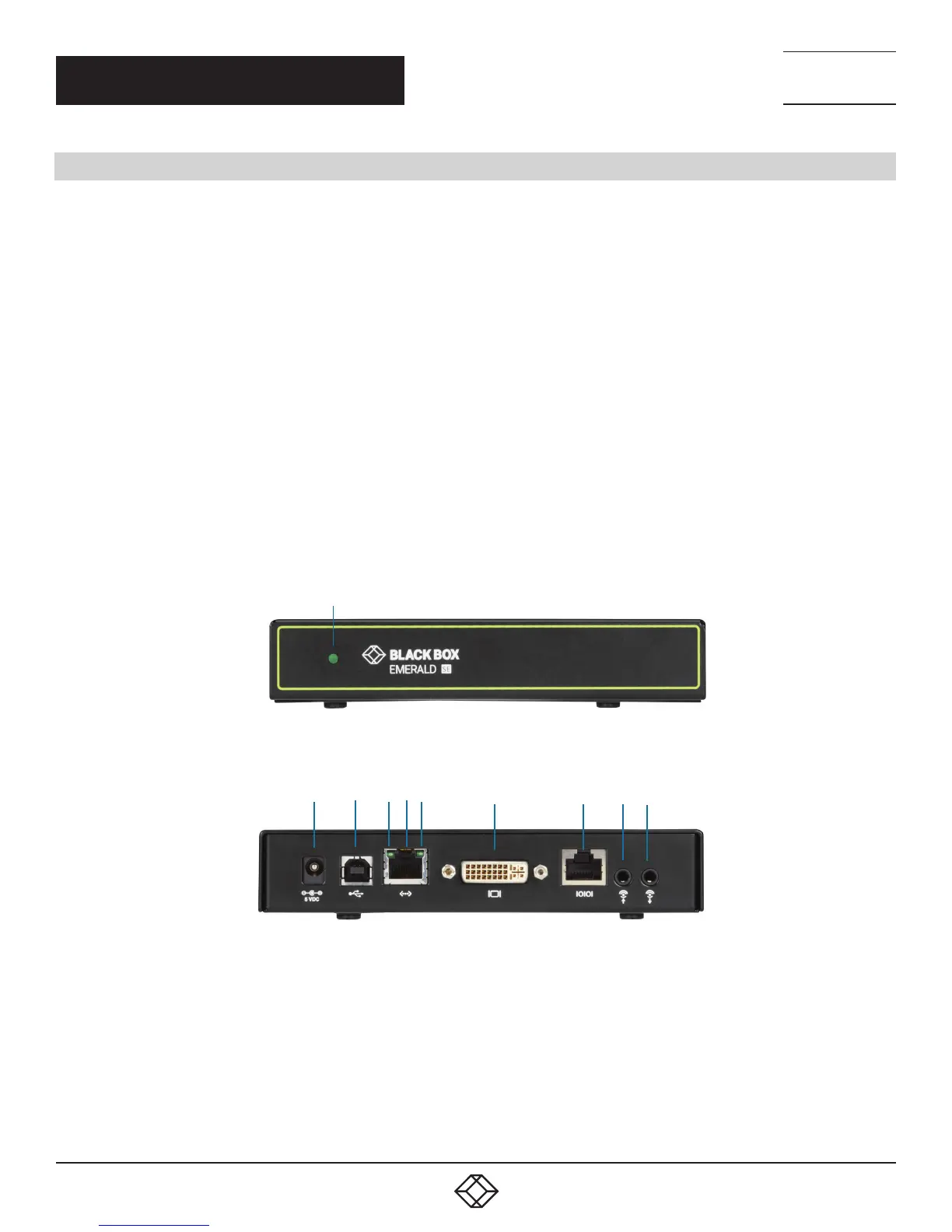

FIGURE 5-5. FRONT VIEW OF THE EMERALD SE TRANSMITTER, SINGLE-HEAD (EMD2000SE-T)
2 3 4 5 6 7 8 9 10
FIGURE 5-6. REAR VIEW OF THE EMERALD SE TRANSMITTER, SINGLE-HEAD (EMD2000SE-T)
