GAS CONVECTION OVENS 3 INSTALLATION
OVEN ASSEMBLY
LEG ATTACHMENT
1. Push the oven onto a lift with the bottom of the oven down.
2. Align the threaded stud in each leg with the nut located inside each bottom corner of the oven frame. Turn the legs
clockwise and tighten to the nearest full turn.
3. Align the two leg plate holes in each leg with those in the oven bottom. Secure each leg using two 1/2” bolts.
NOTE: If using casters see CASTER ASSEMBLY before proceeding.
4. Level the oven by screwing the adjustable leg feet in or out as necessary.

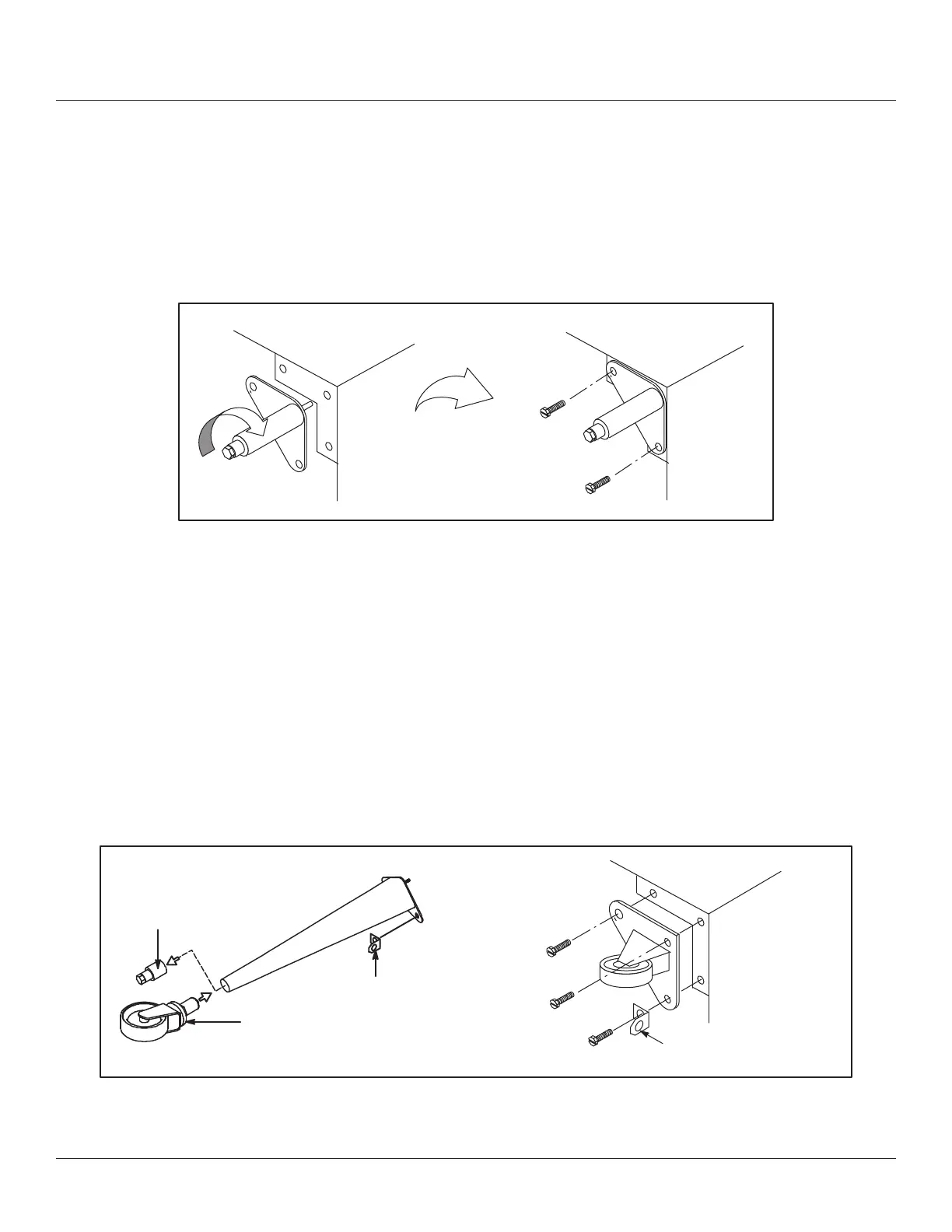

6" (15 cm Legs Shown
Figure 1
CASTER ASSEMBLY
NOTE: Install the locking casters on the front of the oven. Install the non-locking casters on the back of the oven.
NOTE: Use a gas hose restraint on all units with casters. See page 6.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown. Tighten the lock nuts to secure the casters.
Low Prole Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly plate with those in the oven bottom. Secure each caster using three 1/2”
bolts.
Adjustable
Leg Foot
Caster Assembly
Gas Hose
Restraint Bracket
Gas Hose Restraint Bracket
Figure 2
