GAS CONVECTION OVENS 7 INSTALLATION
VENTILATION
DIRECT FLUE ARRANGEMENT
When the installation of a mechanically driven exhaust hood is impractical the oven may be vented by a direct ue arrange-
ment.
WARNING!!
It is essential that the direct ue be installed as follows. Incorrect installation will result in unsatisfactory
baking and oven damage.
The ue must be class B or better. The height of the ue should rise 6-8 ft (2-2.5 m) above the roof of the building or any
proximate structure. Never direct vent the oven into a hood. The ue should be capped with a UL Listed type vent cap to
isolate the unit from external environmental conditions.
The direct vent cannot replace air consumed and vented by the oven. Provisions must be made to supply the room with
sufcient make-up air. Total make-up air requirements for each oven section should be approximately 30 CFM (.85 m3) per
section. To increase the supply air entering the room, a ventilation expert should be consulted.
Installing the draft hood
Ovens ordered for direct venting are supplied with a draft hood. Install the draft hood as follows:
1. Place the draft hood over the ue connector.
2. Secure both ends with the sheet metal screws provided.
Front of Oven
Draft Hood
Flue

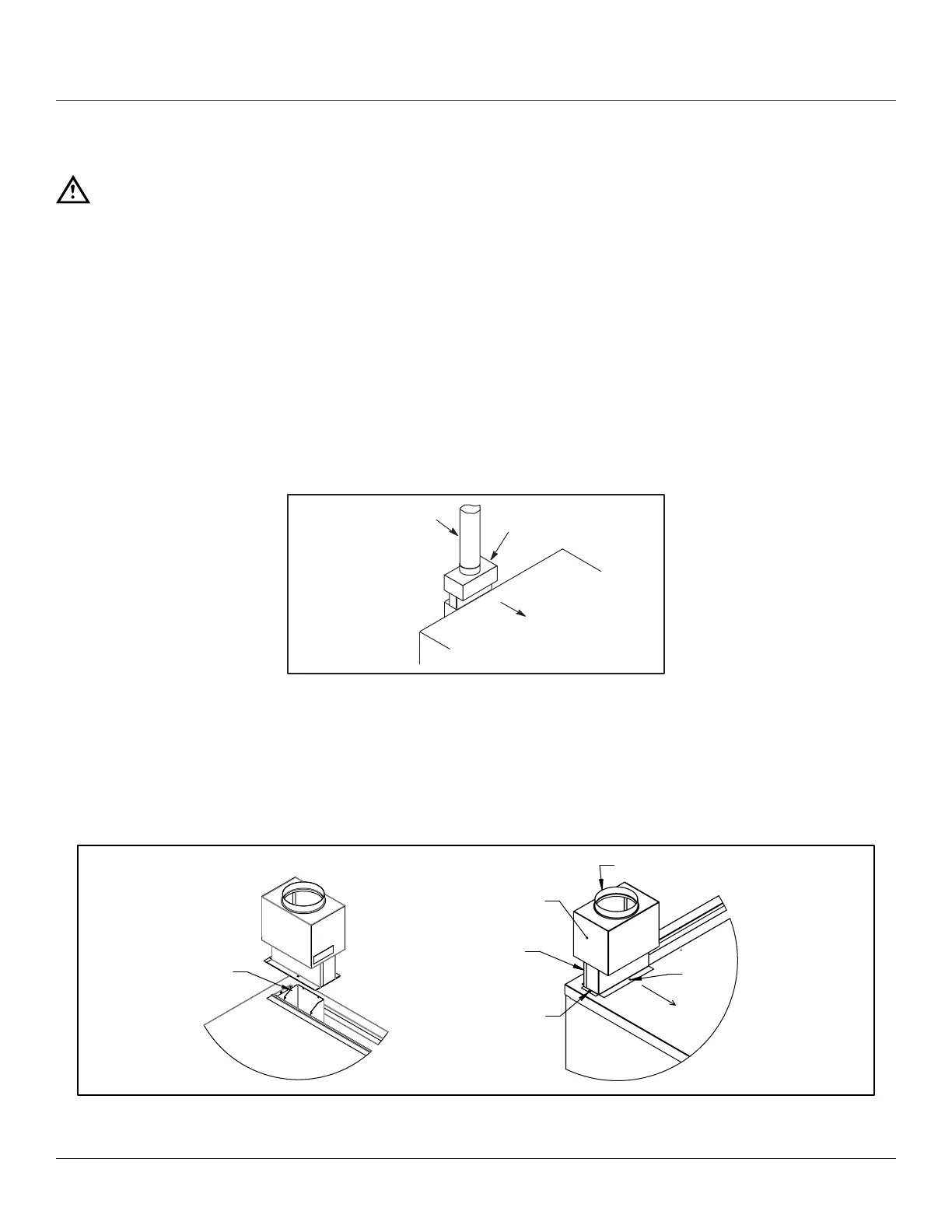

Figure 7
ES Models
1. Install draft diverter using the screws provided as shown below.
2. Place the draft hood over the draft diverter.
3. Secure both ends with the sheet metal screws provided.
Flue
Drafthood
Front of
Oven
Two screws
in back
One screw
into frame
One
screw
Draft diverter
Figure 8
