GAS CONVECTION OVENS 9 INSTALLATION
UTILITY CONNECTION
GAS HOSE RESTRAINT
If the oven is mounted on casters, a commercial exible connector with a minimum of 3/4” (1.9 cm) inside diameter must
be used along with a quick connect device. The restraint, supplied with the oven, must be used to limit the movement of the
unit so that no strain is placed upon the exible connector. With the restraint fully stretched the connector should be easy
to install and quick connect.
The restraint (ie: heavy gauge cable) should be 1,000 lb. (453 kg) test load and should be attached without damaging the
building. DO NOT use the gas piping or electrical conduit for the attachment of the permanent end of the restraint! Use an-
chor bolts in concrete or cement block. On wooden walls, drive hi test wood lag screws into the studs of the wall.
1. Mount the supplied bracket to the leg bolt just below the gas inlet.
2. Attach the clip on restraining cable to the mounting bracket.
WARNING!!
If the restraint is disconnected for any reason it must be reconnected when the oven is returned to its origi-
nal position.

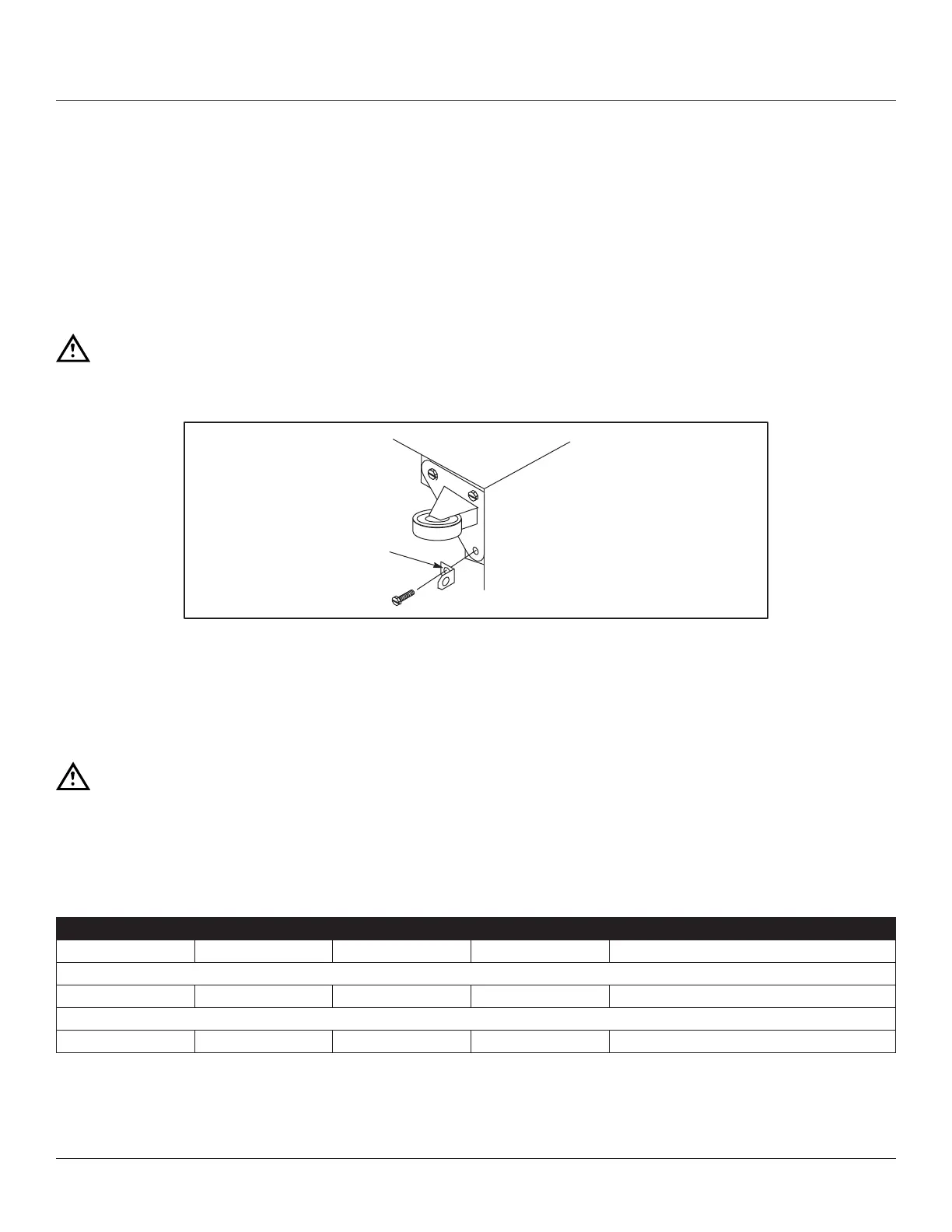

Restraint Cable
Bracket
Double stacked unit shown. Use the
same procedure for single units.
Back of Oven
Figure 10
ELECTRICAL CONNECTION
Wiring diagrams are located in the control compartment and on the back of the oven. This oven is supplied for connection
to 115 volt grounded circuits. The electric motor, indicator lights and related switches are connected through the 6’ electric
supply cord found at the rear of the oven.
WARNING!!
This appliance is equipped with three prong grounding type plug for your protection against shock hazard
and should be plugged directly into a properly grounded three prong receptacle. DO NOT cut or remove
the grounding prong from this plug.
THE BLODGETT OVEN COMPANY CANNOT ASSUME RESPONSIBILITY FOR LOSS OR DAMAGE SUFFERED AS A
RESULT OF IMPROPER INSTALLATION.
ELECTRICAL SPECIFICATIONS
Hz Volts Phase Amps Electrical Connection
U.S. & Canadian Installations
60 115 1 6 Cord set provided
General Export Installations
50 220-240 1 3 Size per local code
