Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 12 DFG-100/200
Ref. Part
No. No. Description
13 NLA Controller- Intelliplus
36735 Conversion Kit to IQ2 Controller
14 23392 Probe, Temperature
1 18868 Mode Selector Switch
5 24181 Knob, Time & Temp Qty 2
2 15934 Knob, Mode Selector
3 19620 Rocker Switch, DPST, Black
7 90043 Relay, Motor, DPDT, 120V, 30 Amp.
9 90034 Grounding Lug
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con.)

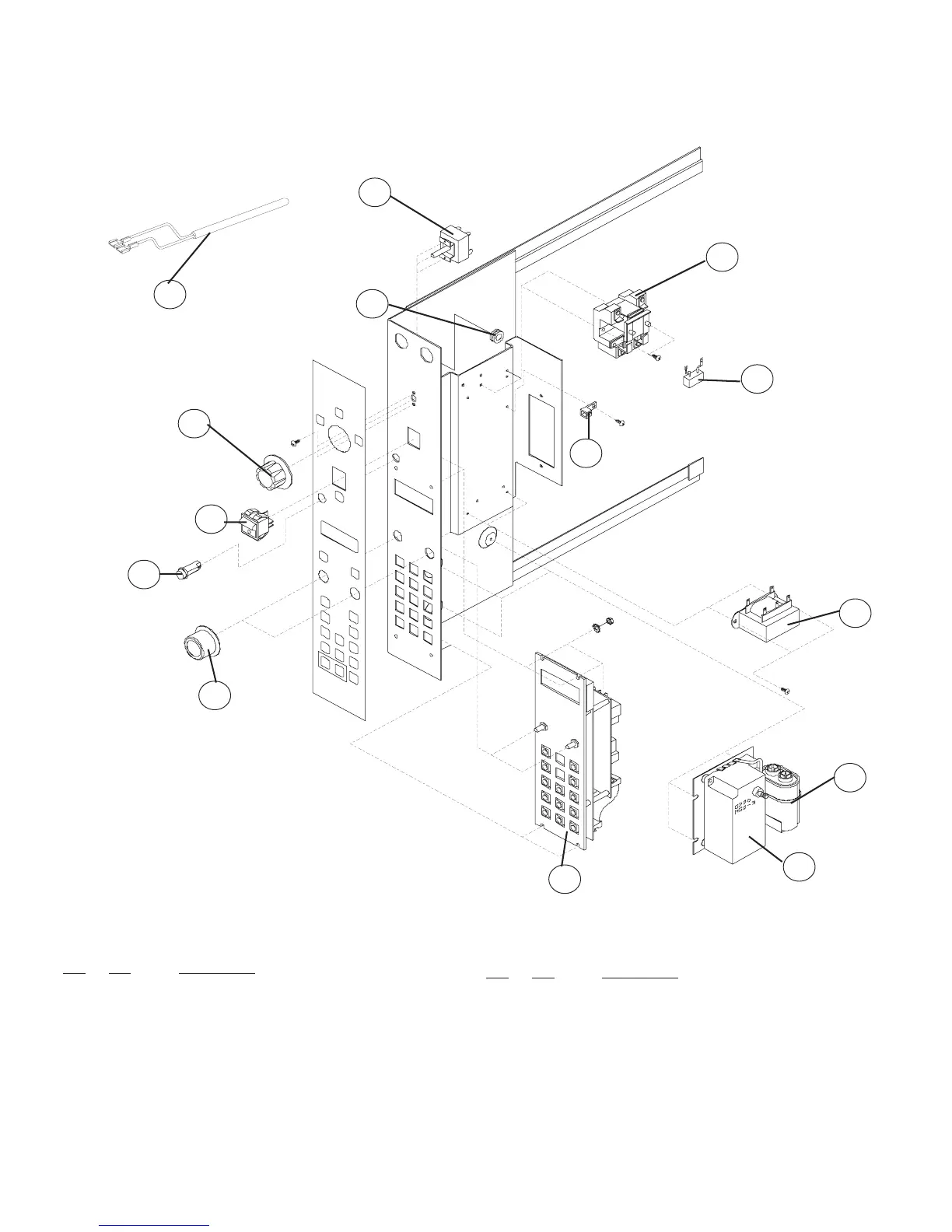

INTELLIPLUS CONTROLS
2 SPEED ONLY
13 KEYS
20355
Transformer
10
20348
Spark Box
12
90034
Grounding
Lug
9
23086
Capacitor
8
90043
Relay, Motor,
DPDT 120V
7
18868
Mode Selector
Switch
1
15847
Grommet
6
15934
Knob
2
19620
Rocker Switch
3
18265
Indicator Light
4
24181
Knob
5
23391
Controller
Intelliplus
13 Key
13
23077
Capacitor,
Electrolytic
2 SP
11
23392
Probe,
Temperature
14
Ref. Part
No. No. Description
12 20348 Spark Box Nat & LP
11 23077 Capacitor, Electrolytic, 2SP
4 18265 Indicator Light, Red, Round, 28V
10 20355 Transformer, 115V to 24V
8 23086 Capacitor
23394 Control Panel w/ Decal Assy, Intelliplus
21844 Wiring Harness, front Intelliplus
20009 Harness, Rear Connecting
21134 Axial Fan, Low Velocity, 115V, 60 HZ Qty 2

Blodgett DFG-100 Specifications

General

Brand	Blodgett
Model	DFG-100
Category	Convection Oven
Language	English
