Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 30 DFG-100/200

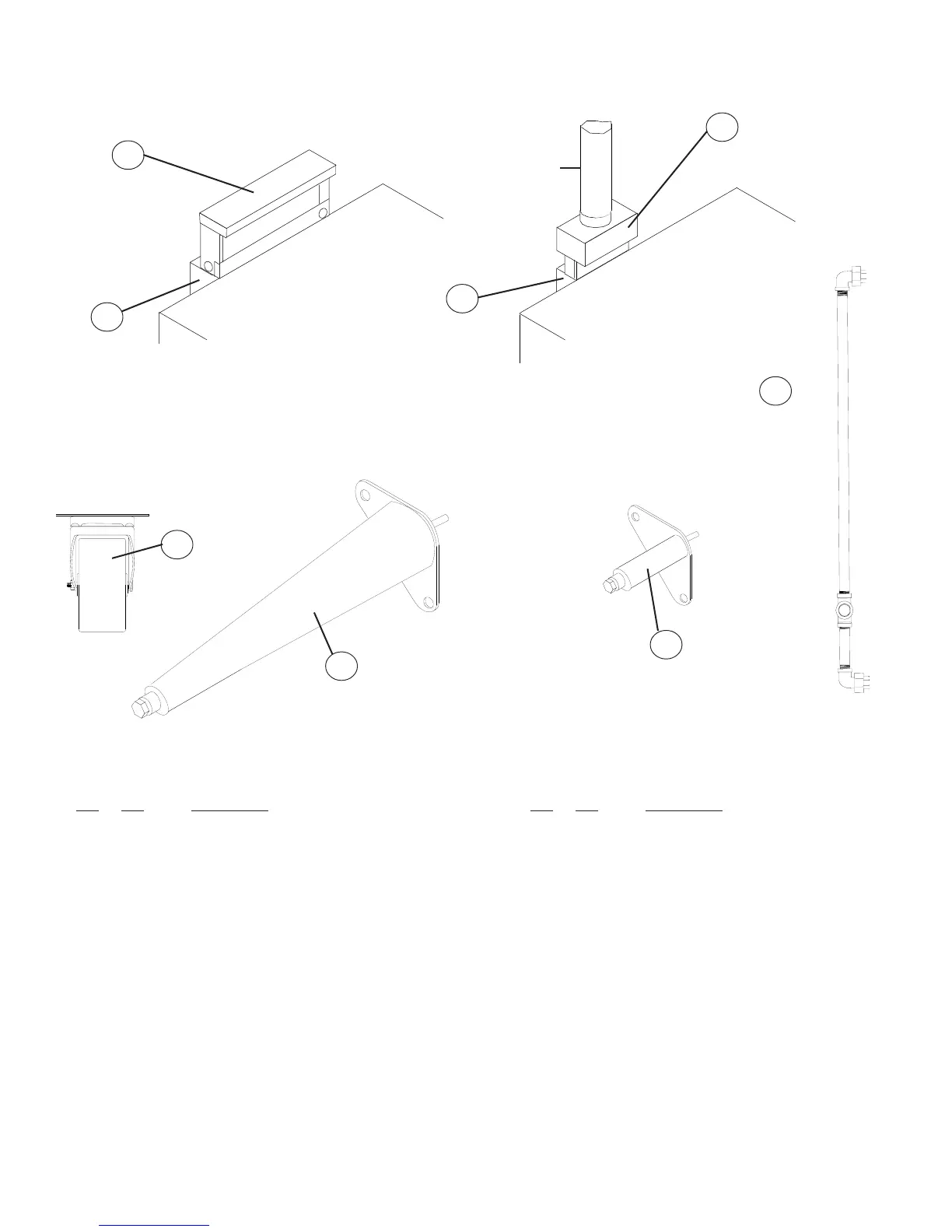

VIEW FROM
FRONT OF OVEN
VIEW FROM
FRONT OF OVEN
ACCESSORIES
Ref. Part
No. No. Description
1 7839 Drafthood Assy., Direct Vent, S/S (6" dia.)
DFG100, DFG100 Dbl & DFG200 Sgl
2 7840 Draft Diverter, Canopy Vent, S/S
DFG100, DFG100 Dbl & DFG200 Sgl
21108 Drafthood Assy., Direct Vent, S/S (8" dia.)
DFG200 Dbl
20447 Draft Diverter, Canopy Vent, S/S
DFG200 Dbl
3 21107 Flue Connector Assy, 3 Piece DFG200 Dbl
3 17486 Flue Connector Assy, 3 Piece DFG100 Dbl
3 17485 Flue Connector Assy, DFG-3 on DFG-1
3 17445 Flue Connector Assy, DFG-3 on GZL-10
3 17484 Flue Connector Assy, DFG-3 on FA-100
3 21104 Flue Box Single Oven DFG200
3 20443 Flue Box Single Oven DFG100
31803 Clips, Stacking Double Oven
7 35048 Backpipe Assy, Dbl (external gas manifold)
21826 Installation Hose 36"
21242 Installation Hose 48"
Ref. Part
No. No. Description
4 8600 Legs, 6" w/ Bolts, S/S Set of 4
5 8598 Legs, 25" w/ Bolts, S/S Set of 4
33196 Seismic Legs, 6", S/S Set of 4
92000 Studs, Leg Set of 4
7847 Bolts, Leg Set of 8
6 5779 Casters w/ Plate Set of 4 Dbl Oven
16002 Casters Set of 4 Sgl Oven Only
19528 Casters, Low Profile Set of 4 Dbl Oven
31013 Casters, Heavy Duty Low Profile
Set of 4 (Jarvis & Jarvis) Dbl Oven
6486 Open Stand w/ Feet, S/S DFG100
11416 Open Stand w/ Casters, S/S DFG100
21053 Open Stand w/ Feet, S/S DFG200
20878 Open Stand w/ Casters, S/S DFG200
16418 Lower Heat Collector
7840 or 20447
Draft Diverter Assy
(For Canopy Venting
Systems)
**See text for your
model
2
7839 or 21108
Drafthood Assy
(For Direct Venting Sysytems)
**See text for your model
1
Flue Box
(Sgl)
or
Flue Connector Assy
(Dbl)
See text for
part number
3
Flue Box
(Sgl)
or
Flue Connector Assy
(Dbl)
See text for
part number
3
8598
Legs, 25" Set of 4
5
8600
Legs, 6" Set of 4
4
5779
Casters, w/Plate
Set of 4
Dbl Ovens
6
35048
Backpipe Assy
Dbl Ovens
7
PIPING NOT INCL.
