Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 7 DFG-100/200
Ref. Part
No. No. Description
1 15934 Knob, Mode Selector Switch
and Potentiometer Cook Thermostat
2 18265 Indicator Light, Red, Round 28V
3 16686 Knob, 60 Minute Timer and Potentiometer Steam
4 18266 Indicator Light, 125V, Blue, Round
5 18868 Mode Selector Switch, 3 pos
6 18234 Potentiometer, Cook Thermostat
7 18225 Timer, 60 Minute Cook
8 18580 Switch & Block, Humidaire Momentary
9 18439 Potentiometer, Steam Duration Time
10 20349 Buzzer
11 18578 Controller, Temperature
16 18588 Probe, Temperature
12 18318 Timer, S.S. Steam Duration, 120V
13 20662 Plug Assy, Quick Disconnect 1 SP only
90047 Socket, Plug Assy 1 SP only
16326 Test Cord
14 20355 Transformer 115V to 24V
15 20348 Spark Box, Nat & LP
17 90034 Grounding Lug
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con)

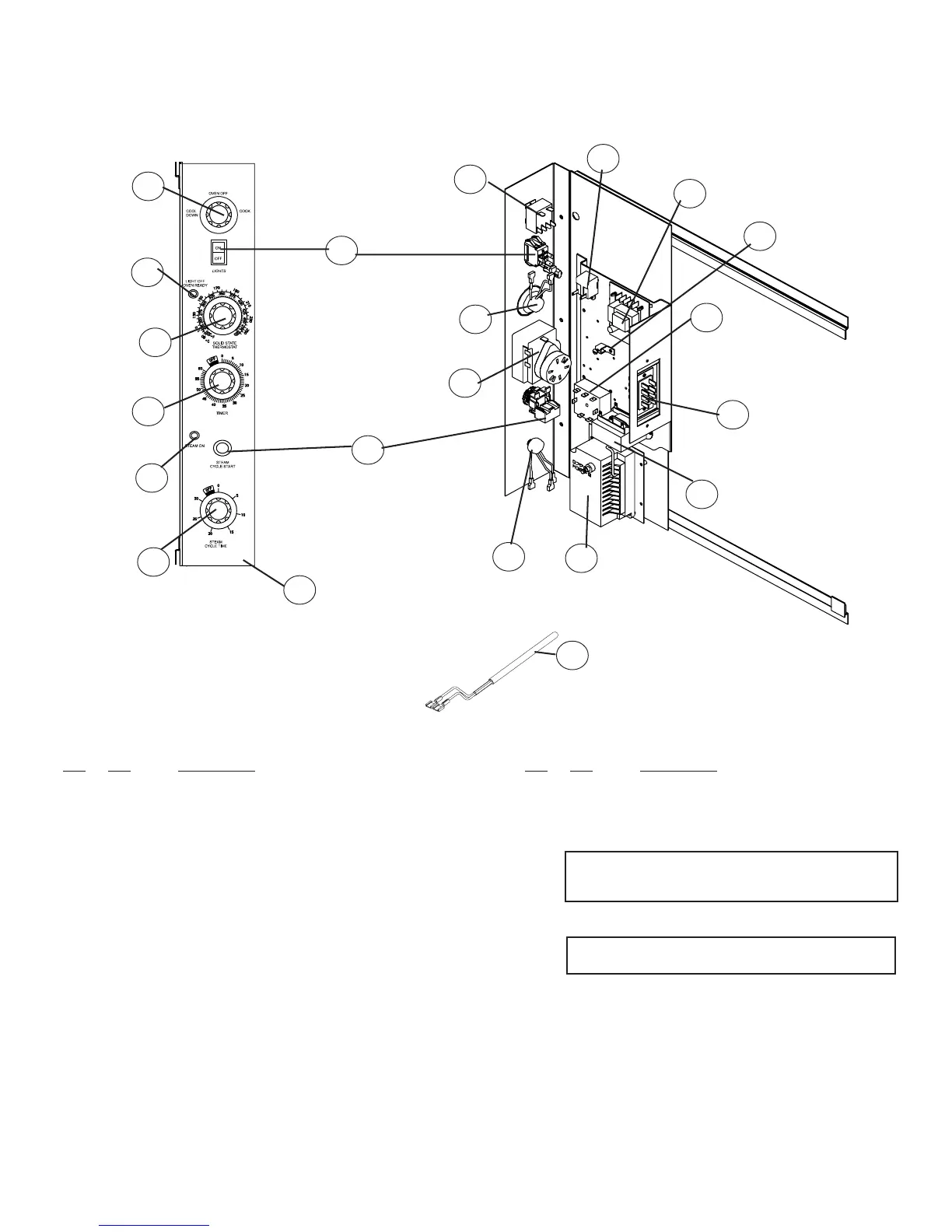

SOLID STATE INFINITE HUMIDAIRE CONTROLS 1 SP
15934
Knob, Mode
Selector Switch
1
18868
Mode
Selector Switch
5
6497
Switch, Rocker
4
18265
Indicator Light
2
15934
Knob,
Potentiometer,
Cook
1
16686
Knob, 60
Minute Timer
3
18266
Indicator Light
Blue, Steam
4
16686
Knob,
Potentiometer
Steam Cycle
3
18225
Timer ,
60 Minute
7
18580
Momentary
Switch &
Block
8
18439
Potentiometer,
Steam
Duration
9
18234
Potentiometer,
Cook
6
20349
Buzzer
10
18578
Controller,
Temperature
11
20662
Quick Disconnect
Plug Assy
1 SP only
13
20355
Transformer
14
20348
Spark Box
Nat & LP
15
18318
Timer,
Adjustable
Steam Duration 120V
12
18285
Control Panel,
Porcelain,
Infinite
16
Ref. Part
No. No. Description
18357 Wiring Harness, front for Infinite Cook
Thermostat
18366 Wiring Harness, front for steam injection
35103 Wiring Harness, rear for steam injection
NOTE: Units with the Humidaire features require
2 harnesses. One for the control circuit
and one for the Humidaire controls.
18362 Module Assy, Humidaire
17482 Harness, Rear Connecting
NOTE: Modules include EVERYTHING pictured
above, except probe
18300 Valve, water solenoid 120V
18310 Orifice, steam
18303 Thru pipe and nozzle assy
18588
Probe,
Temperature
16
90034
Grounding Lug
17
