Blodgett DFG-100 Replacement Parts List

OCTOBER 16, 2007 13 DFG-100/200
Ref. Part
No. No. Description
1 NLA Controller, Intellitouch
36735 Conversion to IQ2 Controller
20112 Filter, Intellitouch RFI
12 19254 Cover, for Controller 20780
13 20360 Probe, Temperature
2 15934 Knob, Mode Selector Switch
3 18868 Mode Selector Switch
4 20355 Transformer, 115V to 24V Qty 2
5 19341 Relay, SPDT, 24V
6 20530 Rocker Switch, Blower 3PDT Black 2 SP
7 6497 Rocker Switch, Lights SPST White
18934 Aluminum Spacer, for controller
9 90034 Grounding Lug
3574 Terminal Block, (Power- 4 screws)
30503 Terminal Block, (1/4" spade con.)
21134 Axial Fan, Low Velocity, 115V, 60 HZ Qty 2

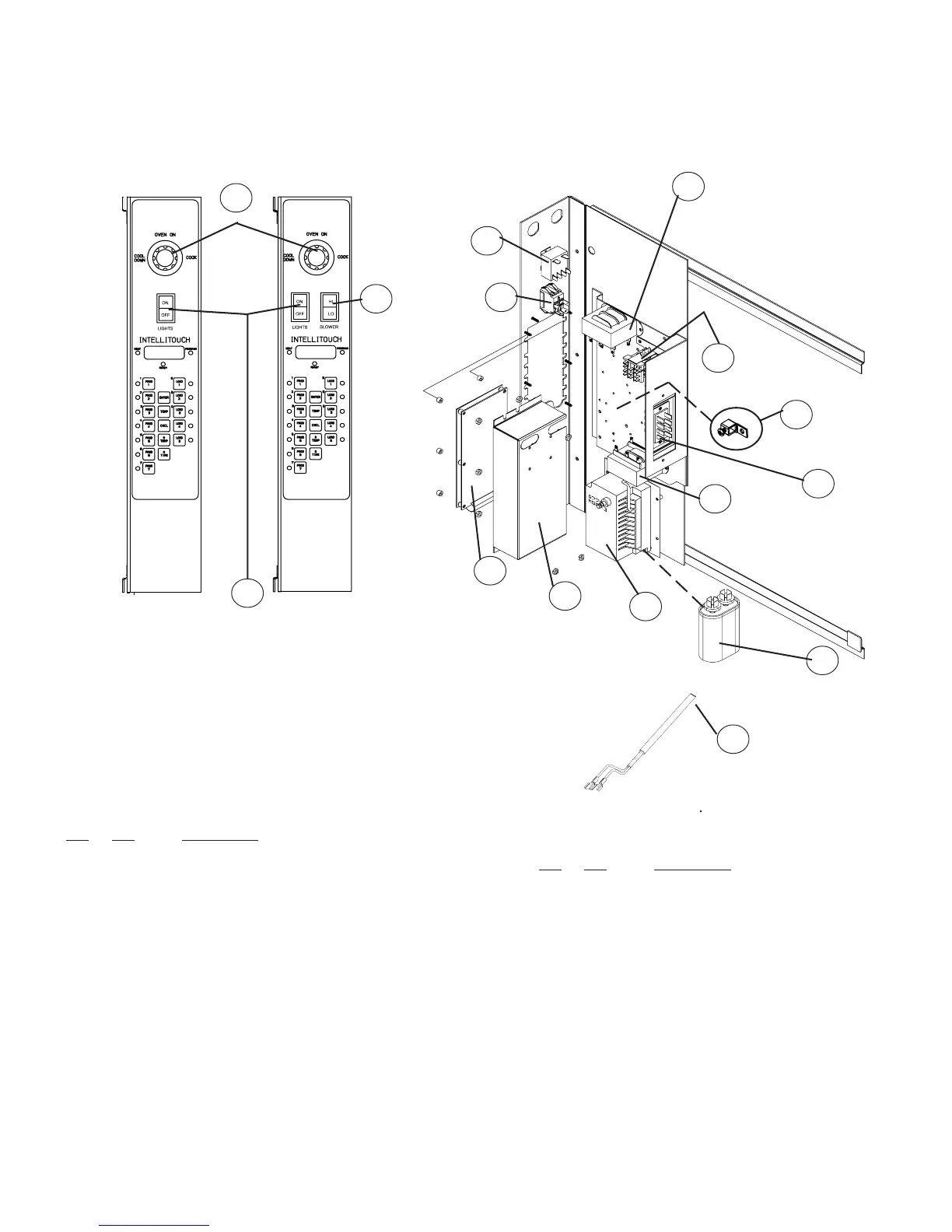

INTELLITOUCH CONTROLS - 1 & 2 SP
17 KEYS
15934
Knob
2
90034
Grounding Lug
9
18868
Mode Selector
Switch
3
6497
Switch, Rocker
White SPST
7
20355
Transformer
115V to 24V
4
19341
Relay, SPDT
24V
5
20662
Quick Disconnect
Plug Assy
10
20355
Transformer,
115V to 24V
4
20348
Spark Box
11
20780
Controller,
Intellitouch
1
20530
Switch,
Rocker
2 SP
6
6497
Switch,
Rocker
White SPST
7
19254
Cover,
Controller
12
23077
Capacitor,
Electrolytic
2 SP ONLY
8
1 SPEED 2 SPEED
20360
Probe,
Temperature
13
Ref. Part
No. No. Description
10 20662 Quick Disconnect, Plug Assy
90047 Socket, Quick Disconnect
16326 Test Cord
11 20348 Spark Box Nat & LP
8 23077 Capacitor, Electrolytic 2 SP ONLY
19462 Wiring Harness front 1 SP
20020 Wiring Harness front 2 SP
19588 Control Panel w/ Decal 1 SP
31699 Control Panel w/ Decal 2 SP
17482 Harness, Rear Connecting for Module 1 SP
20009 Harness, Rear Connecting for Module 2 SP

Blodgett DFG-100 Specifications

General

Brand	Blodgett
Model	DFG-100
Category	Convection Oven
Language	English
